7 Common operation of the web screens

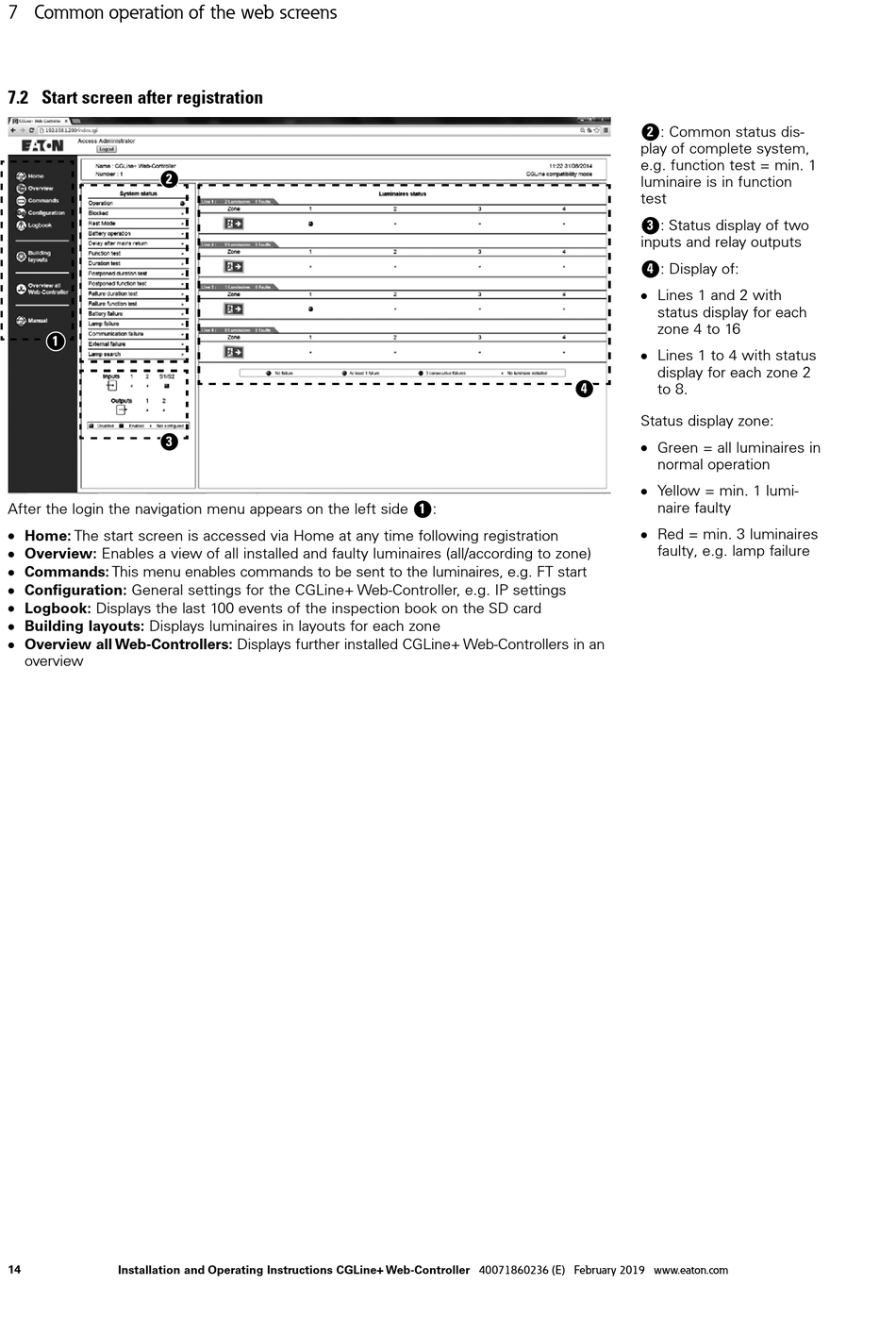

7.2 Start screen after registration
2
1
3
After the login the navigation menu appears on the left side
Home: The start screen is accessed via Home at any time following registration
O
O
Overview: Enables a view of all installed and faulty luminaires (all/according to zone)
O
O
Commands: This menu enables commands to be sent to the luminaires, e.g. FT start
O
O
Configuration: General settings for the CGLine+ Web-Controller, e.g. IP settings
O
O
Logbook: Displays the last 100 events of the inspection book on the SD card
O
O
Building layouts: Displays luminaires in layouts for each zone
O
O
Overview all Web-Controllers: Displays further installed CGLine+ Web-Controllers in an
O
O
overview
14
Installation and Operating Instructions CGLine+ Web-Controller 40071860236 (E) February 2019 www.eaton.com
4
:
1
2
: Common status dis-
play of complete system,
e.g. function test = min. 1
luminaire is in function
test
3
: Status display of two
inputs and relay outputs
4
: Display of:
Lines 1 and 2 with
O
O
status display for each
zone 4 to 16
Lines 1 to 4 with status
O
O
display for each zone 2
to 8.
Status display zone:
Green = all luminaires in
O
O
normal operation
Yellow = min. 1 lumi-
O
O
naire faulty
Red = min. 3 luminaires
O
O
faulty, e.g. lamp failure
