5 Installation

5.2.2 Push button functions

The CGLine+ Web-Controller has 3 push buttons on the
front plate:
3
Service button
The service pin enables a luminaire search for subse-
quently installed luminaires, thus saved luminaires will
not be deleted. Also possible via the service pin to start a
function test for luminaires on all lines.
Functional method:
Press the service pin > 1 sec. but < 3 sec.: function
O O
test started for all luminaires
Press the service pin > 6 sec.: „only new luminaires"
O O
search started

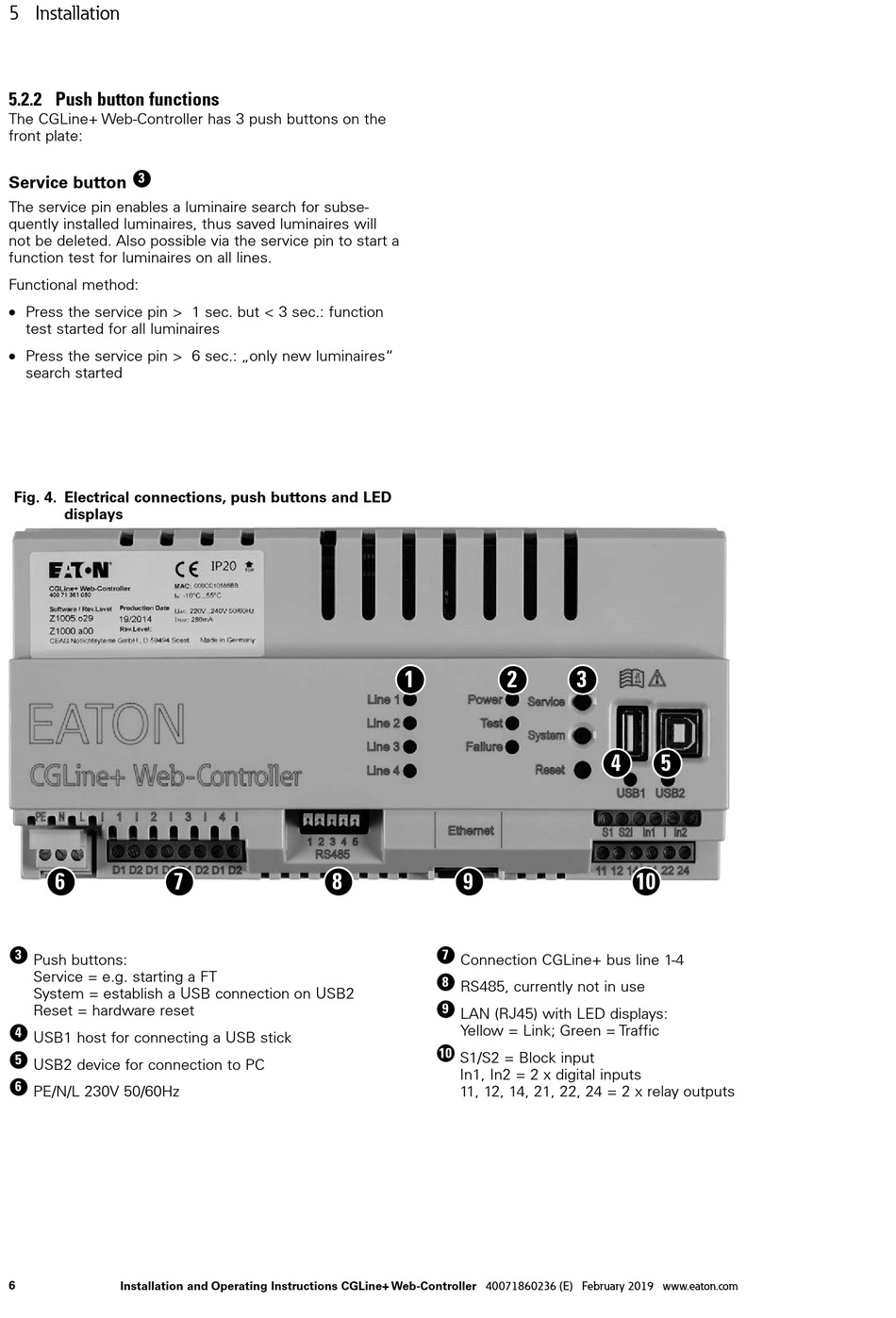

Fig . 4 . Electrical connections, push buttons and LED
displays
6 7
3
Push buttons:
Service = e.g. starting a FT
System = establish a USB connection on USB2
Reset = hardware reset
4
USB1 host for connecting a USB stick
5
USB2 device for connection to PC
6
PE/N/L 230V 50/60Hz
6
