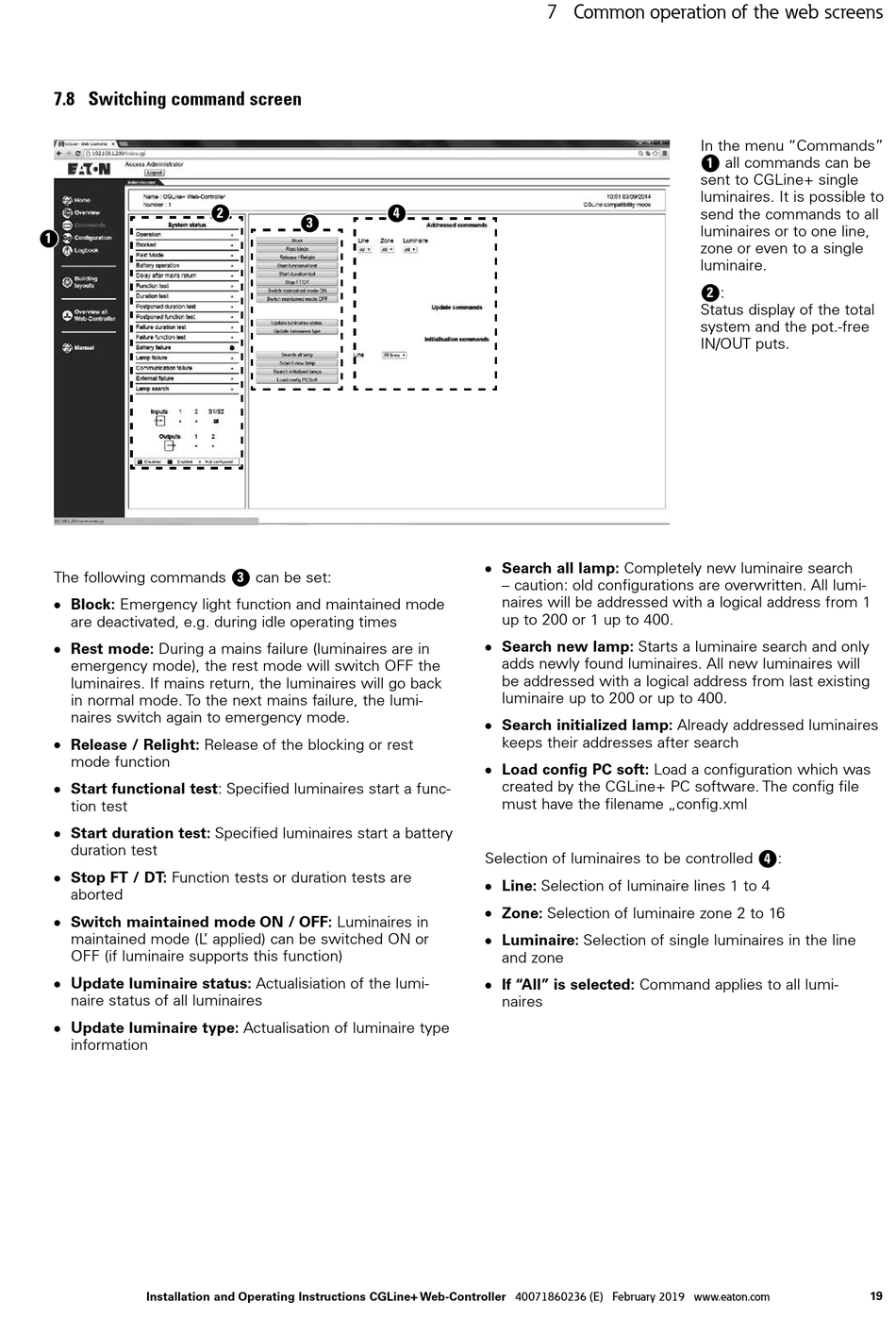

7.8 Switching command screen
1
The following commands
Block: Emergency light function and maintained mode
O
O
are deactivated, e.g. during idle operating times
Rest mode: During a mains failure (luminaires are in
O
O
emergency mode), the rest mode will switch OFF the
luminaires. If mains return, the luminaires will go back
in normal mode. To the next mains failure, the lumi-
naires switch again to emergency mode.
Release / Relight: Release of the blocking or rest
O
O
mode function
Start functional test: Specified luminaires start a func-
O
O
tion test
Start duration test: Specified luminaires start a battery
O
O
duration test
Stop FT / DT: Function tests or duration tests are
O
O
aborted
Switch maintained mode ON / OFF: Luminaires in
O
O
maintained mode (L ' applied) can be switched ON or
OFF (if luminaire supports this function)
Update luminaire status: Actualisiation of the lumi-
O
O
naire status of all luminaires
Update luminaire type: Actualisation of luminaire type
O
O
information
Installation and Operating Instructions CGLine+ Web-Controller 40071860236 (E) February 2019 www.eaton.com
2
3
can be set:
3
7 Common operation of the web screens
4
Search all lamp: Completely new luminaire search
O
O
– caution: old configurations are overwritten. All lumi-
naires will be addressed with a logical address from 1
up to 200 or 1 up to 400.
Search new lamp: Starts a luminaire search and only
O
O
adds newly found luminaires. All new luminaires will
be addressed with a logical address from last existing
luminaire up to 200 or up to 400.
Search initialized lamp: Already addressed luminaires
O
O
keeps their addresses after search
Load config PC soft: Load a configuration which was
O
O
created by the CGLine+ PC software. The config file
must have the filename „config.xml
Selection of luminaires to be controlled
Line: Selection of luminaire lines 1 to 4
O
O
Zone: Selection of luminaire zone 2 to 16
O
O
Luminaire: Selection of single luminaires in the line
O
O
and zone
If "All" is selected: Command applies to all lumi-
O
O
naires
In the menu "Commands"
1
all commands can be
sent to CGLine+ single
luminaires. It is possible to
send the commands to all
luminaires or to one line,
zone or even to a single
luminaire.
:
2
Status display of the total
system and the pot.-free
IN/OUT puts.
4
:
