Connections - Eaton CGLine+ Web Controller Installation And Operating Instructions Manual

3
System button
The system button enables the CGLine+ Web-Controller
to be connected to a PC. If pressed for ~ 3 seconds, the
green USB2 LED turns on and an external storage from
Windows will be detected. An access via PC software will
be possible now. To remove the controller the following
steps are required:
1. Remove external hard drive via windows
2. Press system button for 3 seconds, green USB2 LED
will turn off

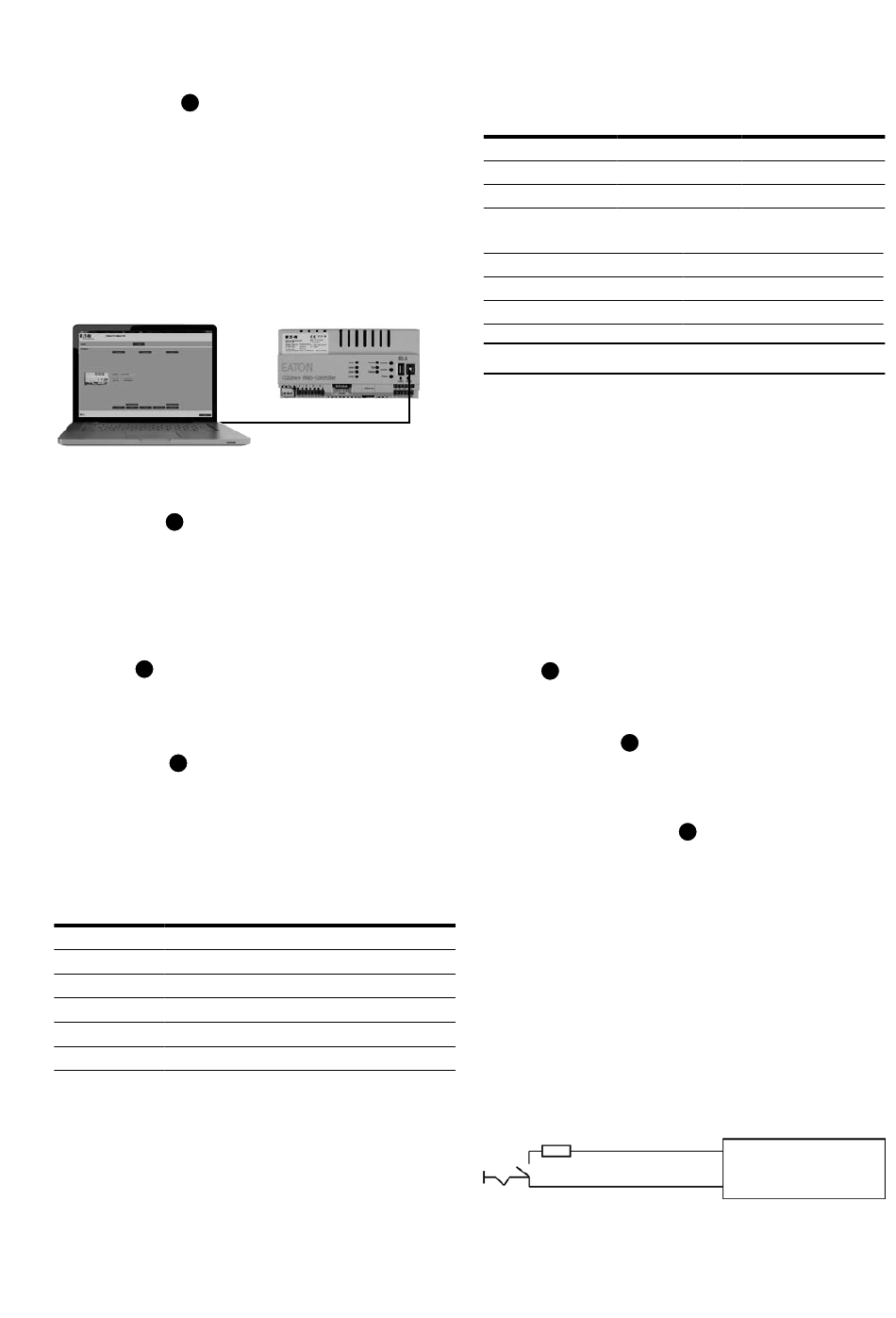

Fig . 3 . Connecting the controller to a laptop with
CGLine+ PC-Software via USB A-B
3
Reset button
The reset button resets the CGLine+ Web-Controller (not
factory default). For this purpose, the button must be
pressed and held for >1 second.

5.2.3 Connections

6
230 V/AC
Connection terminals for power supply 230 V/ AC with
50/60 Hz.
7
CGLine+ Bus:
The Web-Controller is compatible to the old CGLine
technlogy. If one or more CGLine luminaires are con-
nected, the CGLine compatible mode is active. Following
luminaires can be connected:
Table 2 . Max . number of luminaires to be connected
Line No. CGLine
1 100
2 100
3 100
4 100
Total 400
Polarity D1/D2 to the luminaires must not be observed.
Cable routing for CGLine bus: 2-core bus line, unshielded,
free bus topology possible.
Installation and Operating Instructions CGLine+ Web-Controller 40071860236 (E) February 2019 www.eaton.com
USB2
USB cable A-B
CGLine+
4 lines 2 lines
200 400
200 400
200 -
200 -
800 800
Table 3 . Cable length/line
Cross-section Length
0.5 qmm 260 m
1.0 qmm 520 m
1.5 qmm 800 m
Table 4 . Electrical data/line
Power supply bus
Max. permissible voltage drop
Bus current
In case of a communication failure with a luminaire please
check the following:
1. Check the proper connection of the bus line at the lumi-
naire's connector
2. Check the correct bus voltage at the luminaire (see
table 4.)
3. In case the voltage is correct and the communication
failure still exists: Check the bus line resistance which
shouldn't exceed 32 Ohm. For that please disconnect
the relevant line from the web-controller, apply a short
cut between the bus contacts at the affected luminaire
and measure the resistance at the other end of the line.
8
RS485
No function. Only for french market.
9
LAN connection
Ethernet connection via RJ45 socket. A LAN patch cable
must be used for direct connection of a PC/notebook.
Blocking input (S1/S2):
All connected luminaires can be blocked via the blocking
input, meaning the luminaires are switched off and the
emergency light function deactivated, for example for idle
operating times.
Connection is via a key switch or relay (e.g. alarm sys-
tem). To guarantee reliable operation from short-circuit
or interruption of the blocking line, this input is equipped
with differential loop monitoring (static current), meaning
a 1kOhm resistance must be integrated for blocking that
defines the static current.
Connection example:
With closer contact
1 kOhm
Resistor must be connected next to the switch.
5 Installation
Total lines
660 m
1320 m
2000 m
25 V
6 V
300 mA
NOTE
10
S1 CGLine
S2 Interface
7
