In this figure, the components R101, R102, C101 and C102 is used for antenna matching, the components'
value can only be got after the antenna tuning. Usually, matching components' value is provided by antenna
vendor, and the default value of R101 and R102are 0Ω .Reserve the place of C101 and C102, they are used
for tuning. The component D101 is a bidirectional TVS component, which is used for ESD protection. The
recommended part numbers of the TVS are listed in the following table:
Table 19: TVS part number list
Package
0201
0402
The RF test connector in figure 37 shown above is used for conducted RF performance test, and should be
placed as close as possible to the module's RF_ANT pin. The traces in bold type should be 50Ω impedance
controlled line in PCB layout.
5

ELECTRICAL, RELIABILITY AND RADIO CHARACTERISTICS

5.1 ABSOLUTE MAXIMUM RATINGS

The absolute maximum ratings stated in following table are stress ratings under non-operating conditions.
Stresses beyond any of these limits will cause permanent damage to SIM5300E.
SIM5300E_Hardware_Design_V1.02
MODULE
RF test connector
GND 59
RF_ANT
60
GND 61

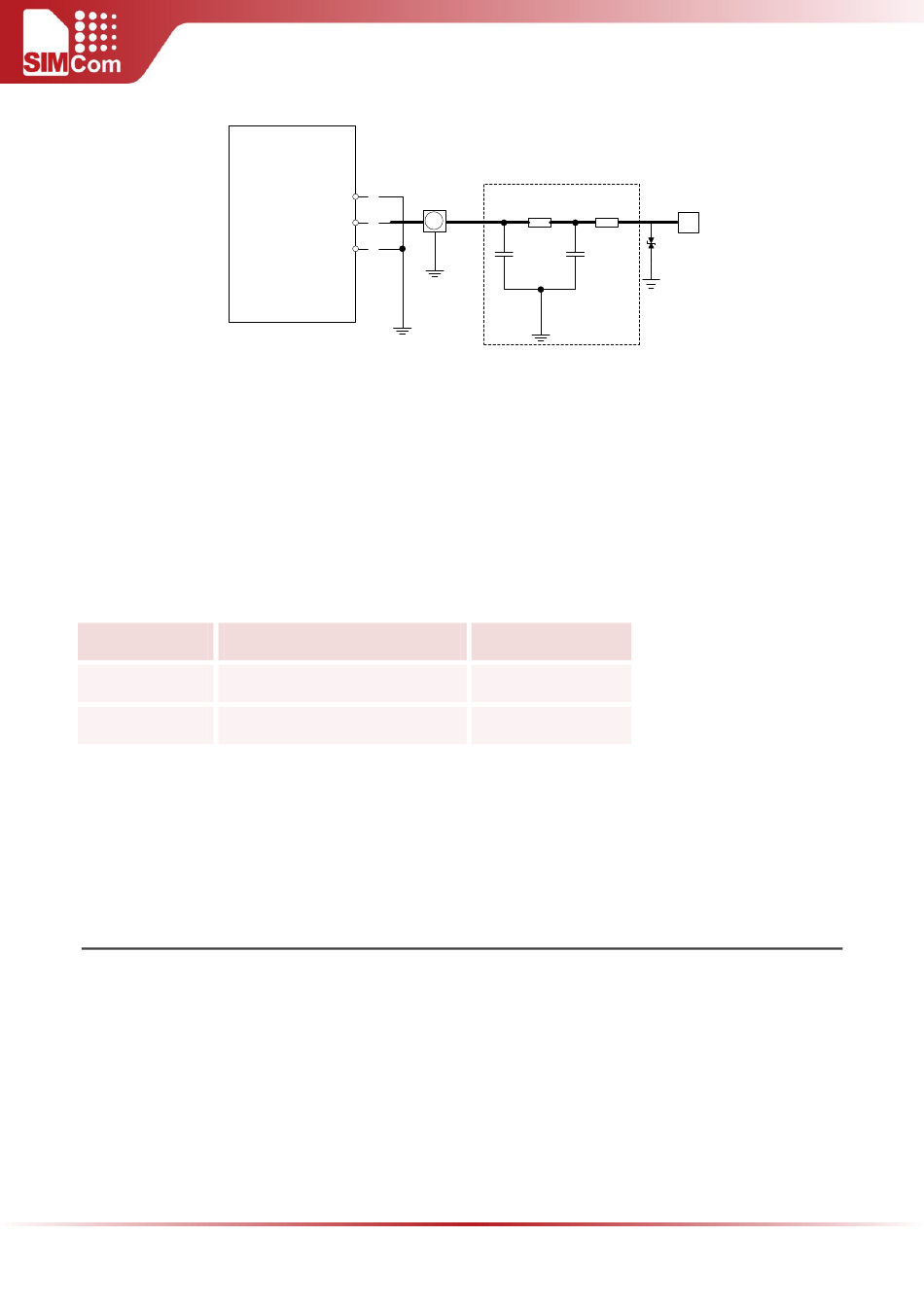

Figure 38: Antenna matching circuit
Type
LXES03AAA1-154
LXES15AAA1-153
Matching circuit Antenna feed pad
R101 R102
D101
C101 C102
TVS
Supplier
Murata
Murata
J101
