Please make sure you have all the parts indicated below prior to assembly.
This unit is heavy and can best be assembled with the help of two or more people.
A
E
Assembly steps:
1. Place the top (A) upside down on a soft surface.
2. Attach the post (B) to the top (A),
by turning with Allen Wrench (H) in a clockwise direction (see diagram 1)
3. Install other posts in the same way as step 2.
4. Put the shelf (C) on the posts.
5. Insert bolt (I) into the post (B) through the shelf (C), attach the foot (D) to the bolt (I), secure by turning
in a clockwise direction.
6. Attach the other feet in the same way as step 5.
7. Turn the table upright, make sure the drawer will not come out when turning.
Cleaning Instruction: Clean finished parts with a damp cloth using a mild dishwashing liquid and
water solution. Polish the finish with soft cloth and an industry recognized furniture polish.
ASSEMBLY INSTRUCTION

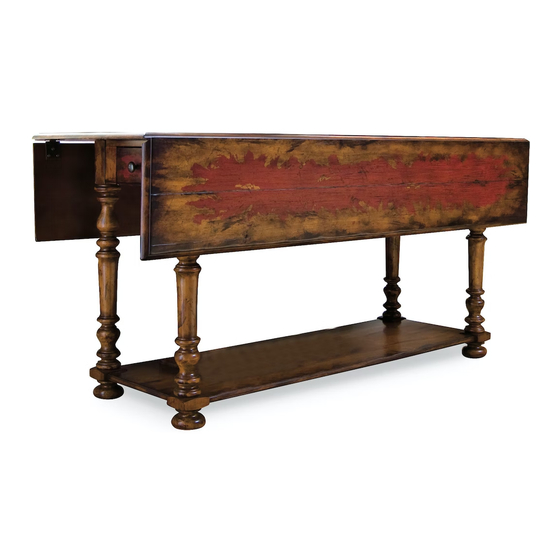

Item#: 978-50-001 Drop Leaf Console Table
B
H
F
G
using2 lock washers (E), 2 flat washers (F), 2 bolts (G),secure
NO .
E
F
G
H
I
D
I
A
HARDWARE LIST
LOCK WASHER
FLAT WASHER
55MM BOLT
ALLEN WRENCH
80MM BOLT
C
Q'TY
8
8
8
1
4
