Ayra ALO 019 User Manual

Dual led scanner
Hide thumbs Also See for ALO 019:
Table of Contents

Advertisement

Quick Links

Dual LED scanner
User manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALO 019 and is the answer not in the manual?

Questions and answers

Related Manuals for Ayra ALO 019

Summary of Contents for Ayra ALO 019

  • Page 1 Dual LED scanner User manual...

  • Page 2: Safety Precautions

    WARNING: Do not look directly into the beam from a short distance. This may cause serious injury to the eyes. Ayra is not responsible for any injuries caused by incorrect use of this device. Installation requirements: - Always check the power supply to which you want to connect the device. If the voltage requirements do not meet, do not connect the device as this may cause serious damage.

  • Page 3: Box Contents

    Box contents Box contents 1x ALO 019 fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 4: Device Overview

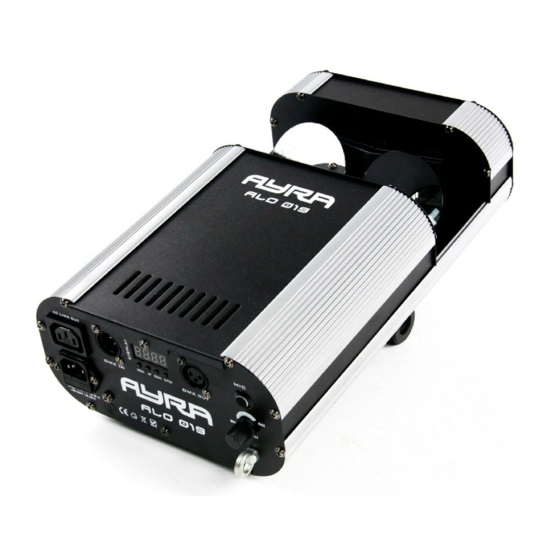

    Device overview 1. Moving mirrors 2. Adjustable bracket 3. IEC Power inlet with integrated fuse holder 4. DMX dipswitch 5. Built-in microphone for sound active mode 6. Microphone sensitivity 7. DMX input (3P XLR) 8. DMX output (3P XLR) 9. Ventilation slot 10.

  • Page 5: Setting Up The Unit

    Master/slave mode: It is possible to connect several ALO 019 fixtures with standard XLR – XLR cables, without the use of a DMX-controller. In this mode, the first fixture in the chain will perform as master (in the automatic or music controlled mode).

  • Page 7: Installation And Maintenance

    The lenses can be cleaned with a non-aggressive glass cleaning solution, but is not recommended. Ayra recommends to clean the mirror and lens with a fine brush, while removing dust and/or dirt with a vacuum cleaner. Avoid touching the lenses with your bare fingers, to prevent fingerprints on the optics.
  • Page 8 dents and strength. - Electrical components (connectors and cables) must be in optimal condition. Any form of damage (cuts, exposed wire cores or any other visual deformities should not be present. If any visual or mechanical damage is detected, contact your local dealer or a specialized technician. Do not use a damaged or failing fixture.

  • Page 9: Technical Specifications

    Technical specifications - compact dual LED scanner - 128 x 5mm LEDs - 64 red, 40 green, 24 blue LEDs, spread over 2 clusters - each lens/mirror combination has its own LED cluster - high power output thanks to lens optics - sound-activated working mode, built-in microphone with adjustable sensitivity - patterns adjustable for each lens - mirror movement adjustable for each lens...
