Summary of Contents for ACS ALERT J4X

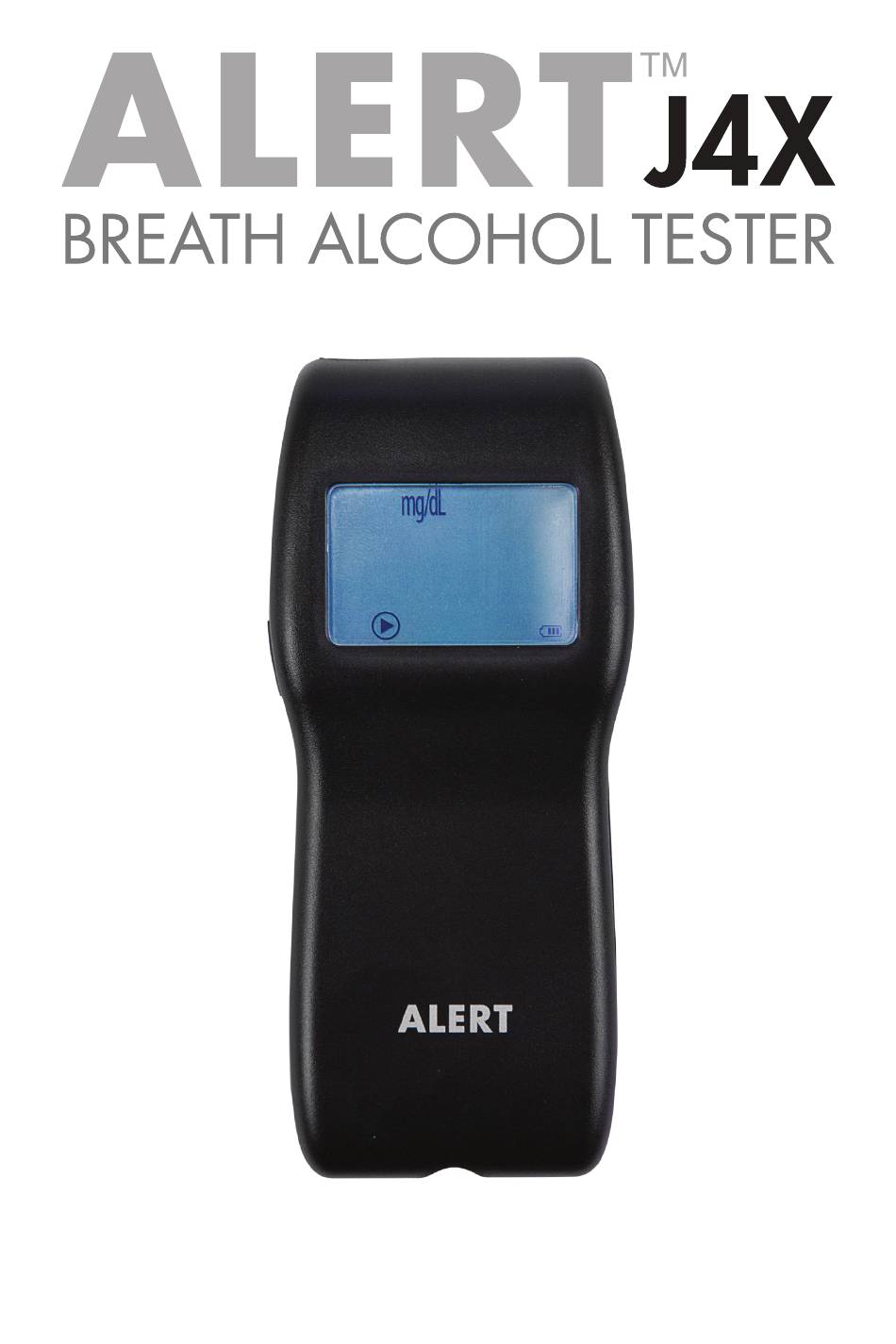

- Page 1 Calibration manual...
- Page 2 F +1 416 619 3501 info@acs-corp.com acs-corp.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOSIM, ALERT and the “Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems (International) Inc.

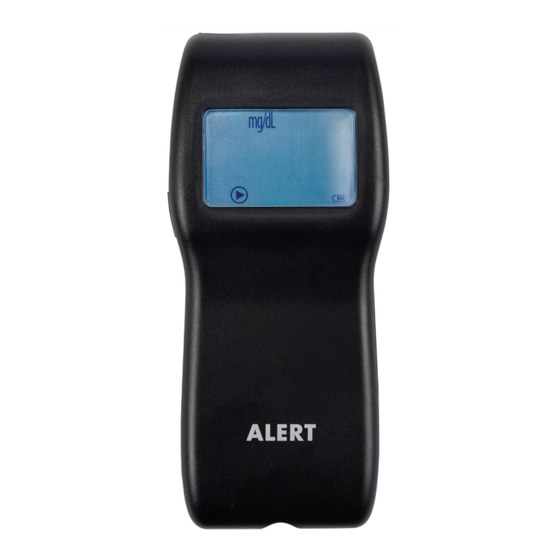

- Page 3 ALERT J4X HANDSET COMPONENTS Mouthpiece Display One-button operation adapter Mouthpiece insertion into sampling port Plastic tab Battery cover...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safety and precautions ....................1 General........................1 Compressed gas safety................... 1 ALCOSIM setup, usage and disassembly ............... 1 Alcohol reference solution ..................2 Cleaning the ALCOSIM breath alcohol simulator ............ 3 Calibration types ......................3 Icons ..........................3 Gas standard calibration ..................... -
Page 5: Safety And Precautions
The ALCOSIM breath alcohol simulator is intended for authorized technicians only • Use the ALCOSIM simulator for its intended purpose only • Use parts specified by ACS only • Before use, check that the simulator power supply rating (24Vdc, 2.5A) conforms to local supply ratings •... -
Page 6: Alcohol Reference Solution
Keep solution away from eyes • If solution comes in contact with eyes, flush eyes with water; if irritation continues, contact your local poison control centre • Refer to your local environmental regulations for more information about safe solution-disposal amounts ALERT J4X... -
Page 7: Cleaning The Alcosim Breath Alcohol Simulator
Wash the solution container with plain water and dry with paper towel CALIBRATION TYPES There are 2 methods of calibration for the ALERT J4X breath alcohol tester: • Gas Standard, which uses a gas standard cylinder. See “Gas Standard Calibration”... -
Page 8: Gas Standard Calibration
Remove the protective cap of the canister and screw on the regulator valve assembly. Attach the delivery tubing to the regulator valve. Press the power button to turn on the ALERT J4X tester. CAL is displayed when the tester is overdue for a calibration. Press the power button quickly in this sequence: (CLICK) –... - Page 9 Press the power button twice in quick succession to change the calibration method. drY is displayed. mg/dL Press and hold the power button until 000 is displayed. Input the altitude by pressing the power button twice to scroll through the digits. Once the digits blink, increase the altitude by pressing the power button.
-
Page 10: Alcohol Reference Standard (Ars) Calibration
- ALCOSIM breath alcohol simulator ACS #79-007600 - AC power cord: Part number depends on your region - Power supply (24Vdc, 2.5A) ACS #07-000075 - 1.5 feet of vinyl tubing ACS #70-000002 - Square mouthpiece ACS #95-000121 - Round mouthpiece ACS #95-000250... -
Page 11: Alcosim Breath Alcohol Simulator - Overview
ALCOSIM BREATH ALCOHOL SIMULATOR – OVERVIEW At least 2 ALCOSIM simulators must be used to properly calibrate the ALERT J4X. PARTS DIAGRAM Optional thermometer port Communication port 24V power input Top housing Solution container BACK CALIBRATION MANUAL... -
Page 12: Kit Connection Diagram
2 bottles of 100 mg% solution must be used to properly calibrate the ALERT J4X. • Supplied in 500 mL tamper-sealed bottles • Premixed and ready for immediate use with the ALCOSIM simulator For availability, pricing and ordering, contact your local authorized service provider or visit acs-corp.com. ALERT J4X... -
Page 13: Alcosim Setup And Operation Steps
ALCOSIM SETUP AND OPERATION STEPS With both ALCOSIM breath alcohol simulators power disconnected, turn the top housings counter clockwise and detach them from each container. Add the entire contents of each 500 mL bottle of 100 mg% alcohol reference solution into each ALCOSIM solution container. Each bottle contains the exact liquid volume required for calibration, which is also marked on each ALCOSIM container. -
Page 14: Ars Calibration Process
ARS CALIBRATION PROCESS Press the power button to turn on the ALERT J4X breath alcohol tester. CAL is displayed when the tester is overdue for a calibration. Press the power button quickly in this sequence: (CLICK) – (CLICK) – (PRESS AND HOLD UNTIL IT FLASHES) The backlight flashes blue;... -
Page 15: Troubleshooting
• All connections to and from the gas valve are not secured properly ERROR TABLE The ALERT J4X screen will display an error message if the calibration fails. CAL Fact too Lo The calibration was not successful. CAL Fact too Hi The calibration was not successful. - Page 16 CAM-ENG-60-000613-C © 2013 - 2016...
