Summary of Contents for ACS ALCOSIM
- Page 1 Instruction manual...
- Page 2 F +1 416 619 3501 info@acs-corp.com acs-corp.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOSIM and the “Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is trading style of Alcohol Countermeasure Systems (International) Inc.
-
Page 3: Table Of Contents
Product features ..................... 1 Technical specifications .................. 1 Limited warranty ..................... 1 Assistance ...................... 2 ALCOSIM breath alcohol simulator - Overview ..........2 Safety and precautions ..................3 ALCOSIM setup, usage and disassembly ............. 3 Alcohol reference solution ................4 Cleaning the ALCOSIM breath alcohol simulator ........... -
Page 4: Introduction
All ACS products are warranted to be free of defects in workmanship and materials for a period of one year from the date of shipment. ACS agrees to replace or repair any defective device, provided the defect was not caused by misuse or mishandling. -
Page 5: Assistance

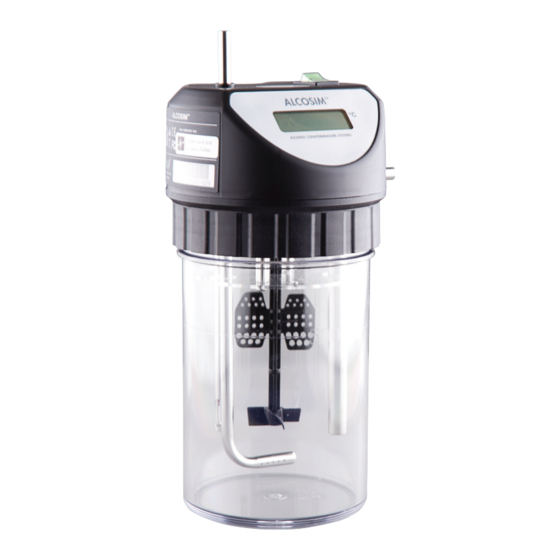

For assistance, contact your local authorized service provider or visit acs-corp.com. ALCOSIM BREATH ALCOHOL SIMULATOR - OVERVIEW The ALCOSIM simulator is used by technicians to calibrate and verify breath alcohol testing devices. The simulator is a wet-bath calibration / verification device. -
Page 6: Safety And Precautions
• CAUTION! Hot surface – avoid contact with the heating element • Place the ALCOSIM simulator on a flat surface, free from obstruction • Do not expose the simulator to direct sunlight for extended periods of time • Do not use the simulator with any toxic or flammable liquids, or in explosive atmospheres •... -
Page 7: Alcohol Reference Solution
• Disconnect the ALCOSIM breath alcohol simulator power before cleaning • CAUTION! After disconnecting the ALCOSIM simulator power, allow 10 to 15 minutes for the heating element to cool off before detaching the top housing • Do not submerge the top housing in water •... -
Page 8: Calibration Materials
CALIBRATION MATERIALS • Alcohol Reference Solution, available in concentrations from 10 to 170 mg/dL. • ALCOSIM kit (includes ALCOSIM simulator and all accessories): • Australian kit ACS 94-001200 • UK kit ACS 94-001210 • European kit ACS 90-001220 • North American kit ACS 94-001230 •... -
Page 9: Alcosim Setup And Operation Steps
Solution heat-up takes about 10 minutes. When 34 ºC ± 0.02 ºC is displayed, the simulator is ready to provide a breath sample. 8. Use the ALCOSIM simulator to blow air into the breath alcohol tester that you are calibrating. There are two ways of doing this: •... -
Page 10: Troubleshooting
TROUBLESHOOTING The following table lists error codes that may appear on the screen of the ALCOSIM simulator. The error codes are accompanied by a periodic beep. ERROR CODE DESCRIPTION WHAT TO DO Switch off the ALCOSIM simulator, Er 11 Motor malfunction. -
Page 11: Index
INDEX Alcohol Reference Solution, 4, 5 ALCOSIM simulator Parts, 2 Product features, 1 Setup and operations, 6 Assistance, 2 Calibration materials, 5 Error codes, 7 Safety and precautions, 3 Troubleshooting, 7 INSTRUCTION MANUAL... - Page 12 IRM-ENG-60-000180-I © 2012 - 2014...
