- Page 2 © Alcohol Countermeasure Systems Corp. The information disclosed in this document is the valuable property of Alcohol Countermeasure Systems Corp. and all copyright and other proprietary rights to this document are reserved. No reproduction of this document is permitted without the prior written consent of Alcohol Countermeasure Systems Corp.
-
Page 3: Safety And Precautions
Warranty All ACS products are warranted to be free of defects in workmanship and materials for a period of one year from the date of shipment. ACS agrees to replace or repair any defective V3, provided the defect was not caused by misuse or mishandling. -
Page 5: Table Of Contents
TABLE OF CONTENTS Safety and Precautions .............. iii Warranty ................iii Maintenance ................iii Contact Information ..............iii INTRODUCTION What is an Alcohol Interlock? ............ 1 How does it work? ..............1 Installation ................1 More information ..............2 Alcohol Influence on Testing ........... 2 Operating Temperature ............ - Page 6 Servicing the Vehicle .............. 13 Calibration ................13 Troubleshooting Table ............. 14 Display Messages ..............15 Disposal of Unit at End of Service Life ........18 Replacement Parts ..............18 Index Service Record V3 User Guide...
-
Page 7: Introduction

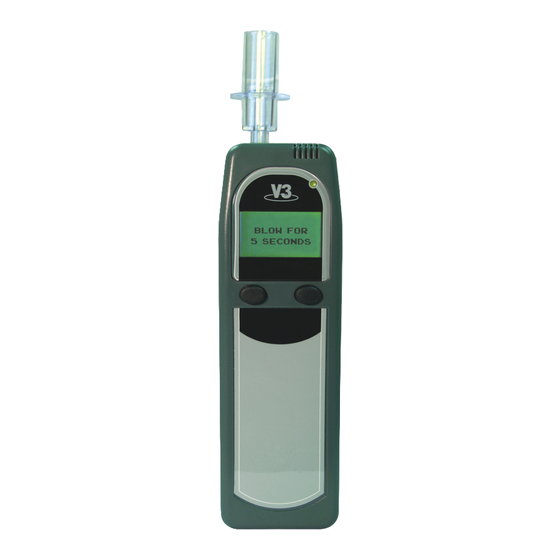

INTRO DU CTION What is an Alcohol Interlock? An alcohol interlock is an in-vehicle breath alcohol testing instrument. It prevents a vehicle from starting if it detects that a driver’s breath alcohol concentration (BrAC) is over a preset limit. It is designed to fit inside the vehicle, near the driver’s seat, and connects directly to the vehicle’s ignition system. -
Page 8: More Information
More information Alcohol Influence on Testing Drinking alcohol and eating foods containing alcohol will cause a failed alcohol test. Some other factors that may affect a test (because they may contain or produce residual alcohol in the mouth) are medicines, drops, burping, smoking, using mouthwash or mouth spray. -
Page 9: Using The Interlock
USING TH E INTER LOCK Starting the motor 1. Turn the handset power on by pressing the right button. The Wait message is displayed during warm-up. Alternatively, the power can be turned on by switching the ignition key on and off. Note: The key must be in the OFF position before moving on. - Page 10 6. The handset beeps and displays the result: Start Motor The breath test passed and no alcohol is detected. You may start the motor. Note! The motor must be started within minutes. Caution The breath test passed, but alcohol below the limit has been detected.
-
Page 11: Restarting The Motor
Restarting the motor If the motor is turned off for less than 5* (or 30) minutes (time depends on the settings of the interlock), it can be restarted without providing another breath test. This is a safety feature if the motor stalls, or convenient for frequent short stops. -
Page 12: Running Retests (Optional)
Running retests (optional) Additional breath tests can be required at random intervals to ensure the driver has not consumed alcohol since the motor has been started. 1. The handset beeps and displays Retest. Do not provide a breath test while the vehicle is in motion. -
Page 13: Sharing A Vehicle
Sharing a vehicle Drivers with their own handset can operate the same vehicle without reprogramming V3. All the custom settings are downloaded into the ECU when a new handset is connected. The handset can be changed with the motor on or off. It is recommended to exchange handsets when the motor is off and the vehicle is parked at a safe location. -
Page 14: Overriding The Interlock
Overriding the Interlock In emergency situations, the ignition interlock can be overridden using a four-digit Override Code provided by your dealer. This code is randomly generated and changes daily. The use of the override function is stored in the log. 1. -
Page 15: Menu Options
MENU O PTI ONS V3 has a number of menus and customizable options, such as language selection, time adjustment, sleep and wake-up time settings. All are found in the Main Menu, which is accessed by pressing and holding the left button. Dates The current clock date and time, calibration dates, lockout date and service date are found in this... -
Page 16: Volume Set
Volume Set The handset uses audio tones. The volume of the tones is set from the Main Menu. Note! The volume setting is for the handset only. The volume of the ECU cannot be set. 1. Press and hold the left button to access the Main Menu. Press the left button to scroll to Volume. -
Page 17: Sleep Mode
Sleep Mode The handset can be put into sleep mode manually or automatically when the ignition is off. This conserves the handset battery. To put the handset into sleep mode manually, press and hold both buttons. To put the handset into sleep mode automatically: 1. -
Page 18: Language Selection
Language Selection The V3 is available in multiple languages. The selections are made at the time of order and programmed at the factory. For more information on the additional languages that are available, contact your dealer. 1. Press and hold the left button to access the Main Menu. Press the left button to scroll to Language. -
Page 19: Maintenance & Troubleshooting
MAI NTENA NCE & TROUB LESHO OTING Accessing maintenance functions V3’s system maintenance functions can only be accessed by your dealer using a System Code provided from ACS. This code is randomly generated and changes daily. The use of this function is stored in the log. -
Page 20: Troubleshooting Table
Troubleshooting Table The following table lists basic problems that may occur, along with their solutions. For other problems, contact your dealer. If V3... You should... Will not turn on Check the vehicle battery Displays an error code Refer to the table of messages on the next page Aborts a breath test Retry the test, or investigate the Abort code... -
Page 21: Display Messages
Display Messages V3 may not accept a breath test and could display error messages instead. To minimize errors, make sure that the handset is connected properly, the vehicle’s battery is in good condition, and that mobile phones are not in use during breath tests. The following is a list of messages (including error messages) that the handset may display: Display Description... - Page 22 Display Description What to do Messages Clock Error The internal clock cir- Contact your dealer. cuit has failed. The handset will still oper- ate correctly, but the time and date informa- tion will be incorrect. Communication The handset and ECU Contact your dealer.
- Page 23 Display Description What to do Messages Service The service period has Contact your dealer to have expired. You may be your vehicle serviced. Required * able to start your motor, or your motor may be blocked from starting, this depends on your unit’s settings.
-
Page 24: Disposal Of Unit At End Of Service Life
• Asking a suitable disposal contractor to dispose of the interlock. Replacement Parts Contact your dealer for the following parts: • Mouthpieces (Bag of 25), ACS Part Number: 95-000140 V3 User Guide... - Page 25 IND EX Accuracy Main Menu Alcohol influence Maintenance Alcohol interlock Options Battery voltage Override code Blowing Relay Module Calibration Replacement parts Caution Restart Clock Contact Information Running retests Customizing options Service Dates Record Sharing a vehicle Dealer code Sleep mode Disposal of unit Stall Protect Starting the vehicle...
- Page 26 Warranty Repairs Website V3 User Guide...
- Page 27 S E R V I C E R E C O R D Date Service Performed Initial...
- Page 28 UG-US-60-000129-A © 2010...
