ULTRASONIC TESTER
UK1401
OPERATION MANUAL
Acoustic Control Systems, Ltd.
Moscow 2015

Advertisement

Table of Contents
loading

Related Manuals for ACS UK1401

Summary of Contents for ACS UK1401

  • Page 1 ULTRASONIC TESTER UK1401 OPERATION MANUAL Acoustic Control Systems, Ltd. Moscow 2015...
  • Page 3 12.3. RESULTS REVIEWING WITH LISTING CELL NUMBERS IN THE CURRENT GROUPS 12.4. RESULTS CORRECTION 12.5. MEMORY CLEARING DATA OUTPUT TO 13.1. ADJUSTMENT OF THE INFRARED PORT 13.2. INSTALLATION OF THE PROGRAM FOR DATA TRANSMISSION FROM UK1401 TO THE PC 13.3. DATA TRANSFER FROM UK1401 13.4. LICENSE AGREEMENT 13.5. LIMITED WARRANTY WARRANTY ON THE PRODUCT INSTRUCTIONS ON TESTING THE CONCRETE’S SOLIDITY IN MONOLITHIC...

  • Page 4: Operation Principle

    MATERIALS, M/S 1. OPERATION PRINCIPLE UK1401 ultrasonic tester is applicable for measurement of ultrasound velocity and time of longitudinal ultrasound waves dispersion in solid materials at surface sounding testing method, when the purpose of testing is to detect and estimate the solidity and homogeneity of material and structures.

  • Page 5: Set And Replacement Of The Batteries

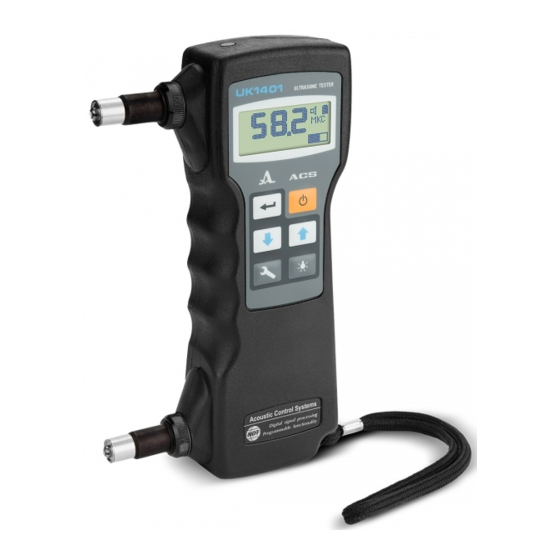

    Ultrasonic tester UK1401 physic and mechanical characteristics and physical statement. 1. Two ultrasonic probes with dry point contact (DPC) 2. Electronic module in the rectangular plastic case 3. 6-key film keyboard 4. LCD screen with backlight for work in darkness 5.

  • Page 6: Maintenance

    Ultrasonic tester UK1401 Check the adjustments. If it is necessary, correct meaning hardware delay time and distances between probes (value take from passport). With the help of these keyboard combinations delay time distances between probes are carried out. If the contrast of the screen is unsatisfactory, it can be adjusted with these keys combinations.

  • Page 7: Device Keyboard

    Ultrasonic tester UK1401 6. DEVICE KEYBOARD «On» and «Off» of the device. The device also «switches off» automatically after removal it from the object’s surface and if the operator doesn’t not press any key during 4 minutes after the removal.

  • Page 8: Full Device Menu

    Ultrasonic tester UK1401 Goes to the main device menu. Also switched the memory viewing and correction mode Switches on memory reviewing and correction of the result from current group. Switches on memory reviewing and correction of the results with listing group numbers 7.

  • Page 9: Device Screen In The Different Measurement Modes

    Ultrasonic tester UK1401 List the menu items. Active menu libe begins blinking The item’s parameters of the main menu are changed with pressing Enter button. On the device screen not all menu items are displayed, therefore arrows are showing, that there are some more lines higher or below: С...

  • Page 10: Mode Of Velocity And Time Of Ultrasonic Waves Propagation Measurement With Turned On Memory

    Ultrasonic tester UK1401 Turned OFF Memory 1. Time of ultrasonic waves propagation in the material 2. Indication level of the locked-on signal (in this case device is removed from the object surface) 3. Battery symbol (while the battery is exhaustion the silhouette is getting lighter) 4.

  • Page 11: Mode Of Crack Depth Measurement

    Ultrasonic tester UK1401 2. Number of the result in the group (up to 255) 3. Ultrasonic waves velocity propagation in the material 4. Level indication of the locked-on signal (when the rectangular is getting more darker, the signal is getting more stronger) 5.

  • Page 12: Automatic Gain Control (Agc) Mode

    Ultrasonic tester UK1401 Automatic Gain Control (AGC) Mode At the turned on AGC the ultrasonic tester UK1401 sets the necessary amplification automatically. But in this mode the increased press of the device to the objects surface is needed. When the AGC is OFF the signal level should be set manually.

  • Page 13: Operations Before Measurement

    Ultrasonic tester UK1401 9. OPERATIONS BEFORE MEASUREMENT Start device with pressing On/Off button. will hear Operation manual...
  • Page 14 Ultrasonic tester UK1401 Press Arrow Down button to go to AGC On/Off adjustments. Press Enter until you have the necessary adjustment With pressing Menu again you can return to the measurement mode with selected imaging view of results. 10. VELOCITY OR TIME OF ULTRASONIC WAVES PROPAGATION DEFINITION Go to the main menu.
  • Page 15 Ultrasonic tester UK1401 The device will active itself. Measurement of the velocity in the object. Display after removal of the device from the object surface. In 10-15 seconds after removal of the device from the object surface the horizontal strokes will appear on the screen.

  • Page 16: Definition Of Crack Depth, Laying On A Surface

    Ultrasonic tester UK1401 11. DEFINITION OF CRACK DEPTH, LAYING ON A SURFACE Go to the main menu. With Arrow Up button go to the very beginning of the menu. Press Enter until you have the necessary adjustment (see below): Select the view of results screening.

  • Page 17: Operations With Memory

    Ultrasonic tester UK1401 The Base value is added in the device memory. Put the device on the surface, perpendicular to crack. Depth of crack meaning, measured in metrics units. 12. OPERATIONS WITH MEMORY Record of measured results (Time or Velocity of Ultrasonic Waves Propagation) in the Memory Go to the main menu.
  • Page 18 Ultrasonic tester UK1401 Push it with force of about 5-10 kg. The device will pass in the active state. The change of indications is accompanied by short beeps. Fix the device in such condition during 15-20 seconds, so the indications will change 2-3 times.

  • Page 19: Reviewing Of The Results With Listing Of Groups

    Ultrasonic tester UK1401 Reviewing of the Results with Listing of Groups Screen at starting. Press and release the buttons. Get blinking number of group of the last recorded result. With these buttons it is possible to review earlier recorded results in other groups.

  • Page 20: Results Reviewing With Listing Cell Numbers In The Current Groups

    Ultrasonic tester UK1401 Results Reviewing with Listing Cell Numbers in the Current Groups Screen at starting. Press and release the buttons. Get blinking number of cell of the last recorded result. With the help of these buttons it is possible to review earlier recorded results in other groups.

  • Page 21: Results Correction

    Ultrasonic tester UK1401 Results Correction Screen at starting. Press and release these buttons. Receive blinking number of cell of the last recorded result. With the help of these buttons it is possible to choose and adjust earlier recorded results. Put the device on the object the way, that probes are perpendicular to the surfaces.

  • Page 22: Memory Clearing

    Ultrasonic tester UK1401 Memory Clearing Go to the main menu. The memory should be switched on. There should be figures In the line MEMORY. With the help of these buttons select the line CLEAR. Line should start blinking: Function of Data deleting.

  • Page 23: Installation Of The Program For Data Transmission From Uk1401 To The Pc

    For some high-speed infrared adapters it is required to install the SIR-compatible mode. For details address to a manual on the adapter used by you Installation of the Program for Data Transmission from UK1401 to the PC The required configuration: •...
  • Page 24 Ultrasonic tester UK1401 Data Transfer From UK1401 Include a computer and start the program Excel97 (or newer). In the panel of buttons of this program find the button “UK1401 link”. UK1401 link Press it with the help of the left-hand mouse button.

  • Page 25: License Agreement

    “ACS” Ltd. does not warrant that any program will be error-free or that any defects that may exist in any program can be corrected.

  • Page 26: Warranty On The Product

    Ultrasonic tester UK1401 In no event shall “ACS” ltd. be liable for any loss of profits, use, business or for any incidental, indirect, special, consequential or exemplary damages whatsoever including but not limited to damages resulting from loss of anticipated savings or lost data.

  • Page 27: Introduction

    Ultrasonic tester UK1401 Turn on the tester and put it on the control sample. Ultrasonic probes should be put in the deepening specially made on one of the sides of the sample. Press the device with effort of 5-10 kg and fix it in this position. Hold it for 5-10 seconds. Write down the indications of the device.
  • Page 28 Standard GOST 17624-87 of RF and that can provide time and velocity measurements of ultrasound dissemination on 120mm base or larger. It is recommended to use the probes with dry point contact (for example UK1401). Preparations for Testing 1. For determination of concrete’s solidity in structures you need preliminarily to build the calibration dependence.
  • Page 29 Ultrasonic tester UK1401 The exception is made for building the calibration dependence for estimation concrete’s solidity at engineering testing, when the difference in concrete’s age is not regulated. 6. On each area with the help of magnet device the location of reinforcement in the concrete is detected and then with the help of ultrasonic device the ultrasonic velocity (time) in it is measured.
  • Page 30 Ultrasonic tester UK1401 The correlation coefficient of the calibration dependence should be S т. .нм. not less then 0,7 ≤ and the meaning of the standard deviation . In some cases after 0,15 Raverage agreement with developers of these recommendations it S т.
  • Page 31 Ultrasonic tester UK1401 3. The dependence described in the item 2 of this article can be used for approximate estimation of concrete’s solidity from 15MPa up to 40MPa. 4. It is recommended to specify the dependence for specific circumstances of the...
  • Page 32 Ultrasonic tester UK1401 • Type of structure’s reinforcement; • Availability or absence of testing sample cubes. 2. The velocity (time) of ultrasound dissemination on each area subjected to testing is made at least two times. The deviation of single measurements from the single average should meet the requirements, described in the item 7 of “Preparations for...
  • Page 33 Ultrasonic tester UK1401 Bronze 3530 Plexiglas 2670 6000 Polystyrene 2350 Вi 2180 Rubber 1480 5460 2160 Gabbro 38 6320 3600 Gypsum 4790 Glassceramics 6740 Gneiss 7870 Mica 7760 Granite 4450 Steel3 5930 Diabase 85 5800 Organic glass 2550 Dolomit 9...
  • Page 34 Ultrasonic tester UK1401 Operation manual...
  • Page 35 Ultrasonic tester UK1401 Operation manual...
  • Page 36 Ultrasonic tester UK1401 ULTRASONIC TESTER UK1401 OPERATION MANUAL Revision: August, 2015 Operation manual...
