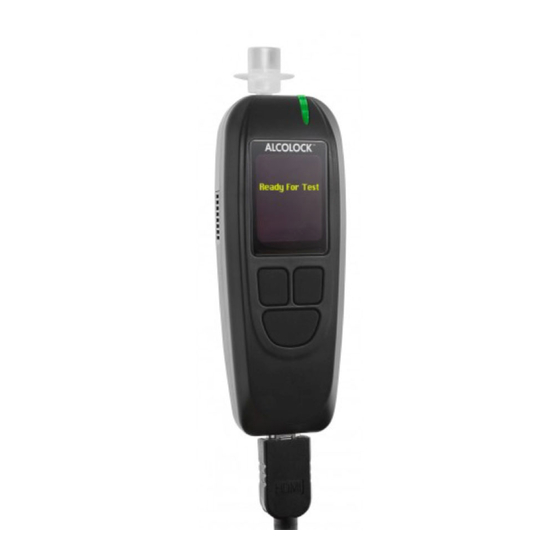

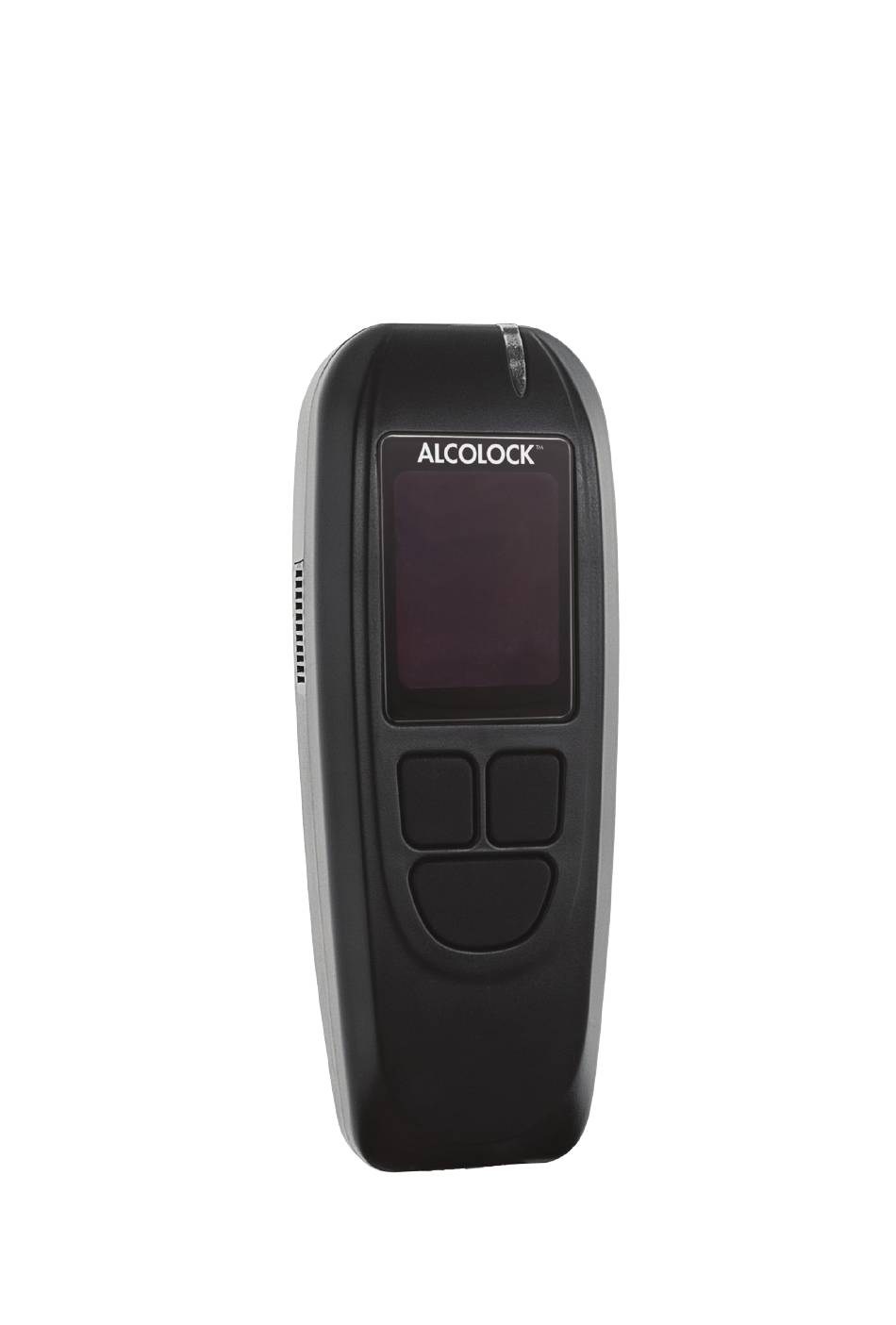

- Page 1 ALCOLOCK A L C O H O L I N T E R L O C K Troubleshooting manual...
- Page 3 F +1 416 619 3501 info@acs-corp.com acs-corp.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOLOCK, INTERTRACK and the “Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems (International) Inc.
-
Page 5: Table Of Contents
Error message troubleshooting tables................3 Test aborts ........................3 Battery and real time clock (RTC) ................4 Communication and voltage ..................4 If the ALCOLOCK LR device is not powering on ............5 Vehicle battery and hardware – troubleshooting table ..........5 Exchange procedures ....................6 HS exchange procedure...................6... -
Page 6: Introduction
RECALL CODES The ALCOLOCK LR device enters a recall as a result of a program violation or a technical / service incident. The HS will display Early Recall or Immediate Recall, along with a recall code and the permanent lockout date. The client must return to an authorized Service Centre before the permanent lockout date. - Page 7 Missed retest Failure to comply to a retest request Retest time-lapse fail Failure to comply to a pull over request (after failing a breath test) Start violation Vehicle engine started without providing an accepted test (tampering) Power disconnect (short) Vehicle battery disconnected once, over the set time limit Consecutive hum aborts Multiple breath test aborts, due to incorrect hum or a...
-
Page 8: Permanent Lockout Codes
Take another test temperature circumvent the device Signal drop abort Abort 40 Piston stuck in the rest Dirty pump Unplug the HS and position carefully shake it to loosen Weak vehicle battery the piston Boost or charge the vehicle battery ALCOLOCK LR... -
Page 9: Battery And Real Time Clock (Rtc)
Abort 50 Piston stuck in the fired Dirty pump Unplug the HS and position carefully shake it to loosen Weak vehicle battery the piston Boost or charge the vehicle battery Invalid Invalid humidity reading Excessive moisture in Take another test Sample 01 the HS Possible attempt to... -
Page 10: If The Alcolock Lr Device Is Not Powering On
2. Using an automotive battery load tester, verify that the vehicle battery is around 12.66V. If the tester displays 10V or below, the vehicle battery must be replaced. 3. Check all wiring connections between the ALCOLOCK LR device and the vehicle, including the ground connection. -
Page 11: Exchange Procedures
HS return transaction under the client’s name • If the original HS is not working, send it back to ACS. Label the HS: “DATA IN” ECU EXCHANGE PROCEDURE 1. With a new ECU in the client’s vehicle (using either a new or original HS) connect the HS to the vehicle and perform an HS install procedure (on the HS display). - Page 12 TG-ENG-60-000270-D © 2012 - 2015...
