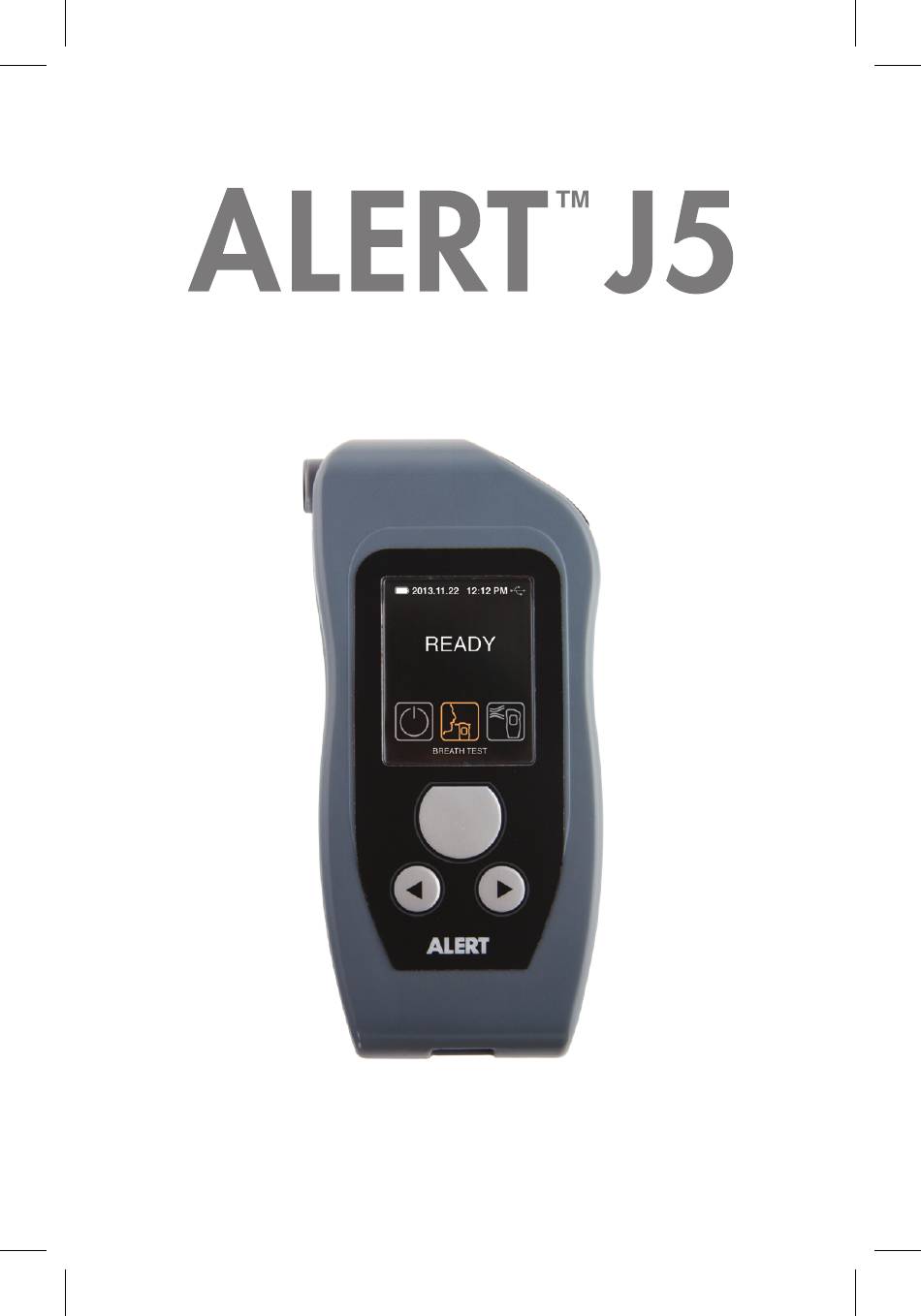

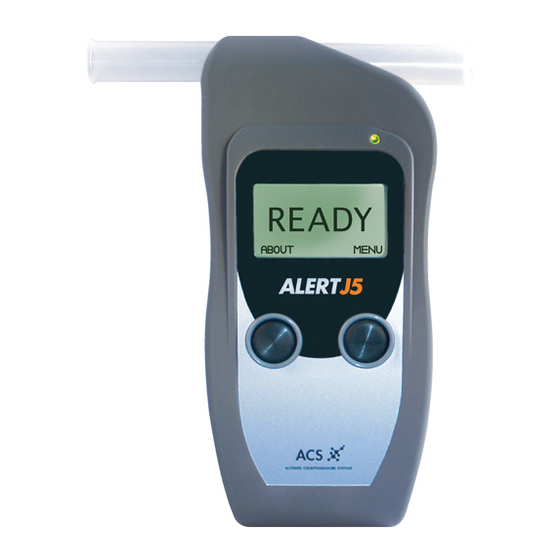

  • Page 1 EVIDENTIAL BREATH ALCOHOL TESTER Instruction manual...
  • Page 2 L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Certification The ALERT J5 evidential breath alcohol tester and other breath alcohol testing products of Alcohol Countermeasure Systems (ACS) comply with international standards for function and safety. For more details, contact ACS.
  • Page 3 F +1 416 619 3501 info@acs-corp.com acs-corp.com ACS, ALCOHOL COUNTERMEASURE SYSTEMS, ALCOSIM, ALERT and the “Molly” are trademarks of Alcohol Countermeasure Systems (International) Inc. and are used under license. Alcohol Countermeasure Systems is the trading style of Alcohol Countermeasure Systems (International) Inc.
  • Page 4 ALERT J5 COMPONENTS FRONT VIEW BACK VIEW Graphic display Main button plastic tab Battery cover Right navigational Left button navigational button TOP VIEW BOTTOM VIEW Mouthpiece Exhaust grid USB port port...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Safety and precautions ..............1 Disclaimer ................... 2 Introduction ..................2 Warranty ..................2 Maintenance ................2 Getting started ..................3 Operation ..................... 3 Display ....................4 Menu icons — main menu ............5 Breath test ................... 5 Passive test ..................

  • Page 6: Safety And Precautions

    SAFETY AND PRECAUTIONS • Use the ALERT J5 tester for its intended purpose only • Do not blow smoke or spit into the mouthpiece; it may damage the sensor • Always use a clean mouthpiece when blowing into the tester •...

  • Page 7: Disclaimer

    DISCLAIMER Sale of the ALERT J5 evidential breath alcohol tester is under the strict condition that neither the manufacturer nor the vendor of the device shall be held responsible for the accuracy of any breath test nor is responsible for any loss, damage, injury or other consequence resulting—directly or indirectly—from the use thereof.

  • Page 8: Getting Started

    (BAC). The readout is provided on the display. The ALERT J5 tester is well suited for the industrial and traffic safety sectors, with a three button control and the choice of battery or power adaptor operation.

  • Page 9: Display

    DISPLAY The ALERT J5 evidential breath alcohol display provides the readout of BrAC with the unit of measurement, battery levels, date and time, error messages, abort messages and all the indicators necessary for a clear and comprehensive user interface. Current date & time USB connection 2013.11.22 12:12 PM...

  • Page 10: Menu Icons - Main Menu

    Follow the directions on the display for a retest. ANALYZING is displayed for a few seconds, followed by the numeric BrAC result and the Print icon on the display. The mouthpiece port will also illuminate: ALERT J5...

  • Page 11: Passive Test

    • RED - if the test result is over the fail threshold • ORANGE - if the test result is within the warn range • GREEN - if the test result is below the warn threshold Press the main button to select the Print icon, or wait for the device to return to READY.

  • Page 12: Significance Of Breath Test Results

    Readings of 0.40 mg/L and greater are indicative of high levels of alcohol consumption and deemed too dangerous to operate a vehicle, the result of which may lead to a criminal offence. ALERT J5...

  • Page 13: History Menu

    HISTORY MENU Select the History icon to review the records stored in the log. Each breath test is saved in a numerical format which can be interpreted as follows: The test result (expressed as Pass, Date Time Warn, or Fail for a passive test) 2013.11.22 10:05 AM 13.06.04 11:35 AM Passive Pass...

  • Page 14: Settings Menu

    Time. The hourly value will blink. Use the navigational buttons to increase and decrease the value. Press the main button to confirm and switch to the minute value. Repeat these steps to adjust the minute value and confirm, which will return to the previous menu. ALERT J5...
  • Page 15 Time format. The time format will blink. Toggle between 12 hour and 24 hour with the navigation buttons and press the main button to confirm. The AM/PM value will blink if 12 hour is selected. Toggle between AM and PM with the navigational buttons and press the main button to confirm.
  • Page 16 Press the main button to scroll between BUTTON MUTE ON and BUTTON MUTE OFF. Volume up. Press the main button to increase the volume. Volume down. Press the main button to decrease the volume. Back. Allows you to move back to the Settings Menu. ALERT J5...
  • Page 17 BRIGHTNESS Select the Brightness icon to brighten or darken the display. Scroll through the options with the navigational buttons and select with the main button. Press the main button to increase the brightness of the display. Press the main button to decrease the brightness of the display.
  • Page 18 Press the main button at any time to return to the Main Menu. BLUETOOTH PAIRING This section allows you to pair the ALERT J5 tester with the Bluetooth printer. Refer to the “Printing” section of this manual for more information.

  • Page 19: Troubleshooting Menu

    TROUBLESHOOTING MENU Diagnostics, advanced and back options are presented. The current option is indicated by an arrow u. Use the navigational buttons to scroll up and down and the main button to select. DIAGNOSTICS Test the main components of the unit. The current option is indicated by an arrow u.

  • Page 20: Advanced

    CPU and pump are displayed to provide an indication of potential anomalies with these components. ADVANCED This menu is password protected; only an authorized ACS person can perform these actions. BATTERY STRENGTH INDICATOR The Battery Strength icon is displayed on the top-left corner.

  • Page 21: Printing

    PRINTING VIA BLUETOOTH The Bluetooth printer provided is already paired at the factory with the ALERT J5. Follow this procedure for pairing the tester and printer in the event that one of them is replaced in the field. Press and hold the power button until the battery light illuminates and the printer turns on.

  • Page 22: Inserting The Battery

    Close the lid so that an inch of paper peeks out from underneath. Line feed button Insert paper under Press and hold the power button to turn the printer on. Press the feed button until the paper feeds smoothly through the printer. ALERT J5...

  • Page 23: Maintenance And Troubleshooting

    A calibration is performed with either the ALCOSIM breath alcohol simulator or an alcohol gas standard cylinder. DISPOSAL AT THE END OF SERVICE LIFE Disposal of the ALERT J5 tester at the end of its service life can be done by: •...

  • Page 24: Index

    Power adaptor, 1, 3 Device serial number, 13 Print, 6 Device settings, 13 Printing, 16 Device temperature, 1, 15 Pump, 14 Diagnostics, 14 Disposal, 18 Record Down, 9 Record Up, 9 Error messages, 4 Restore settings, 13 Exhaust grid, 1, 6 ALERT J5...
  • Page 25 Sensor, 1 Sensor heater, 14 Settings, 5, 9 Shutdown, 3, 5 Speaker, 14 Time and Date, 9 Time format, 10 Troubleshooting, 5, 18 Volume, 11 Warn range, 6 Warranty, 1, 2 INSTRUCTION MANUAL...
  • Page 26 IRM-ENG-AU-60-000265-A © 2015...
