INSTALLATION AND OPERATING INSTRUCTIONS
(Versions "L", "S" and "LS" with "D" and "T" Options)
1. INTRODUCTION
Securitron's Model M38 and M68 Magnalocks are fail safe electromagnetic locks designed for
*interior use in areas which require controlled access or egress.
interlocking mounting bracket and a power and control wiring access compartment which
provides the added convenience of wiring "at-the-lock". The sleek, low-profile design provides a
professional looking, unobtrusive integration into a wide range of architectural applications and
can be easily retrofitted to replace existing magnetic lock systems.
* M38 and M68 Magnalocks are not designed, recommended or approved for exterior (outdoor)
use. Interior use is described as any door installation to the interior of a building (i.e. offices,
work or storage rooms) or to the interior side of any perimeter exterior door.
2. SPECIFICATIONS
M38:
Holding Force: 600 Lbs. [272 Kg]
Dimensions:
Inches: 10-1/2"L X 2-9/16"H X 1-9/16"D
Millimeters: 267 L X 65 H X 40 D
Electrical:
12 Volts DC:
Current Requirement: 300 – 325 mA
Power Consumption: 3.6 Watts
24 Volts DC:
Current Requirement: 150 – 175 mA
Power Consumption: 3.6 Watts
3. PRODUCT OVERVIEW
Upon unpacking this product, an inventory should be made to ensure that all the required
components and hardware have been included.
installation template, the lock assembly (M38 Shown) should include the following items:
Mounting Bracket
Strike Plate
© Copyright, 2012, all rights reserved
Securitron Magnalock Corp.
Tel 800.624.5625
For Model M38 and M68 Magnalocks
Hardware Pack
www.securitron.com
techsupport@securitron.com
M68:
Holding Force: 1,200 Lbs. [544 Kg]
Dimensions:
Inches: 10-1/2"L X 3-5/8"H X 1-13/16"D
Millimeters: 267 L X 92 H X 46 D
Electrical:
12 Volts DC:
Current Requirement: 250 – 275 mA
Power Consumption: 3.0 Watts
24 Volts DC:
Current Requirement: 125 -150 mA
Power Consumption: 3.0 Watts

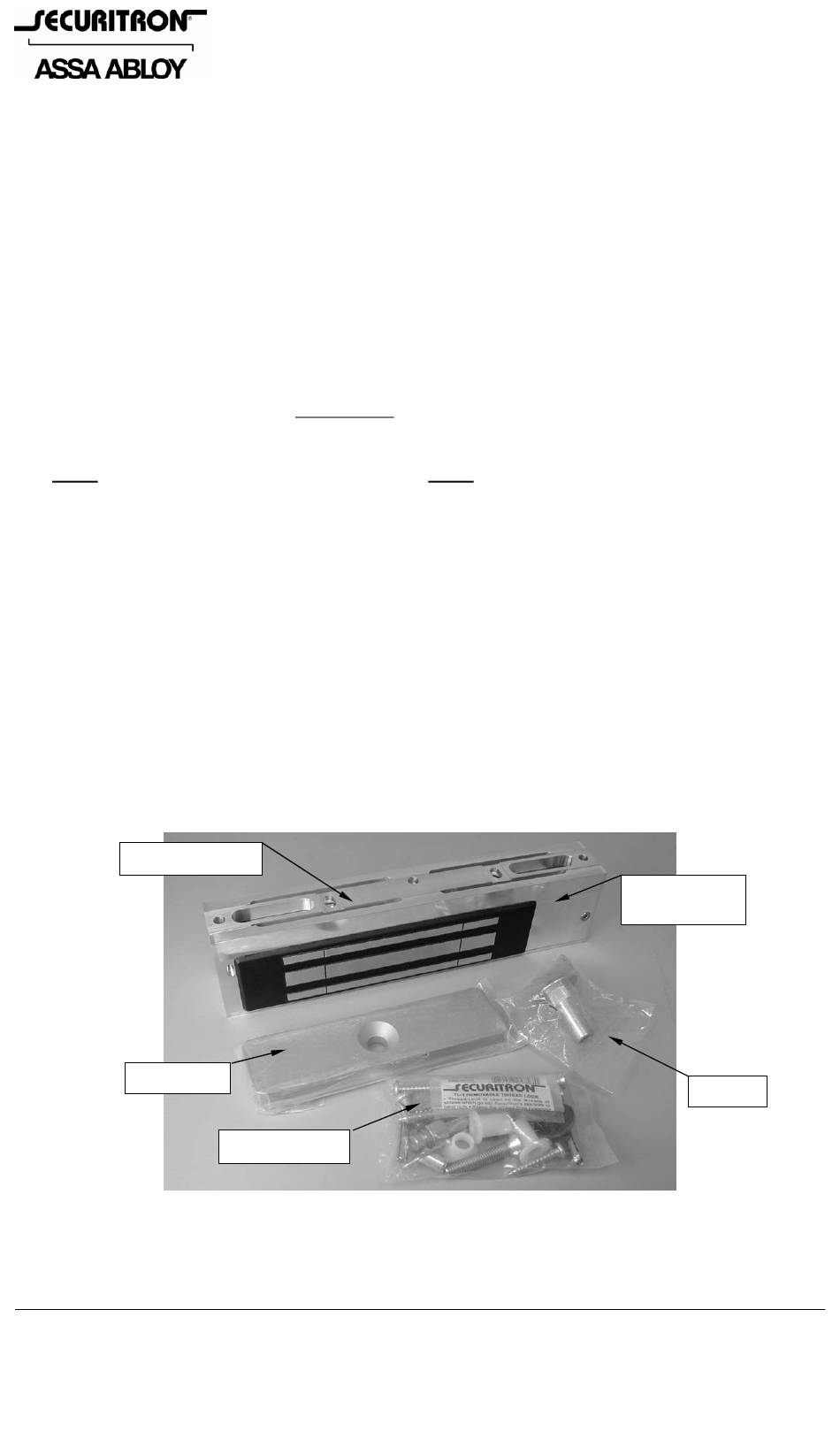

Along with these instructions and the
Page 1
ASSA ABLOY, the global leader
in door opening solutions
Each unit includes an
Magnetic Lock
Housing
Sex Bolt
PN# 500-21400
Rev. C, 05/12
