Instruction Manual

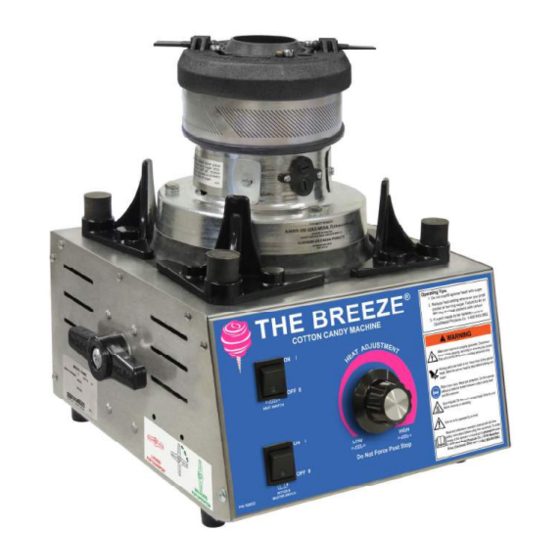

The Breeze
®
EZ Kleen Head
Model No. 3030-00-001
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
© 2018 Gold Medal Products Co.
Part No. 110024

Advertisement

Table of Contents
loading

Summary of Contents for Gold Medal The Breeze EZ Kleen Head

  • Page 1 Instruction Manual The Breeze ® EZ Kleen Head Model No. 3030-00-001 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2018 Gold Medal Products Co. Part No. 110024...
  • Page 2: Safety Precautions

    The Breeze EZ Kleen Head Model No. 3030-00-001 SAFETY PRECAUTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning.
  • Page 3 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
  • Page 4: Inspection Of Shipment

    The Breeze EZ Kleen Head Model No. 3030-00-001 INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual).
  • Page 5: Setup For Use

    The Breeze EZ Kleen Head Model No. 3030-00-001 Setup for Use (General reference images shown) Spinner Head Bell Housing Lock‐N‐Go Handle Step 2: Lock-N-Go® handles are used for transport. Rotate both Step 1: Set unit on a level handles to a vertical, UNLOCKED, position for use. This allows surface.
  • Page 6 The Breeze EZ Kleen Head Model No. 3030-00-001 Whirlgrip Floss Stabilizer Installation Instructions Unit must be OFF, and cool to install Floss Stabilizer. Place Floss Pan on unit and install Whirl Grip Floss Stabilizer (Item No. 3010) as shown below. Kit includes: Floss Stabilizer/screening (P/N 43032), and (6) Whirlgrip Clips (P/N 77470).
  • Page 7: Electrical Requirements

    4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com...
  • Page 8: Controls And Their Functions

    The Breeze EZ Kleen Head Model No. 3030-00-001 OPERATING INSTRUCTIONS Controls and Their Functions MOTOR & MASTER SWITCH Two position, lighted rocker switch - turns Motor ON/OFF and supplies power to the Heat Switch. The green light ON indicates there is power to the unit. HEAT SWITCH Two position, lighted rocker switch - turns the heating element ON/OFF.
  • Page 9 The Breeze EZ Kleen Head Model No. 3030-00-001 Sugar for Your Candy Ready to Use Flossugar Our ready to use Flossugar is the preferred sugar for your new cotton candy machine; however 100% pure cane or beet sugar will do just fine. Our Flossugar gives you good rich colors, and great flavors, too.
  • Page 10: Machine Operation

    The Breeze EZ Kleen Head Model No. 3030-00-001 Machine Operation Floss Machine Operation (3030 Breeze) WARNING Floss head rotates at high speeds. Operator MUST keep hands and face clear of the floss head to avoid injury. Operator must wear eye protection. Keep all spectators at a reasonable distance, and use a Floss Bubble for added customer protection.
  • Page 11 The Breeze EZ Kleen Head Model No. 3030-00-001 Making Floss Pick a cone, if it sticks in the stack of cones, twist it off the stack. CAUTION Keep hands away from spinning head! 031_021914 Hold an inch or two of the pointed end of a cone between two fingers and a thumb. With a light flicking action, roll cone in the web of floss building up in the pan.
  • Page 12 The Breeze EZ Kleen Head Model No. 3030-00-001 Rubber Float Adjustment In operation, the floss will collect on the FLOSS STABILIZER. If the floss collects “low” on the stabilizer, twist the front (leading) edge of the rubber floats down (as shown below). This creates a lifting action to float the floss higher on the wall of the floss pan.
  • Page 13: Shutdown Procedure

    4. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine.
  • Page 14 The Breeze EZ Kleen Head Model No. 3030-00-001 Floss Band and Element Disassembly and Removal of Floss Band 1. Unplug the machine from the power source and allow floss head to cool completely. 2. Remove all sugar from the head of the machine before disassembling. If needed, carefully turn the machine on its side and shake the sugar out.
  • Page 15 The Breeze EZ Kleen Head Model No. 3030-00-001 Reassembly of Floss Band and Element 1. When reassembling, the floss band and element must be properly seated on the spinner head groove provided for the Quick Release Floss Cap to correctly and easily lock into place.
  • Page 16: Troubleshooting

    The Breeze EZ Kleen Head Model No. 3030-00-001 Troubleshooting Issue Possible Cause Solution Low Production A. Excessive carbon on the A. Follow the instructions for removing and element. cleaning band and element (see Floss Band and Element section). B. Heat Control B. Adjust the Heat Control Knob to increase production.
  • Page 17 The Breeze EZ Kleen Head Model No. 3030-00-001 Issue Possible Cause Solution Excessive Vibration A. Packing material not A. If the equipment is new, check that all packing removed. materials were removed from the machine. B. Lock-N-Go Handles not in B. Verify that the Lock-N-Go Handles have been operating position.
  • Page 18: Maintenance Instructions

    The Breeze EZ Kleen Head Model No. 3030-00-001 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning.
  • Page 19: Ordering Spare Parts

    4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:...
  • Page 20 The Breeze EZ Kleen Head Model No. 3030-00-001 Cabinet Exterior and Lock-N-Go Handle Assembly 30, 31 28, 29 26, 27 22* *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. 11, 12 gmpopcorn.com Page 20...
  • Page 21 The Breeze EZ Kleen Head Model No. 3030-00-001 Cabinet Exterior and Lock-N-Go Handle Assembly – Parts List Part Number Item Part Description 3030‐00‐001 TAKE APART SPINNER HEAD (Complete Assy.) See Spinner Head Assembly section for individual 42283TC parts breakdown. BRUSH HOLDER ASSY (includes Brushes, Caps and Holders) See Brush Assembly Breakdown 42382W section for individual parts breakdown.
  • Page 22 The Breeze EZ Kleen Head Model No. 3030-00-001 5” Take Apart Spinner Head (Model No. 42283TC) Spinner Head Complete (Model 42283TC) 8, 9 23* 10 11 *Uses two Set Screws Spinner Head Bottom Floss Head – Band Interior View gmpopcorn.com Page 22...
  • Page 23 The Breeze EZ Kleen Head Model No. 3030-00-001 5” Take Apart Spinner Head (Model No. 42283TC) – Parts List Part Number Item Part Description 42283TC MOLDED RUBBER FLOAT 56549 QUICK RELEASE FLOSS CAP (includes 2 Molded 102039 Rubber Floats TAKE-APART SPINNER CAP 43166C BREEZE BAND ASSEMBLY (includes element) 48799...
  • Page 24 The Breeze EZ Kleen Head Model No. 3030-00-001 Bell Housing Interior – Brush Assembly 1, 2 5, 6 Part Number Item Part Description 3030‐00‐001 HEX NUT #10-24 ESLOK 74691 .188ID FLATWASHER 77052 MOTOR MTG PLATE 42119 MOTOR, FLOSS MACHINE 48649 6-32 X 1/2 PH PAN HD M/S 47516 6-32 GRIP NUT ZINC PLATED 47517...
  • Page 25 The Breeze EZ Kleen Head Model No. 3030-00-001 Cabinet Interior – Parts Breakdown 3024‐00‐000 9, 10 4, 7 When reassembling the unit: 4, 5  Be sure the Bell Housing is located UNDER the Clamping Brackets as shown here.  Be sure to keep wiring clear of the locking mechanism.
  • Page 26 The Breeze EZ Kleen Head Model No. 3030-00-001 Cabinet Interior - Parts List Part Number Item Part Description 3030‐00‐001 MOTOR, FLOSS MACHINE 48649 SWITCH, LIGHTED ROCKER GR 42798 ELECTRONIC HEAT CONTROL 42558 6-32 X 3/8 PHIL PAN M/S 39000 WASHER #6 INTERNAL TOOTH 76188 RELAY, 120VAC, DPST-NO 48590...
  • Page 27: Wiring Diagram

    The Breeze EZ Kleen Head Model No. 3030-00-001 Wiring Diagram Model No. 3030-00-001 gmpopcorn.com Page 27...
  • Page 28: Warranty

    © 2018 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
