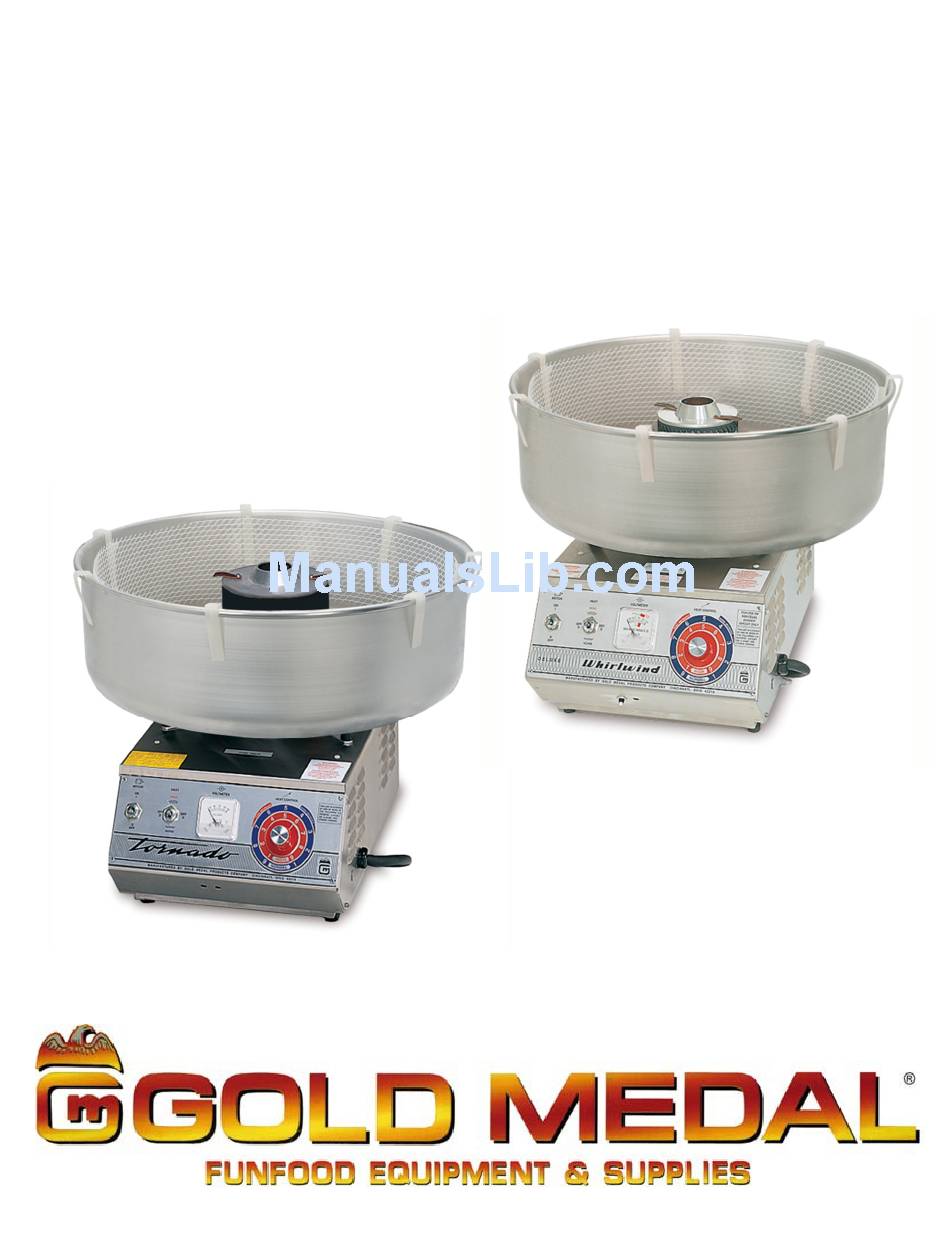

- Page 1 Tornado Part No. 42117 Deluxe Whirlwind Instruction Manual Model No. 3005SS and 3008SS Whirlwind Model 3008SS Tornado Model 3005SS Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Tornado Whirlwind Floss Machine SAFETY PRECAUTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. Keep cord and plug off the ground and away from moisture. - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.)
-
Page 4: Installation Instructions
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. -
Page 5: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 6: Controls And Their Functions
Tornado Whirlwind Floss Machine CONTROLS AND THEIR FUNCTIONS TORNADO AND DELUXE WHIRLWIND CONTROLS MOTOR SWITCH DPST switch which serves as a master OFF-ON switch and energizes the cooling fan and spinner head drive motor. NOTE: The drive motor is equipped with an internal centrifugal safety switch which makes contact when the floss spinner head reaches approximately 2050 RPM, thus completing the heat circuit. -
Page 7: Cleaning Instructions
The Whirlgrip Floss Stabilizer Model No. 3010 works more effectively to prevent floss from leaving the pan and is offered by Gold Medal at a modest price. See the illustration on page 6 which shows proper installation of the Whirlgrip Floss Stabliizer. - Page 8 Tornado Whirlwind Floss Machine SUGAR FOR YOUR COTTON CANDY Our ready to use FLOSSUGAR is the preferred sugar for your new cotton candy machine, but and 100% pure Cane or Beet Sugar will do just fine. Our FLOSSUGAR gives you good rich colors, and great flavors, too.
- Page 9 Tornado Whirlwind Floss Machine INSTALLATION OF WHIRL GRIP FLOSS STABILIZER #3005SS, #3008SS, 3015 ODELS...
- Page 10 Tornado Whirlwind Floss Machine FLOSS MAKING PROCEDURES Add Flossugar only while motor is off. Then, manually spin the head to balance. This will eliminate excessive vibration of the head. When adding sugar, always fill about 90% full. DO NOT OVERFILL! Grip - Rotation Wind the web of...
-
Page 11: Operating Instructions
Tornado Whirlwind Floss Machine OPERATING INSTRUCTIONS TORNADO AND DELUXE WHIRLWIND 1. Plug in floss machine. 2. Before turning on the motor switch and with the spinner head stationary, fill floss head about 90% full with sugar. Do NOT overfill! Whenever you add sugar to the floss head, always fill it abour 90% full. - Page 12 Tornado Whirlwind Floss Machine INDOOR COTTON CANDY SUCCESS TIPS 1. The Unifloss Stand: Choose either the complete Unifloss Stand or the top half only and mount it onto your Snack-N-Treat Bar. The Unifloss Stand plus the Whirl Grip Floss Stabiizer effectively eliminates all indoor objections. In addition, the new Animated Motion Sign Effectively helps merchandise the cotton candy.
- Page 13 For counter top cutout size and shelf location, request drawing numbers B-3374 and C-3418 from Gold Medal Products Company. After the top half of the Unifloss Stand is in position, tilt the floss machine and position the NOTE: spinner head in the center of the cutout.
-
Page 14: Maintenance Instructions
Tornado Whirlwind Floss Machine MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. Keep cord and plug off the ground and away from moisture. - Page 15 Whirlwind Floss Machine FLOSS BANDS AND RIBBONS The Gold Medal Floss Bands are made of high strength material with a dielectric coating for insulating of the bands and are designed to give long and trouble-free service. Nevertheless damage will result if subjected to undue pressure from over-tightening of the floss head screws, dropping of the bands, or striking the bands sharply.
- Page 16 Tornado Whirlwind Floss Machine REMOVAL OF FLOSS BANDS AND RIBBONS 1. Unplug this unit before servicing! 2. Remove all sugar from the head of the machine before disassembling. If the unit is inoperative, it will be necessary to turn the machine onto its side and shake the sugar out.
-
Page 17: Brushes And Slip Rings
Insert a strip of Emery Cloth against the slip ring. (Emery cloth is available from Gold Medal). While holding the ends of the emery cloth, plug in the machine and turn the motor switch On. By pulling gently on the ends of the emery cloth and moving them slowly up and down, the rings will be sanded. - Page 18 To be done correctly, you should have machine shop facilities. Head assemblies may be returned to Gold Medal to have this maintenance performed. We furnish a rebuilt head assembly if you do not have the time to send in the one from your machine.
- Page 19 Tornado Whirlwind Floss Machine REPLACING SLIP RINGS 1. Unplug before servicing. 2. Remove band and ribbons as outlined in Maintenance - Floss Bands and Ribbons. 3. Remove the head assembly by first taking out the set screw between slip rings with a "...
-
Page 20: Troubleshooting
After checking over the mentioned items and the equipment is still inoperative, the trouble is in one of the components. It is best to have them checked by a competent electrician or returned to Gold Medal for repair. However, here is a simple check you can perform to determine which component is at fault. - Page 21 Tornado Whirlwind Floss Machine If these procedures are followed and the problems still have not been located, it is neces- sary to check the control components; i.e. heat and motor switches, heat controls, and fixed transformers, if applicable. The servicing by an electrician is encouraged for this procedure. However, if you have a continuity tester or voltmeter with lead wires, it may be possible to find the faulty component by using the process of elimination.
-
Page 22: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 23: Cabinet Assembly
Tornado Whirlwind Floss Machine CABINET ASSEMBLY #3005SS, #3008SS, 3015 ODELS... -
Page 24: Parts List - Cabinet Assembly
Tornado Whirlwind Floss Machine PARTS LIST – CABINET ASSEMBLY Deluxe Tornado Whirlwind X-15R Part No. Part No. Part No. Item No. Description 42040 42040 42040 Floss Pan 42008 42008 42008 Brush Cover 48019 48019 48019 Shipping Support Angle 48020 48020 48020 Warning Tag 20006... - Page 25 Tornado Whirlwind Floss Machine X-15R WHIRLWIND ASSEMBLY #3005SS, #3008SS, 3015 ODELS...
- Page 26 Tornado Whirlwind Floss Machine PARTS LIST – X-15R WHIRLWIND Item No. Part No. Description 47236 Snap Bushing #SB-500-6 48031 Resister 45396 Snap Bushing 42320 Brush Assembly with Brush BRUSH ASSEMBLY PARTS LISTING 20032 Brush Holder 20034 Carbon Brush 20033 Brush Tension Spring 20052 Brush Tension Spring Screw 42035...
- Page 27 Tornado Whirlwind Floss Machine 3005SS TORNADO & 3008SS DELUXE WHIRLWIND ·-- ALLMODEIS #3005SS,#3008SS...
- Page 28 Tornado Whirlwind Floss Machine PARTS LIST – TORNADO and DELUXE WHIRLWIND Deluxe Tornado Whirlwind Item No. Part No. Part No. Description 47236 47236 Snap Bushing #SB-500-6 45396 45396 Snap Bushing #SB-875-10 43006 43006 Transformer, 120V 42320 42320 Brush Assembly with Brush BRUSH ASSEMBLY PARTS LISTING 20032 20032...
- Page 29 Tornado Whirlwind Floss Machine WHIRLWIND FLOSS HEAD ASSEMBLY ALL MoDELS #3005SS, #3008SS, 3015...
- Page 30 Tornado Whirlwind Floss Machine PARTS LIST - WHIRLWIND LOW PROFILE FLOSS HEAD Item No. Part No. Description 42062 Spinner Cap 42213 Floss Band, 5" Double 42327 5" Ribbon Assembly 42216 Phenolic Band Insulator 20010 Leather Floaters 42041 Head Screw, #10-24 x 2" 42053 Spinner Head Casting 42032...
- Page 31 Tornado Whirlwind Floss Machine TORNADO FLOSS HEAD ASSEMBLY ALL MODELS #3005, #3008AND #3015...
- Page 32 Tornado Whirlwind Floss Machine PARTS LIST - TORNADO LOW PROFILE FLOSS HEAD Item No. Part No. Description 20010 Leather Floaters 20050 Screw #10-24 x 2¼" 43014 Spinner Cap 43028 7" Ribbon Assembly 48041 Acorn Nut 1/4-20, Nylon 42311 Set Screw, 1/4-20 x 2" 42303 Phenolic Terminal Guard 74143...
- Page 33 Tornado Whirlwind Floss Machine Wiring Diagram - Model 3005SS #3005, #3008 #3015 ODELS...
- Page 34 Tornado Whirlwind Floss Machine Wiring Diagram - Model 3008SS #3005SS, #3008SS, 3015 ODELS...
-
Page 35: Warranty
© 2015 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
