ASSEMBLY INSTRUCTIONS

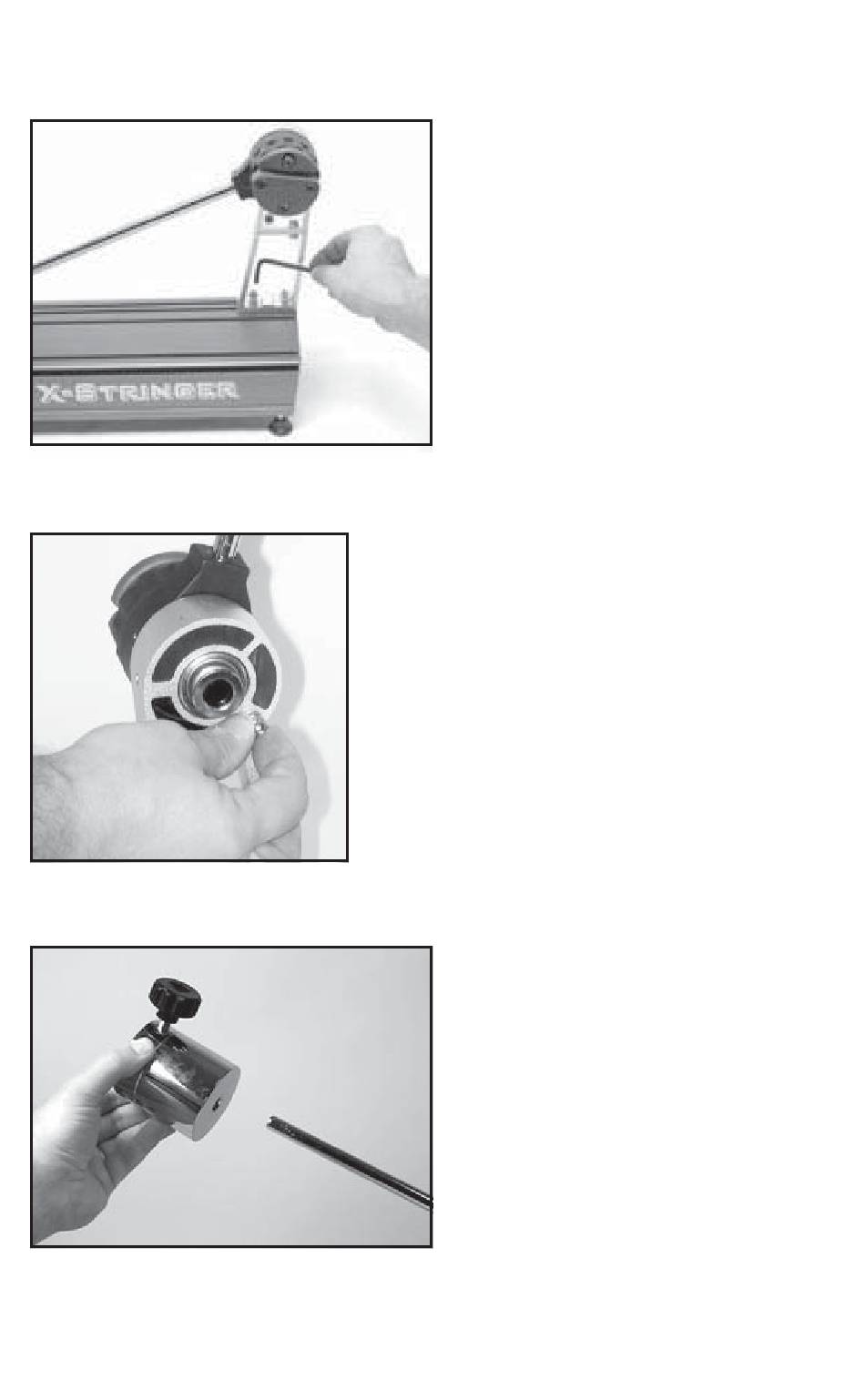

Winder Support Stand Installation
Remove the M5 bolts from the 2 brackets
located in the rear slots of the machine base
using the 5MM hex key. Slide the brackets to
the right end of the base and position the
winder stand over the brackets aligning the
holes in the base of the winder stand with the
holes in the brackets. Attach the winder
support stand using the M5 bolts. Install all 4
bolts loosely at first and then tighten all
securely.
Engaging the Drop Weight Bar Stop
The stringing machine is shipped with the
drop weight bar in the horizontal position. To
limit the rotation of the drop weight bar and
prevent racquet damage during stringing,
the bar stop must be engaged.
Hold the drop weight bar in the vertical
position as shown while turning the 5mm
stop screw located on the back side of the
winder stand clockwise.
Installing the Drop Weight
Remove the endcap from the tension bar
and slide the drop weight onto the bar. The
weight should be oriented with the knob end
closest to the string winder. Replace the end
cap.
