ASSEMBLY INSTRUCTIONS

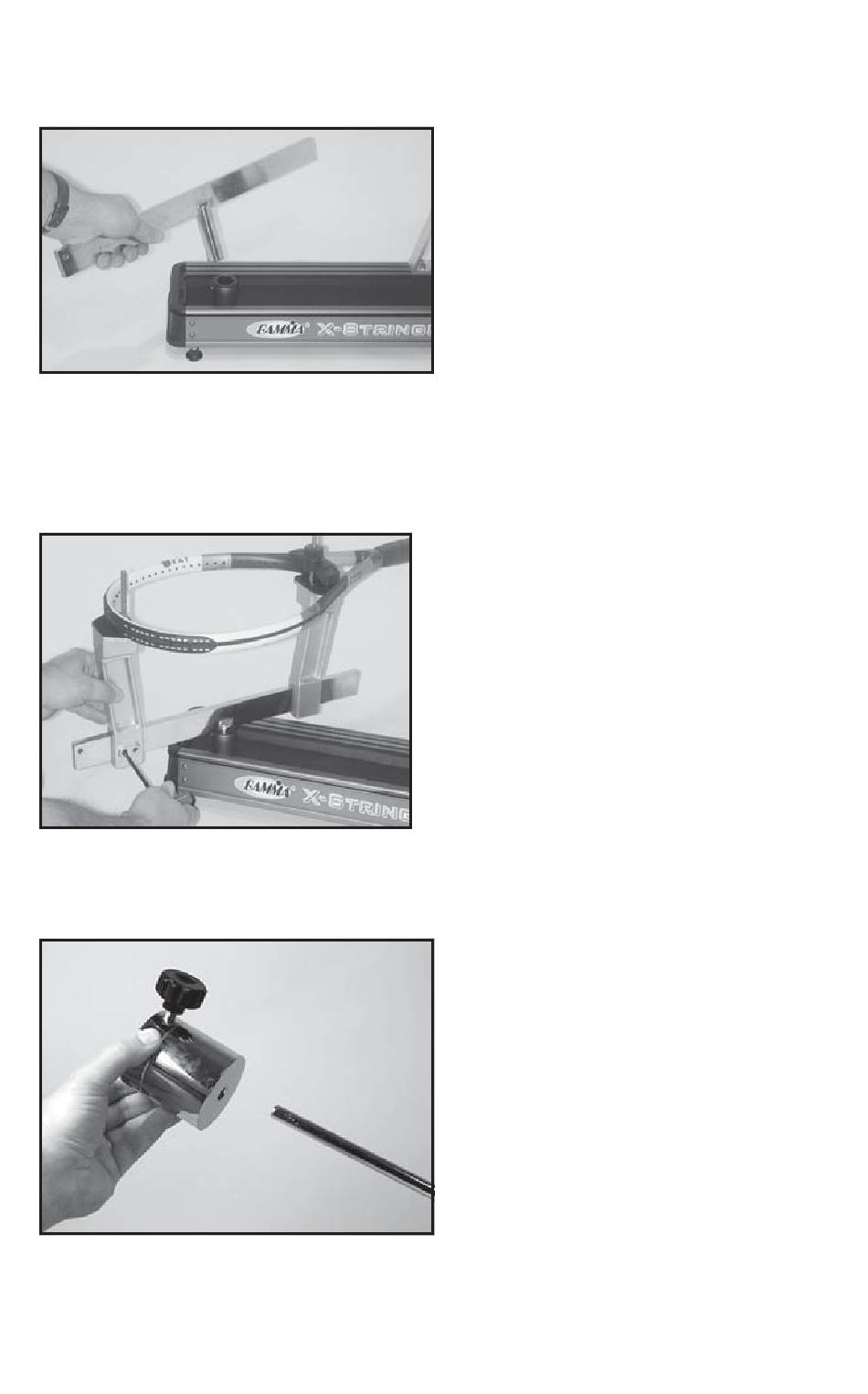

Installing the Turntable
Place the turntable ring spacer on the post of
the turntable.
Insert the turntable center post into the bush-
ing assembly of the machine base.
Installing the Support posts
Slide each support post onto the end of the
turntable bar. The posts should be oriented so
as to angle away from the turntable center post.
Installing the Drop Weight
Remove the endcap from the tension bar
and slide the drop weight onto the bar. The
weight should be oriented with the knob end
closest to the string winder. Replace the
endcap.
2
