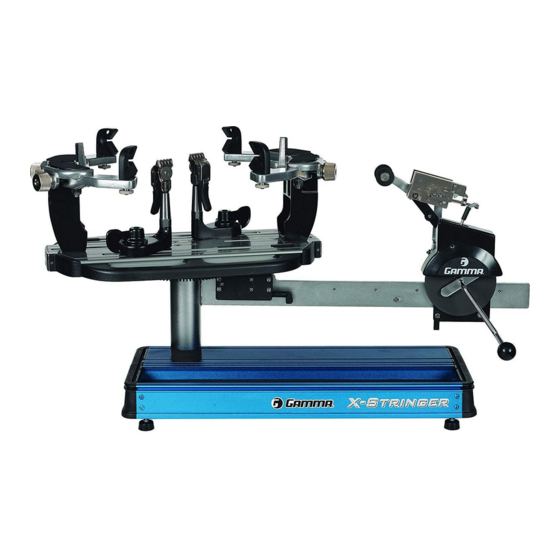

X-ST
STRINGING MACHINE
OWNER'S MANUAL
Issue 2 - October 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-ST and is the answer not in the manual?

Questions and answers

Related Manuals for Gamma X-ST

Summary of Contents for Gamma X-ST

  • Page 1 X-ST STRINGING MACHINE OWNER'S MANUAL Issue 2 - October 2009...

  • Page 2: Table Of Contents

    Should any defects develop under normal use within the specified time periods, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser's expense. This warranty does not apply to any damage or defect caused by negligence, abuse, misuse, unauthorized alteration, shipping, handling, or part wear and tear as a result of normal use.

  • Page 3: Features

    FEATURES MACHINE FEATURES Manual Spring Tension Winder (11-89 lbs range) Patented Roller Guide for Maximum Accuracy and Consis- tency Professional Six Point “Quick Mount” Racquet Mounting System - Accomodates All Racquets Without Adapters Parallel Jaw Gripper w/ Diamond Dust Coated Gripping Surfaces Professional Dual Action, Rotating, Diamond Dust Coated, Fixed String Clamps...

  • Page 4: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Turntable Installation To install the turntable remove the four nuts underneath holding the mounting bolts in place. Position the turntable over the turn- table pin and align the bolts with the holes in the flange. Secure them with the included allen wrench.
  • Page 5 ASSEMBLY INSTRUCTIONS Support Post Installation (cont’d) Place the support post onto the central slot of the turntable. With your fingers placed through the large hole in the underside of the turntable, press the mounting plate against the inside top surface of the turntable while aligning the hole in the support post with the hole in the mounting plate and fix them with the mounting bolt.
  • Page 6 ASSEMBLY INSTRUCTIONS Setting the Gripper Jaw Spacing The gripper jaws of the tensioner are adjust- able to accomodate varying string gauges. If the string slips through the gripper jaws while pulling tension, rotate the gripper jaw adjustment screw counter-clockwise. If the string is damaged while pulling tension, rotate the gripper jaw adjustment screw clockwise.

  • Page 7: Mounting The Frame

    MOUNTING THE FRAME Adjusting the Frame Support Posts Loosen the lock bolts of the frame support posts and space them apart with the frame support slides separated by the approxi- mate length of the racquet head. Although it is not required, it is good practice to center the support posts on the turntable.

  • Page 8: Stringing The Frame

    MOUNTING THE FRAME Securing the Frame Shoulder Clamps Lock the shoulder supports in position by turning the knob at the base clockwise. Repeat the adjustment procedure for the remaining support post. Re-tighten all of the frame supports in the same order as before. Do not overtighten any of the supports as racquet damage may occur.
  • Page 9 STRINGING THE FRAME Getting Started To begin stringing the main strings, thread the two ends of the string through the two center holes at the appropriate end of the frame and continue through the opposite center holes. Thread one end of the string through the adjacent grommet hole and pull excess by hand.
  • Page 10 STRINGING THE FRAME Weaving the Cross Strings Weave the cross strings over and under the main strings being careful to alternate the weave direction of each consecutive cross string so as to be opposite of the previously installed cross string. Completing the String Job Once the final cross string is tensioned and clamped, tie off at the appropriate hole...

  • Page 11: Additional Features

    ADDITIONAL FEATURES Storage Drawers There are two storage drawers located in the base of the machine. The drawers open from the right end of the base and lock into the end cap with a spring loaded latch. To open the drawers push the latch down and slide the drawer out.

  • Page 12: Pathfinder Awl

    PATHFINDER AWL The stringing machine includes the Path- finder stringing awl which creates a path- way between or around strings to make inserting a string through tight grommets easier and quicker. Insert the awl through the grommet hole in the same manner as for traditional awls. The Pathfinder awl must be in the closed position before insertion.

  • Page 13: Maintenance And Adjustments

    MAINTENANCE & ADJUSTMENTS Tension Calibration Procedure Step 1 Set the tension to 60 lbs. as indicated by the linear scale and rotary knob. Place the string on one end of a tension calibrator into a string clamp and secure. Place string located on the other end of the calibrator into the string tensioner and apply tension.
  • Page 14 MAINTENANCE & ADJUSTMENTS Adjusting the Tensioner Brake Step 1 After stringing many racquets, the brake of the tensioner may need to be adjusted. With the brake lever engaged, loosen the lock bolt located on the back side of the tensioner frame with the 4mm hex wrench. Note: The lock bolt should only be loosened enough to be turned by hand and must not be removed completely.
  • Page 15 MAINTENANCE & ADJUSTMENTS Adjusting the String Clamp Jaw Spacing The string clamps will need minor adjustments according to what string type, construction, and gauge you are using. To adjust the gap (clamping pressure) between the clamp jaws, insert the string through the racquet as if you were beginning the main strings.

  • Page 16: Troubleshooting Tips

    TROUBLESHOOTING TIPS PROBLEM SOLUTION String slips in clamps - Adjust gap between clamp jaws - Clean clamp jaws String slips in gripper - Adjust gripper jaw spacing - Clean gripper jaws String clamp base slips on turntable - Clean bottom of clamp & glide bar with alcohol - Adjust clamp base locking nut Tensioner slips on Tensioner Bar...

  • Page 17: Parts List

    PARTS LIST PART # DESCRIPTION PART # DESCRIPTION CAP SCREW- M8 TENSIONER BAR SET SCREW BRAKE BOX (ST) WASHER- M8 MDCSC METAL STRING CLAMP WASHER- M10 MQAC TALL QA BASE CLAMP FRAME SUPPORT SLIDE TENSIONER ASSEMBLY TOOLS & ACCESSORIES RETAINER SCREW FRM SUPP SCREW &...

  • Page 18: Parts Drawing

    PARTS DRAWING 148L MMSPP MQAC MDCSC MFSPP 283 285 146A 133 14 MFSPP MMSPP MMSSA...
  • Page 19 GAMMA SPORTS 200 Waterfront Drive Pittsburgh, Pennsylvania 15222 Phone: 800-333-0337 Fax: 412-323-0317 Visit our website at www.gammasports.com Copyright 2009 GAMMA Sports - All Rights Reserved...
