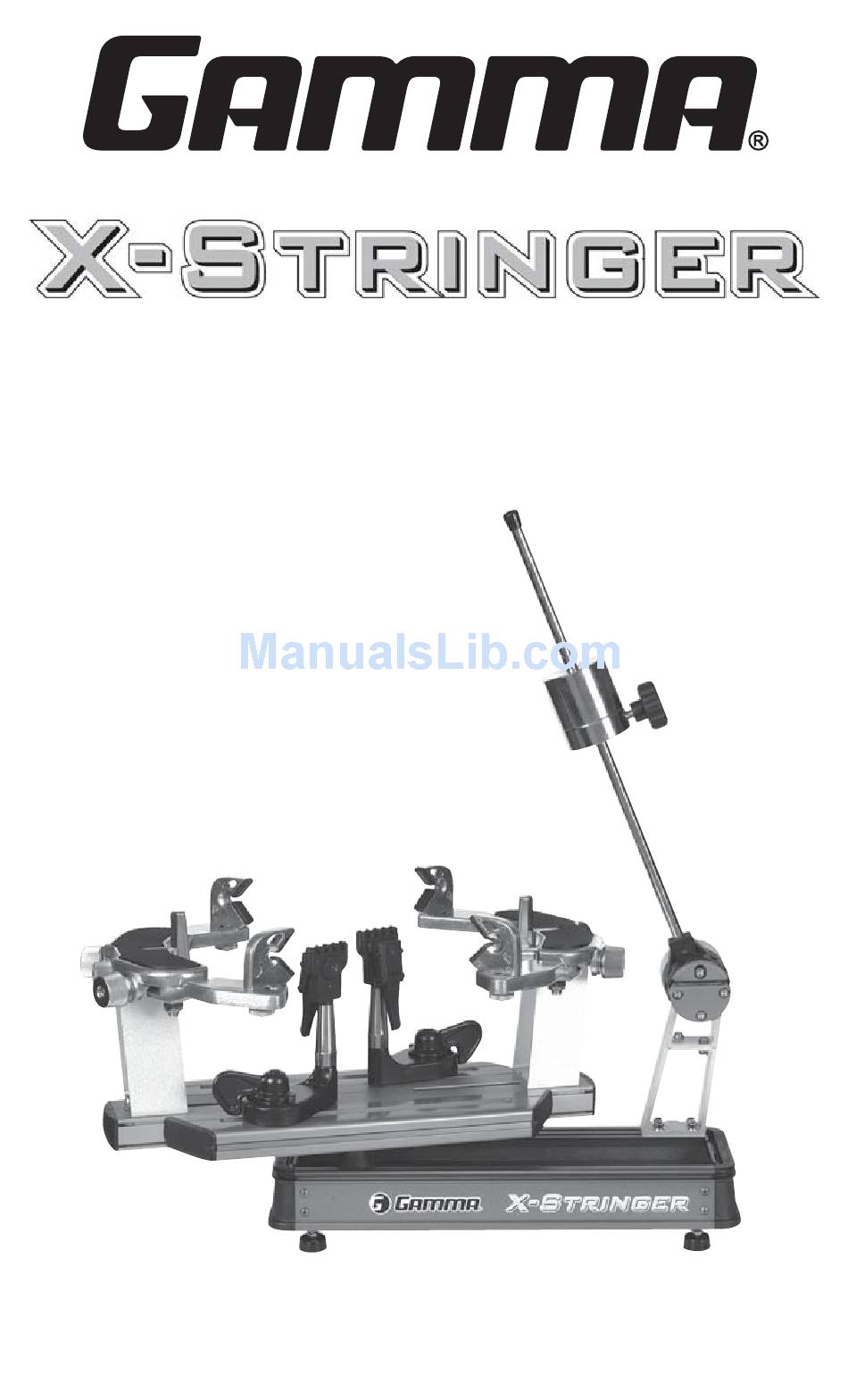

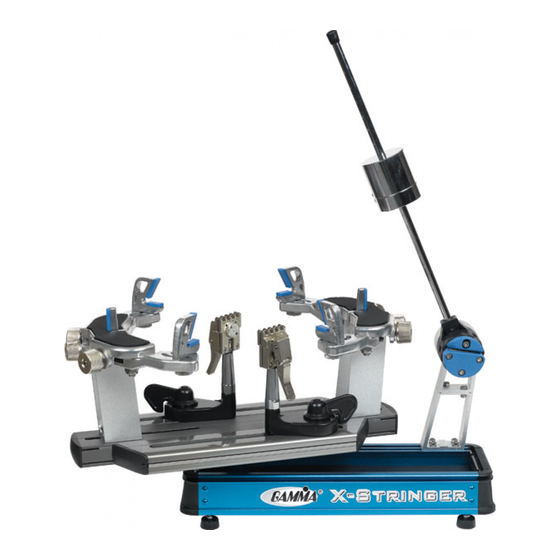

- Page 1 X-6FC STRINGING MACHINE OWNER'S MANUAL Issue 4 - November 2012...
-
Page 3: Table Of Contents
Should any defects develop under normal use within the specifi ed time periods, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser's expense. This warranty does not apply to any damage or defect caused by negligence, abuse, misuse, unauthorized alteration, shipping, handling, or part wear and tear as a result of normal use. -
Page 4: Features
FEATURES MACHINE FEATURES Drop Weight Tensioner with 8 to 90 lbs Tension Range and Permanently Engraved Weight Scale Professional Six Point “Quick Mount” Racquet Mounting System- Accommodates All Racquets Professional “Quick Action” Dual Action, Rotating, Composite Fixed String Clamps with Diamond Dust Coating ... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Winder Support Stand Installation Remove the M5 bolts from the 2 brackets located in the rear slots of the machine base using the 5MM hex key. Slide the brackets to the right end of the base and position the winder stand over the brackets aligning the holes in the base of the winder stand with the holes in the brackets. - Page 6 ASSEMBLY INSTRUCTIONS Support Post Installation To install the support posts you must fi rst remove the turntable end cap by grasping the sides of the end cap and removing it, to gain access to the inside of the turntable. Repeat procedure on the opposite side of the turntable.
-
Page 7: Mounting The Frame
ASSEMBLY INSTRUCTIONS String Clamp Installation The post of the string clamp and tube of the string clamp base are treated with grease to provide protection against corro- sion during shipping. Remove any exces- sive grease with a clean cloth prior to use. The post and tube may also be cleaned with isopropyl alcohol. - Page 8 MOUNTING THE FRAME Frame Shoulder Support Adjustment Being sure the shoulder supports are free to swivel in their mountings, simultaneously rotate the shoulder support adjustment knobs clockwise until both shoulder supports gently and squarely contact the frame. Frame Shoulder Support Adjustment The shoulder supports are designed to rotate and can be adjusted to provide maximum support to the racquet frame.
-
Page 9: Stringing The Frame
Badminton Shoulder Support Protec- tion Pad Installation Slide the badminton shoulder support cover over the shoulder supports. There is no need to remove the tennis shoulder supports. Note: An optional badminton frame support for the head of the racquet is available. STRINGING THE FRAME Setting Tension To set the stringing tension, loosen the... - Page 10 STRINGING THE FRAME String Clamp Operation The fi xed clamps are of a dual action de- sign. The string clamp and the clamp base operate independently of one another. To clamp a string, lift the clamp head and place the string between the jaws. Depress the clamp head lever to secure the string.
- Page 11 STRINGING THE FRAME Gripping the String While holding the tension bar slightly above horizontal, wrap the free string clockwise around the gripper drum once and position between the gripper jaw. Gently turn the gripper clockwise while squeezing the jaws together until all slack in the string is removed.
- Page 12 STRINGING THE FRAME Clamping the String Secure the tensioned main string using the remaining fi xed clamp. Release the string from the gripper by raising the ten- sion arm. Repeat the procedure for all of the remain- ing main strings and tie off following the racquet manufacturers recommendations.
-
Page 13: Additional Features
ADDITIONAL FEATURES Storage Drawers There is one storage drawer located in the base of the machine. The drawer opens from the right side of the base and lock into the end cap with a spring loaded latch. To open the drawer depress the latch in the face of the drawer and slide it to the right. -
Page 14: Pathfinder Awl
PATHFINDER AWL The machine includes the pathfi nder string- ing awl which creates a pathway between or around strings to make inserting a string through blocked grommets easier and quicker. Insert the awl through the grommet hole in the same manner as for traditional awls. The Pathfi... -
Page 15: Maintenance & Adjustments
MAINTENANCE & ADJUSTMENTS Turntable Bushing Adjustment The turntable bushing is adjusted at the fac- tory for optimum performance. After time and use, the turntable bushings may need minor adjustment. An adjustment is indicated when noticeable turntable looseness or wobble occurs while stringing. To adjust the fi... -
Page 16: Troubleshooting Tips
TROUBLESHOOTING TIPS PROBLEM SOLUTION String slips in clamps - Adjust gap between clamp jaws - Clean clamp jaws String slips in gripper - Clean gripper jaws - Make sure string is wrapped over top gripper prior to inserting between gripper jaws String clamp base slips on turntable - Clean bottom of clamp &... -
Page 17: Notes
NOTES... -
Page 18: Parts List
PARTS LIST PART # DESCRIPTION PART # DESCRIPTION TURNTABLE BUSHING SUPPORT POST CAP SCREW BASE CORNER CAP SET SCREW- M5x6 TURNTABLE WASHER BASE END CAP WASHER RUBBER FOOT FRAME SUPPORT SLIDE TT RISER RING TENSION BAR SMALL DRAWER TENSION BAR CAP QM ARM (LONG) RIGHT DROP WEIGHT KNOB QM ARM (LONG) LEFT... -
Page 19: Parts Drawing
PARTS DRAWING MCFCT MQAC11 MMSPP 146A MRSG MFSPP11 MBMSP11... - Page 20 MMAN-36 (MGX6F-12) GAMMA SPORTS 200 Waterfront Drive Pittsburgh, Pennsylvania 15222 Phone: 800.333.0337 Fax: 412.323.0317 Visit our website at www.gammasports.com Copyright 2012 GAMMA Sports - All Rights Reserved...
