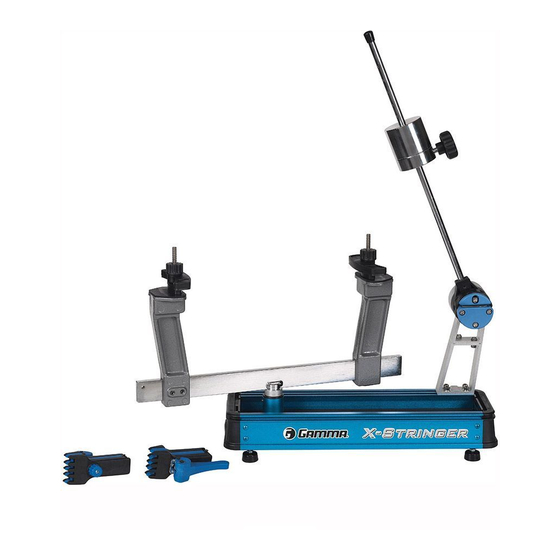

Summary of Contents for Gamma X-STRINGER X-2
- Page 1 WNER'S MANU WNER'S MANU AL Issue 1 - December 2003 Issue 1 - December 2003 Issue 1 - December 2003 Issue 1 - December 2003 Issue 1 - December 2003 Copyright 2003 GAMMA - All Rights Reserved Provided by www.gssalliance.com...
-
Page 2: Table Of Contents
EQUIPMENT. Should any defects develop under normal use, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser's expense. This warranty does not apply to any damage or defect caused by negligence, abuse, misuse, unauthorized alteration, shipping, handling, or part wear and tear as a result of normal use. -
Page 3: Assembly Instructions
ASSEMBLY INSTRUCTIONS Installing the Turntable Place the turntable ring spacer on the post of the turntable. Insert the turntable center post into the bush- ing assembly of the machine base. Installing the Support posts Slide each support post onto the end of the turntable bar. - Page 4 ASSEMBLY INSTRUCTIONS Winder Support Stand Installation Attach the winder support stand to the ma- chine base using the 5MM hex key (in- cluded) by sliding the 2 brackets into the 2 rear most grooves. Then align the right side of the stand with the right end of the base. Tension Bar Stop Screw Raise the Tension Bar to an upright position.
-
Page 5: Mounting The Racquet
MOUNTING THE RACQUET Installing the Racquet Support Adapters The GAMMA X-2 is supplied with two styles of Racquet Support Adapters. A thick profile adapter for widebody racquets and a thin profile adapter for conventional racquet frames. The Adapters are also tapered, use the highest side of the adapter that does not interfere with the string grommet holes. -
Page 6: Stringing The Frame
STRINGING THE FRAME Setting Tension The drop weight is of a two piece design. When assembled, it will accomodate ten- sions from 20 lbs. to 90 lbs. For tensions from 8 to 20 lbs., remove the 5mm bolt on the face of the drop weight, and use the smaller portion of the weight as described above. - Page 7 STRINGING THE FRAME Clamping the First Main String Thread one end of the string through the adjacent grommet hole and pull excess by hand. Clamp both the center and the adja- cent string to each other on the inside of the frame.
- Page 8 Finishing the String Job Weave and tension the remaining cross strings and tie off at the specified grommet hole. Remove the strung racquet from the GAMMA X-2 in the reverse order of mounting.
-
Page 9: Pathfinder Awl
PATHFINDER AWL The GAMMA X-2 includes the Pathfinder stringing awl which creates a pathway be- tween or around strings to make inserting a string through tight grommets easier and quicker. Insert the awl through the grommet hole in the same manner as for traditional awls. -
Page 10: Parts List
PARTS LIST PART # DESCRIPTION PART # DESCRIPTION TURNTABLE BUSHING CLAMP PLATE BUSHING SET SCREW CLAMP PLATE PAD KNOB FRM. SUPP. ADPTR - SHORT TENSION BAR FRM.SUPP. ADPTR. - TALL SET SCREW TENSION BAR STOP SCREW TENSION BAR CAP TURNTABLE DROP WEIGHT KNOB SUPPORT POST FRONT WEIGHT... -
Page 11: Exploded Parts View
EXPLODED PARTS VIEW...
