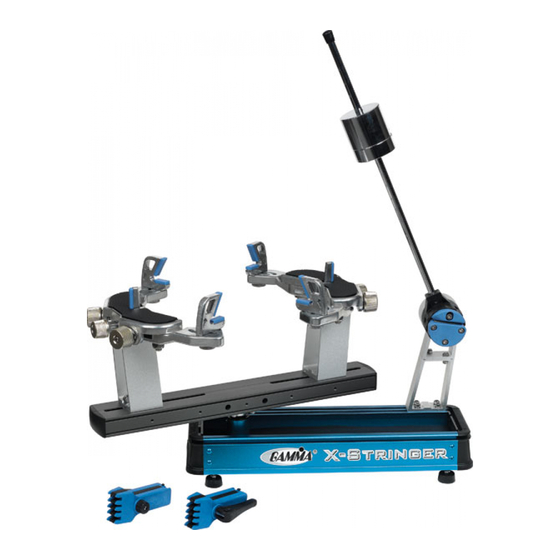

X-6
STRINGING MACHINE
OWNER'S MANUAL
Issue 4 - November 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gamma X-6

Summary of Contents for Gamma X-6

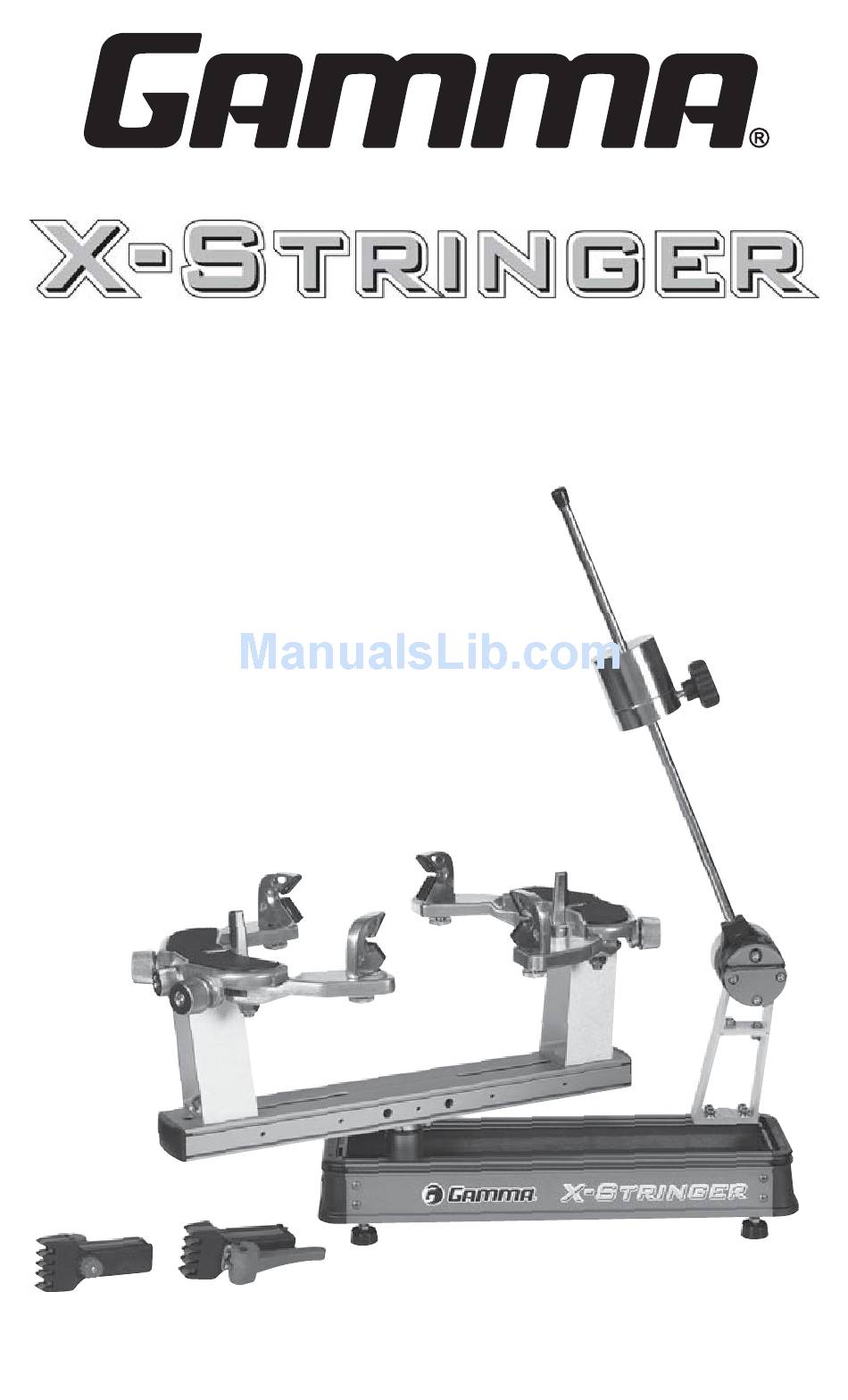

  • Page 1 STRINGING MACHINE OWNER'S MANUAL Issue 4 - November 2012...

  • Page 2: Table Of Contents

    Should any defects develop under normal use within the specifi ed time periods, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser's expense. This warranty does not apply to any damage or defect caused by negligence, abuse, misuse, unauthorized alteration, shipping, handling, or part wear and tear as a result of normal use.

  • Page 3: Features

    FEATURES MACHINE FEATURES Drop Weight Tensioner with 8 to 90 lbs Tension Range and Permanently Engraved Weight Scale  Professional Six Point “Quick Mount” Racquet Mounting System- Accommodates All Racquets  Parallel Jaw Rotating Ratchet Gripper with Diamond Dust Coated Gripping Surfaces ...

  • Page 4: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Winder Support Stand Installation Remove the M5 bolts from the 2 brackets located in the rear slots of the machine base using the 5MM hex key. Slide the brackets to the right end of the base and position the winder stand over the brackets aligning the holes in the base of the winder stand with the holes in the brackets.
  • Page 5 ASSEMBLY INSTRUCTIONS Support Post Installation To install the support posts you must fi rst remove the turntable end cap by grasping the sides of the end cap and removing it, to gain access to the inside of the turntable. Repeat procedure on the opposite side of the turntable.

  • Page 6: Mounting The Frame

    MOUNTING THE FRAME Adjusting the Frame Support Posts Loosen the lock bolts of the frame support posts and space them apart with the frame support slides separated by the approximate length of the racquet head. Although it is not required, it is good practice to center the sup- port posts on the turntable.
  • Page 7 MOUNTING THE FRAME Frame Shoulder Support Adjustment The shoulder supports are designed to rotate and can be adjusted to provide maximum support to the racquet frame. Rotate the support so that the pads contact the frame squarely when the arms are closed against the racquet.

  • Page 8: Stringing The Frame

    STRINGING THE FRAME Setting Tension To set the stringing tension, loosen the locking knob on the side of the drop weight. Slide the weight in the appropriate direction until the face closest to the string gripper is indexed with the desired tension mark on the tension bar.
  • Page 9 STRINGING THE FRAME Gripping the String While holding the tension bar slightly above horizontal, wrap the free string clockwise around the gripper drum once and position between the gripper jaw. Gently turn the gripper clockwise while squeezing the jaws together until all slack in the string is removed.
  • Page 10 STRINGING THE FRAME Clamping the String Clamp the tensioned string to the next ad- jacent string using the second string clamp. Release the string from the gripper by raising the tension arm. Repeat the procedure for all of the remaining main strings and tie off following the racquet manufacturers recommendations.

  • Page 11: Additional Features

    ADDITIONAL FEATURES Storage Drawers There is one storage drawer located in the base of the machine. The drawer opens from the right side of the base and lock into the end cap with a spring loaded latch. To open the drawer depress the latch in the face of the drawer and slide it to the right.

  • Page 12: Pathfinder Awl

    PATHFINDER AWL The machine includes the pathfi nder string- ing awl which creates a pathway between or around strings to make inserting a string through blocked grommets easier and quicker. Insert the awl through the grommet hole in the same manner as for traditional awls. The Pathfi...

  • Page 13: Maintenance & Adjustments

    MAINTENANCE & ADJUSTMENTS Turntable Bushing Adjustment The turntable bushing is adjusted at the fac- tory for optimum performance. After time and use, the turntable bushings may need minor adjustment. An adjustment is indicated when noticeable turntable looseness or wobble occurs while stringing. To adjust the fi...

  • Page 14: Parts List

    PARTS LIST PART # DESCRIPTION PART # DESCRIPTION TURNTABLE BUSHING LEFT DRAWER END CAP CAP SCREW BASE CORNER CAP SET SCREW- M5x6 SUPPORT POST WASHER BASE CORNER CAP WASHER BASE END CAP FRAME SUPPORT SLIDE RUBBER FOOT TENSION BAR TT RISER RING TENSION BAR CAP SMALL DRAWER DROP WEIGHT KNOB...

  • Page 15: Parts Drawing

    PARTS DRAWING MPFC MMSPP13 146A MRSG MFSPP11 MBMSP11...
  • Page 16 MMAN-37 (MGX6-12) GAMMA SPORTS 200 Waterfront Drive Pittsburgh, Pennsylvania 15222 Phone: 800.333.0337 Fax: 412.323.0317 Visit our website at www.gammasports.com Copyright 2011 GAMMA Sports - All Rights Reserved...
