This manual serves the following
ComNet Model Numbers:
RLMCSFP24DC
RLMCSFP48DC
RLMCSFPHV
RLMCSFPPOEHO
INSTALLATION AND OPERATION MANUAL
RLMCSFP Series
Electrical Substation-Rated
10/100/1000 Mbps Ethernet Media Converter
with Optional High-Output Power over Ethernet

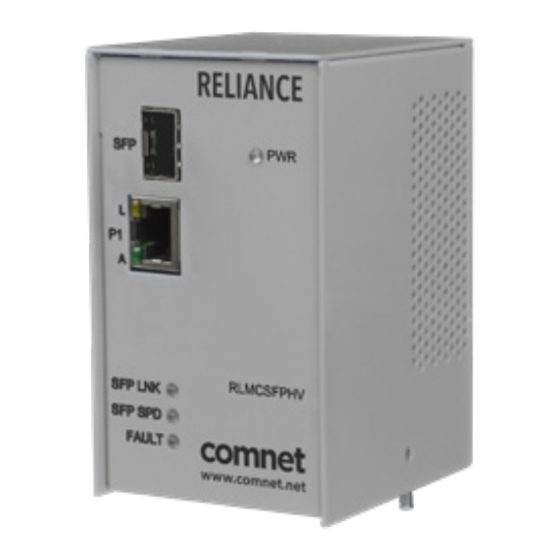

The ComNet RLMCSFP is designed for deployment in environments where high
levels of electromagnetic noise and interference (EMI) and severe voltage transients
and surges are routinely encountered.
The DIP-switch-selectable 100BASE-FX or 1000BASE-FX port supports conventional
CAT-5e/CAT-6 copper or optical transmission media by selection of the appropriate
ComNet SFP module.
User-selectable link fault pass-through provides remote indication of a network fault,
and a summary fault alarm provides a local or remote indication via Form C dry
contact closure in the event of loss of optical link or operating power.
The 10/100/1000BASE-TX port supports both auto-negotiation and automatic MDI/
MDI-X crossover for full and half-duplex operation; manual MDI/MDI-X switching is
not required.
The RLMCSFPPOEHO model additionally provides up to 60 Watts of Power over
Ethernet (PoE).
LED indicators confirm operational status.
See Figures 1 – 6 for complete operation details.
The RLMCSFP is DIN-rail or panel-mountable. See Figure A on the last page for
mounting instructions.
INS_RLMCSFP_REV–
Rev. 18 Sep 2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comnet RLMCSFP Series
Summary of Contents for Comnet RLMCSFP Series
- Page 1 Electrical Substation-Rated 10/100/1000 Mbps Ethernet Media Converter with Optional High-Output Power over Ethernet The ComNet RLMCSFP is designed for deployment in environments where high This manual serves the following levels of electromagnetic noise and interference (EMI) and severe voltage transients ComNet Model Numbers: and surges are routinely encountered.
- Page 2 INSTALLATION AND OPERATION MANUAL INSTALLATION AND OPERATION MANUAL RLMCSFP SERIES RLMCSFP SERIES Figure 1 – RLMCSFP Series Front Figure 2 – RLMCSFP24DC and Figure 3 – RLMCSFPHV Bottom Panel Panel RLMCSFP48DC Bottom Panel Table 1 – RLMCSFP Physical Feature Descriptions...
-
Page 3: Front Panel
INSTALLATION AND OPERATION MANUAL RLMCSFP SERIES Figure 4 – RLMCSFPPOEHO Figure 5 – RLMCSFPPOEHO Bottom Panel Front Panel Table 2 – RLMCSFPPOEHO Physical Feature Descriptions Call-out Description Manual Reference Unit Model Number (Be sure to refer to any specific instructions for your unit variation) –... - Page 4 INSTALLATION AND OPERATION MANUAL RLMCSFP SERIES Installation Instructions Figure 4 – DIP Switches DIP Switches on RLMCSFP24DC, DIP Switches on RLMCSFPHV Model RLMCSFP48DC, and RLMCSFPPOEHO Models Table 2 – DIP Switch Settings SW NAME OFF (DOWN) ON (UP) Link Fault Enable Port 1 Link Fault Pass-Through Disabled Link Fault Pass-Through Enabled –...
-
Page 5: Connect Power
Earth GND Vin2+ and VIN2- for PS 2 Contact the ComNet Design Center, or refer to the appropriate installation and operation manual when configuring and specifying power for a deployment. 8 - VERIFY FUNCTIONALITY See LED Indicator table below and Troubleshooting Guide if corrective action is needed. -
Page 6: Installation Considerations
T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET INS_RLMCSFP_REV– © 2020 Communications Networks, LLC. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. Rev. 18 Sep 2020 PAGE 6...
