Installation Manual
20002158, Rev DO
October 2021
™
™

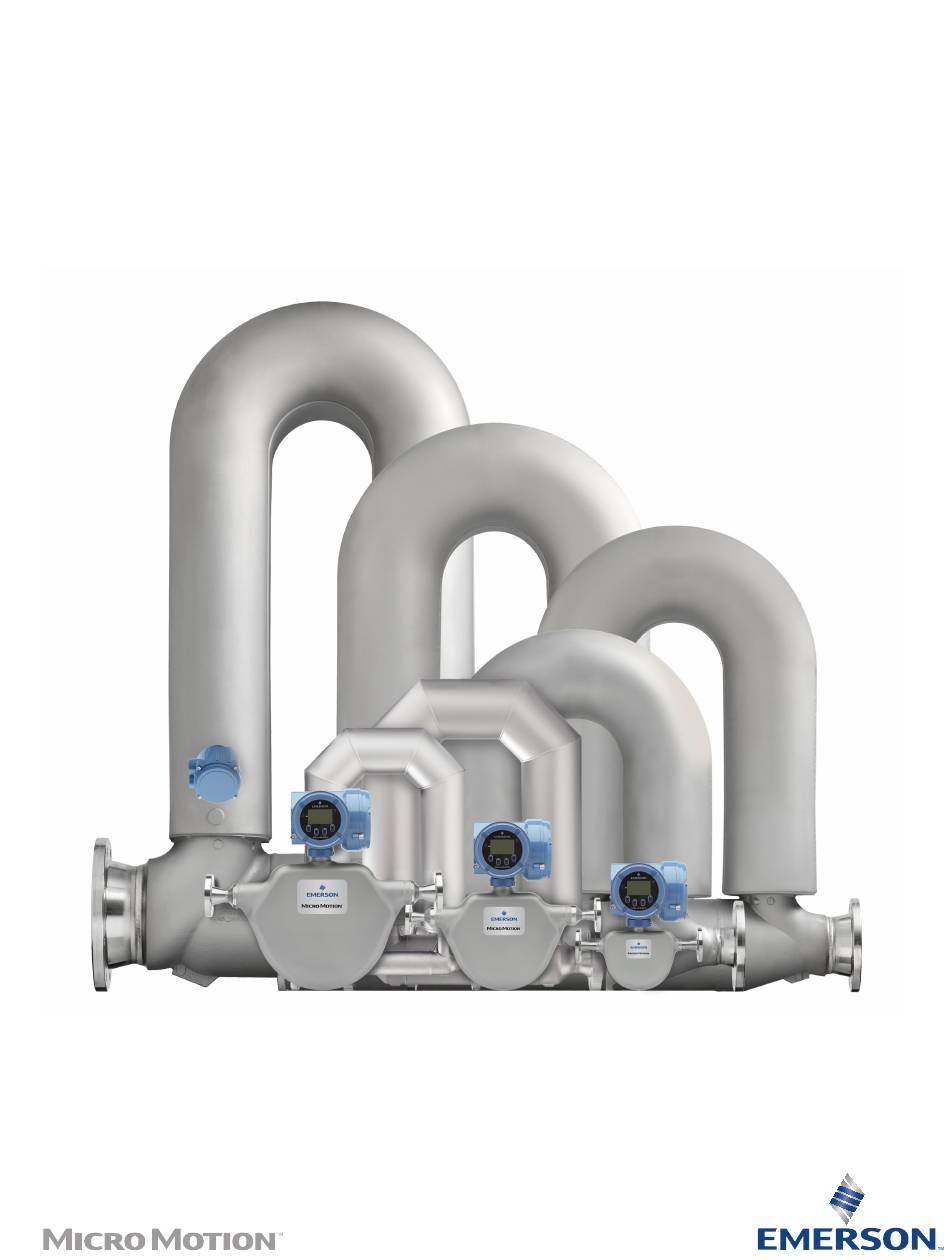

Micro Motion
ELITE
Coriolis Flow and
Density Sensors

Advertisement

Table of Contents
loading

Related Manuals for Emerson Micro Motion ELITE

Summary of Contents for Emerson Micro Motion ELITE

  • Page 1 Installation Manual 20002158, Rev DO October 2021 ™ ™ Micro Motion ELITE Coriolis Flow and Density Sensors...
  • Page 2 Micro Motion employees. Micro Motion will not accept your returned equipment if you fail to follow Micro Motion procedures. Return procedures and forms are available on our web support site at www.emerson.com, or by phoning the Micro Motion Customer Service department.

  • Page 3: Table Of Contents

    Installation Manual Contents 20002158 October 2021 Contents Chapter 1 Before you begin......................5 1.1 About this document........................5 1.2 Hazard messages......................... 5 1.3 Related documentation....................... 6 Chapter 2 Planning........................7 2.1 Installation checklist........................7 2.2 Best practices..........................8 2.3 Temperature limits........................9 2.4 Recommendations for hygienic and self-draining applications...........12 Chapter 3 Mounting.........................15...
  • Page 4 Contents Installation Manual October 2021 20002158 Micro Motion ELITE...

  • Page 5: Before You Begin

    Installation Manual Before you begin 20002158 October 2021 Before you begin About this document This document provides information on planning, mounting, wiring, and grounding the ELITE sensor. The information in this document assumes that users understand basic transmitter and sensor installation, configuration, and maintenance concepts and procedures. Hazard messages This document uses the following criteria for hazard messages based on ANSI standards Z535.6-2011 (R2017).

  • Page 6: Related Documentation

    • The hazardous area approvals documentation shipped with the sensor or available at www.emerson.com/flowmeasurement. • Micro Motion ELITE Coriolis Flow and Density Meters Product Data Sheet • Micro Motion 9-Wire Flow Meter Cable Preparation and Installation Guide • The transmitter installation and configuration and use guides...

  • Page 7: Chapter 2 Planning

    Installation Manual Planning 20002158 October 2021 Planning Installation checklist □ If you plan to mount the transmitter in a hazardous area: WARNING Make sure that the hazardous area specified on the approval tag is suitable for the environment in which the meter will be installed. □...

  • Page 8: Best Practices

    If the sensor is installed in a vertical pipeline, liquids and slurries should flow upward through the sensor. Gases should flow downward. • Keep the sensor tubes full of process fluid. • For halting flow through the sensor with a single valve, install the valve downstream from the sensor. Micro Motion ELITE...

  • Page 9: Temperature Limits

    Temperature limits may be further restricted by hazardous area approvals that are necessary to avoid potential injury to personnel and damage to equipment. Refer to the hazardous area approvals documentation shipped with the sensor or available at www.emerson.com/flowmeasurement for specific temperature ratings for each model and configuration.
  • Page 10 = Process temperature °F (°C) proc A = All available electronic options B = Remote mount electronics only C = Recommend special order cryogenic sensor options when operating at a process temperature below -148 °F (-100 °C) Micro Motion ELITE...
  • Page 11 Installation Manual Planning 20002158 October 2021 Ambient and process temperature limits for special order cryogenic ELITE meters 140 (60) –40 (–40) –148 (–100) –400 (–240) (80) proc = Ambient temperature °F (°C) = Process temperature °F (°C) proc A = All available electronic options B= Remote mount electronics only Ambient and process temperature limits for high temperature ELITE meters 140 (60)

  • Page 12: Recommendations For Hygienic And Self-Draining Applications

    For clean-in-place (CIP) applications, Micro Motion recommends using the generally- accepted flow velocity of at least 1.5 m/s for cleaning the sensor. • The gap between the electronics housing and sensor body should be inspected periodically. Manually clean this gap when necessary. Micro Motion ELITE...
  • Page 13 Installation Manual Planning 20002158 October 2021 Figure 2-1: Installation for self-draining applications A. Process pipeline B. Direction of normal process flow C. Direction of drainage Installation Manual...
  • Page 14 Planning Installation Manual October 2021 20002158 Micro Motion ELITE...

  • Page 15: Chapter 3 Mounting

    Installation Manual Mounting 20002158 October 2021 Mounting Recommendations for lifting heavy meters Heavy meters (those over 50 lb (23 kg), and even lighter meters that must be installed in elevated or difficult-to-reach places, usually require additional consideration when transporting or lifting them into their installation location. •...
  • Page 16 Figure 3-2: Center of gravity for large meters A. Typical center of gravity Note Complete and detailed dimensional drawings, including the location of the center of gravity, can be found through the product drawings link in our online store at www.emerson.com. Micro Motion ELITE...

  • Page 17: Mount The Sensor

    Installation Manual Mounting 20002158 October 2021 Mount the sensor NOTICE • Lifting the sensor by the electronics or purge connections can damage the device. • To reduce the risk of collecting liquid in the electronics housing, do not orient transmitters or sensor junction boxes with their conduit openings pointing upward. Procedure Mount the sensor.

  • Page 18: Rotate Junction Box Or 800 Core Processor (Optional)

    3. Rotate the housing to the desired position and in line with the alignment notches. 4. Seat the housing onto the feedthrough. 5. Replace the clamping ring and tighten the clamping ring screw. Micro Motion ELITE...

  • Page 19: Mount Electronics Of High-Temperature Sensors

    Installation Manual Mounting 20002158 October 2021 Mount electronics of high-temperature sensors The electronics of high-temperature sensors are attached to the end of a 32 in (813 mm) pre-installed flexible conduit. The electronics must be separately mounted on a wall or instrument pole.
  • Page 20 Figure 3-5: Removing electronics from the sensor case A. Detach electronics from sensor case and mount to a wall or instrument pole Procedure • For wall mounting, use four 0.3 in (8 mm) bolts to secure the mounting bracket. Micro Motion ELITE...
  • Page 21 Installation Manual Mounting 20002158 October 2021 Figure 3-6: Wall-mount components A. Wall or flat surface B. Electronics (enhanced core processor shown) C. Flexible conduit • For mounting to an instrument pole, use a 2 in (51 mm) U-bolt pipe kit to secure the mounting bracket.
  • Page 22 Mounting Installation Manual October 2021 20002158 Figure 3-7: Pole-mount components A. Instrument pole B. Electronics (enhanced core processor shown) C. Flexible conduit Micro Motion ELITE...

  • Page 23: Mount A Cmf010 Sensor To A Wall Or Pole

    Installation Manual Mounting 20002158 October 2021 Mount a CMF010 sensor to a wall or pole The CMF010 sensor has an optional mounting configuration for use with small or flexible pipeline. If the pipeline adequately supports the sensor, you can skip this procedure. Procedure 1.

  • Page 24: Mount A Cmfs007, Cmfs010 Or Cmfs015 Sensor In A Bracket

    2. Place the sensor into the bracket. 3. Secure the sensor in the bracket with the supplied 0.3 in (8 mm) U-bolts. Figure 3-9: Mounting bracket for CMFS007, CMFS010, and CMFS015 A. Mounting bracket B. Mounting holes C. Supplied U-bolts Micro Motion ELITE...

  • Page 25: Mount A Cmfs025, Cmfs040 Or Cmfs050 Sensor In A Wall Mount Bracket

    Installation Manual Mounting 20002158 October 2021 Mount a CMFS025, CMFS040 or CMFS050 sensor in a wall mount bracket The CMFS025, CMFS040, and CMFS050 sensors have an optional wall mounting bracket. Procedure 1. Assemble the bracket. Figure 3-10: Assembled wall mounting bracket for CMFS025, CMFS040, and CMFS050 2.

  • Page 26: Secure Wafer-Style Process Connections

    4. With your fingers, tighten the flange nuts. 5. Rotate the sensor alignment rings in the direction that pushes the bolts outward. Rotate both sensor aligment rings until the assembly is centered and tight. Micro Motion ELITE...

  • Page 27: Attach Extended Electronics

    Installation Manual Mounting 20002158 October 2021 Figure 3-13: Alignment ring usage A. Direction to rotate the alignment ring B. Direction the flange bolts are pushed C. Flange bolt 6. With a wrench, tighten the nuts in an alternating order. Attach extended electronics If your installation has a sensor with extended electronics, you will need to install the extender onto the sensor case.
  • Page 28 4. Fit the extender onto the feedthrough by carefully aligning the notches on the bottom of the extender with the notches on the feedthrough. 5. Close the clamping ring and tighten the clamping screw to 13 in lbf (1.47 N m) to 18 in lbf (2.03 N m). Micro Motion ELITE...

  • Page 29: Transmitter Power And I/O Wiring

    Installation Manual Transmitter power and I/O wiring 20002158 October 2021 Transmitter power and I/O wiring Options for wiring The wiring procedure you follow depends on which electronics option you have. Table 4-1: Wiring procedures by electronics option Electronics option Wiring procedure Integral transmitter The transmitter is already connected to the sensor.

  • Page 30: Connect 4-Wire Cable

    4. Cut the drain wires and let them float at both ends of the conduit. 4.2.3 Prepare a cable with user-supplied cable glands Procedure 1. Remove the core processor cover using a flat-blade screw driver. 2. Pass the wires through the gland nut and gland body. Micro Motion ELITE...
  • Page 31 Installation Manual Transmitter power and I/O wiring 20002158 October 2021 A. Gland body B. Gland nut 3. Terminate the RS-485 shield and drain wires to the housing internal grounding screw. 4. Assemble the gland according to vendor instructions. 4.2.4 Prepare a cable with Micro Motion-supplied cable glands Procedure 1.
  • Page 32 B. After heat is applied Trim 0.3 in (8 mm). gland type A. Trim 8. Assemble the gland by folding the shield or braid back over the clamping insert and 0.125 in (3 mm) past the O-ring. A. Shield folded back Micro Motion ELITE...
  • Page 33 Installation Manual Transmitter power and I/O wiring 20002158 October 2021 9. Install the gland body into the conduit opening on the core processor housing. 10. Insert the wires through the gland body and tighten the gland nut onto the gland body.

  • Page 34: Connect The 9-Wire Cable

    4. Tighten the screws to hold the wires in place. 5. Ensure integrity of gaskets, then tightly close and seal the junction box cover and all housing covers. 6. Refer to the transmitter installation manual for signal and power wiring instructions. Micro Motion ELITE...

  • Page 35: Chapter 5 Grounding

    Installation Manual Grounding 20002158 October 2021 Grounding The meter must be grounded according to the standards that are applicable at the site. The customer is responsible for knowing and complying with all applicable standards. Prerequisites Use the following guides for grounding practices: •...
  • Page 36 Grounding Installation Manual October 2021 20002158 Micro Motion ELITE...

  • Page 37: Chapter 6 Supplementary Information

    Installation Manual Supplementary information 20002158 October 2021 Supplementary information Purge the sensor case Prerequisites Make sure the following are available before beginning the purge procedure: ™ • Teflon tape • Argon or nitrogen gas sufficient to purge the sensor case If the sensor has purge fittings, they should remain sealed at all times.
  • Page 38 1 1/2 CMFS010 20 ft3/h (566.3 l/h) 1 1/2 CMFS015 20 ft3/h (566.3 l/h) 1 1/2 CMFS025 20 ft3/h (566.3 l/h) 4 1/2 CMFS040 20 ft3/h (566.3 l/h) 4 1/2 CMFS050 20 ft3/h (566.3 l/h) 4 1/2 Micro Motion ELITE...

  • Page 39: Pressure Relief

    Installation Manual Supplementary information 20002158 October 2021 Table 6-1: Purge time (continued) Sensor model Purge rate Time, in minutes CMFS075 20 ft3/h (566.3 l/h) CMFS100 20 ft3/h (566.3 l/h) CMFS150 20 ft3/h (566.3 l/h) 7. At the appropriate time, shut off the gas supply, then immediately seal the purge outlet and inlet connections with the purge plugs.
  • Page 40 Removing the purge fitting, blind plug, or rupture disks compromises the Ex-i Safety Certification, the Ex-tc Safety Certification, and the IP-rating of the Coriolis meter. Any modification to the purge fitting, blind plug, or rupture disks must maintain a minimum of IP66/IP67 Ratings. Micro Motion ELITE...
  • Page 41 Installation Manual 20002158 October 2021 Installation Manual...
  • Page 42 © 2021 Micro Motion, Inc. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. Micro Motion, ELITE, ProLink, MVD and MVD Direct Connect marks are marks of one of the Emerson Automation Solutions family of companies.
