HermanMiller FT360 Installation And Disassembly For Recycling Instructions

HermanMiller
Canvas Channel Surface Attached
Laminate Screen (FT360, FT361, FG360,
FG361) Installation and Disassembly for
Recycling Instructions
How to assemble your Surface
Attached Laminate Screen

Tools Required

Safety Glasses Phillips Bit

Assembly Instructions:

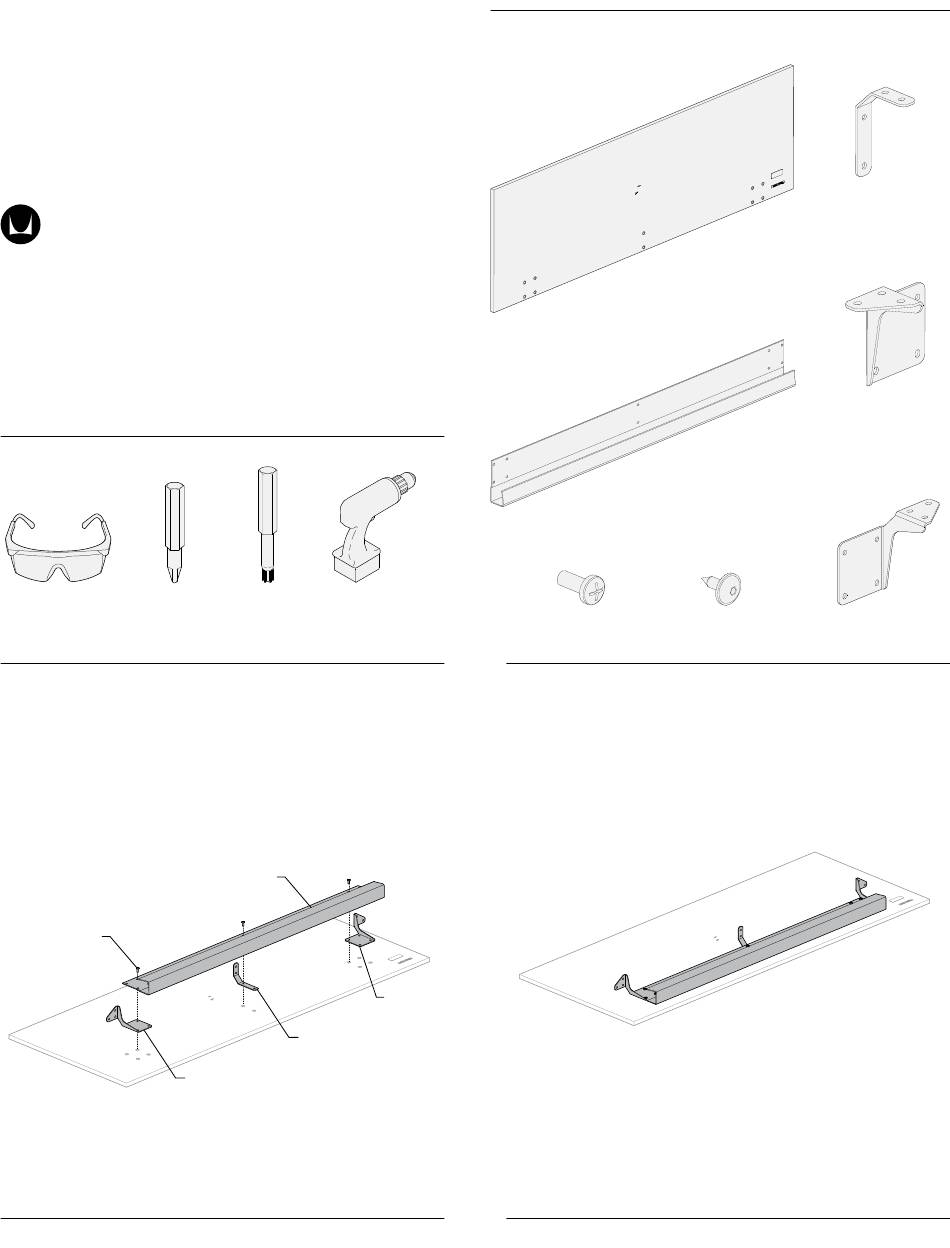

Step 1
1.1 Attach LH & RH Screen Brackets and Center screen bracket to
Screen with pan head screws.
Pan Head
Machine Screw
HermanMiller
Torx Bit Power Driver
Cable Trough
Center Screen
Bracket
LH Screen
Bracket

Parts Included

Pan Head Machine Screw
1.2 If screen is to be attached to end of table where a wall attached leg is
installed, switch middle bracket with end screen brackets. This will give
clearence between bracket and leg.
1.3 If Cable Trough is to be installed onto screen, place screen flat on
clean surface. Position brackets onto screen. Place Cable Trough over
brackets. Install pan head screws.
RH Screen
Bracket
1
Screen
Cable Trough
Torx Sheet Metal Screw
1BLY01 rev A
Center Screen Bracket
LH Screen Bracket
RH Screen Bracket
Assembly Instructions
