Y

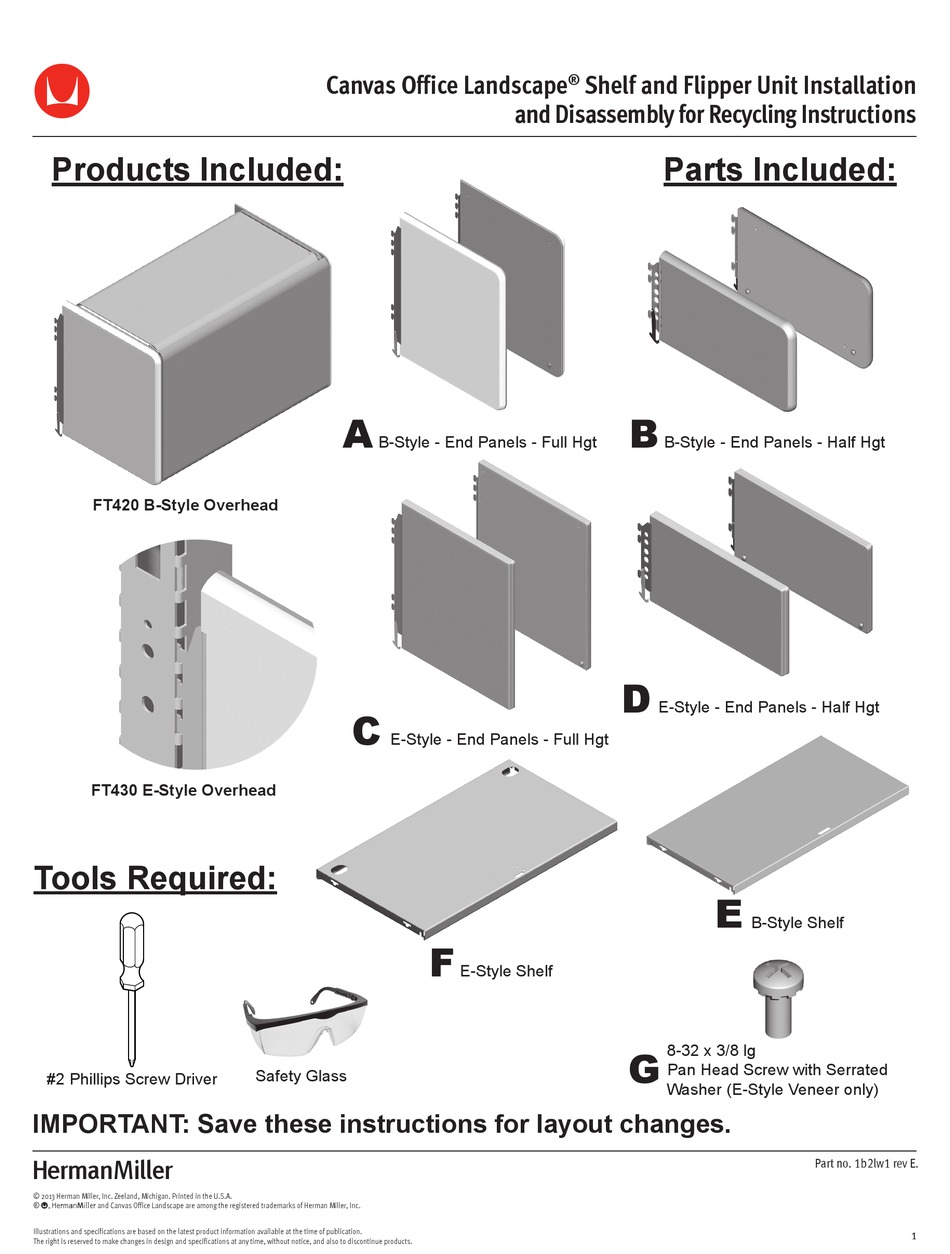

Products Included:
FT420 B-Style Overhead
FT430 E-Style Overhead
Tools Required:
#2 Phillips Screw Driver
IMPORTANT: Save these instructions for layout changes.
Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z and Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Canvas Office Landscape
A
B-Style - End Panels - Full Hgt
C
E-Style - End Panels - Full Hgt
F
Safety Glass
Shelf and Flipper Unit Installation
®
and Disassembly for Recycling Instructions
B
D
E-Style Shelf
G
Parts Included:
B-Style - End Panels - Half Hgt
E-Style - End Panels - Half Hgt
E
B-Style Shelf
8-32 x 3/8 lg
Pan Head Screw with Serrated
Washer (E-Style Veneer only)
Part no. 1b2lw1 rev E.
1
Advertisement
Related Manuals for HermanMiller Canvas Office Landscape FT420
Summary of Contents for HermanMiller Canvas Office Landscape FT420
- Page 1 Canvas Office Landscape Shelf and Flipper Unit Installation ® and Disassembly for Recycling Instructions Products Included: Parts Included: B-Style - End Panels - Full Hgt B-Style - End Panels - Half Hgt FT420 B-Style Overhead E-Style - End Panels - Half Hgt E-Style - End Panels - Full Hgt FT430 E-Style Overhead Tools Required:...
- Page 2 B-Style Overhead Door Assy E-Style Overhead Door Assy WARNING Tighten all screws. Failure to do so may cause product damage or personal injury or both. 1. End Panel Installation 1. If installing Flipper Door Unit under another Flipper Unit or Shelf, allow 1 1/2” vertical clearance between products for flipper door movement.
-
Page 3: Shelf Installation
2. Shelf Installation SEMS screws WARNING For E-Style Veneer Flipper Doors and Flipper Units, replace existing shelf mounting screws with provided sems screws (screw with built in serrated washer). Failure to comply may allow shelf to fall causing damage and/or personal injury. 1. - Page 4 3. Flipper Door Unit Installation 1. With Door/Cover Assembly in open position, place rear slots in door guides over rear mounting screws. 2. Slide Door/Cover Assembly back until front slots in Door Glides drop over front mounting screws. 3. Make sure Door/Cover Assembly is fully seated onto mounting screws.
- Page 5 4. Flipper Door Lock Installation NOTICE When keyed alike lock plugs are to be installed, install lock plug into shell in unlocked position (key teeth pointing down). Install lock plug completely until flush with lock shell flange to engage lock plug cam. Lock Shell Flange Lock Plug Cam Lock Plug...
- Page 6 Disassembly and Recycling: Materials Identification and Segregation: Where possible, plastic components are marked with ASTM recycling codes. Use these codes to identify material type for recycling. Non marked components should be treated as mixed plastic. Ferrous metals can be identified using a small magnet for recycling.
