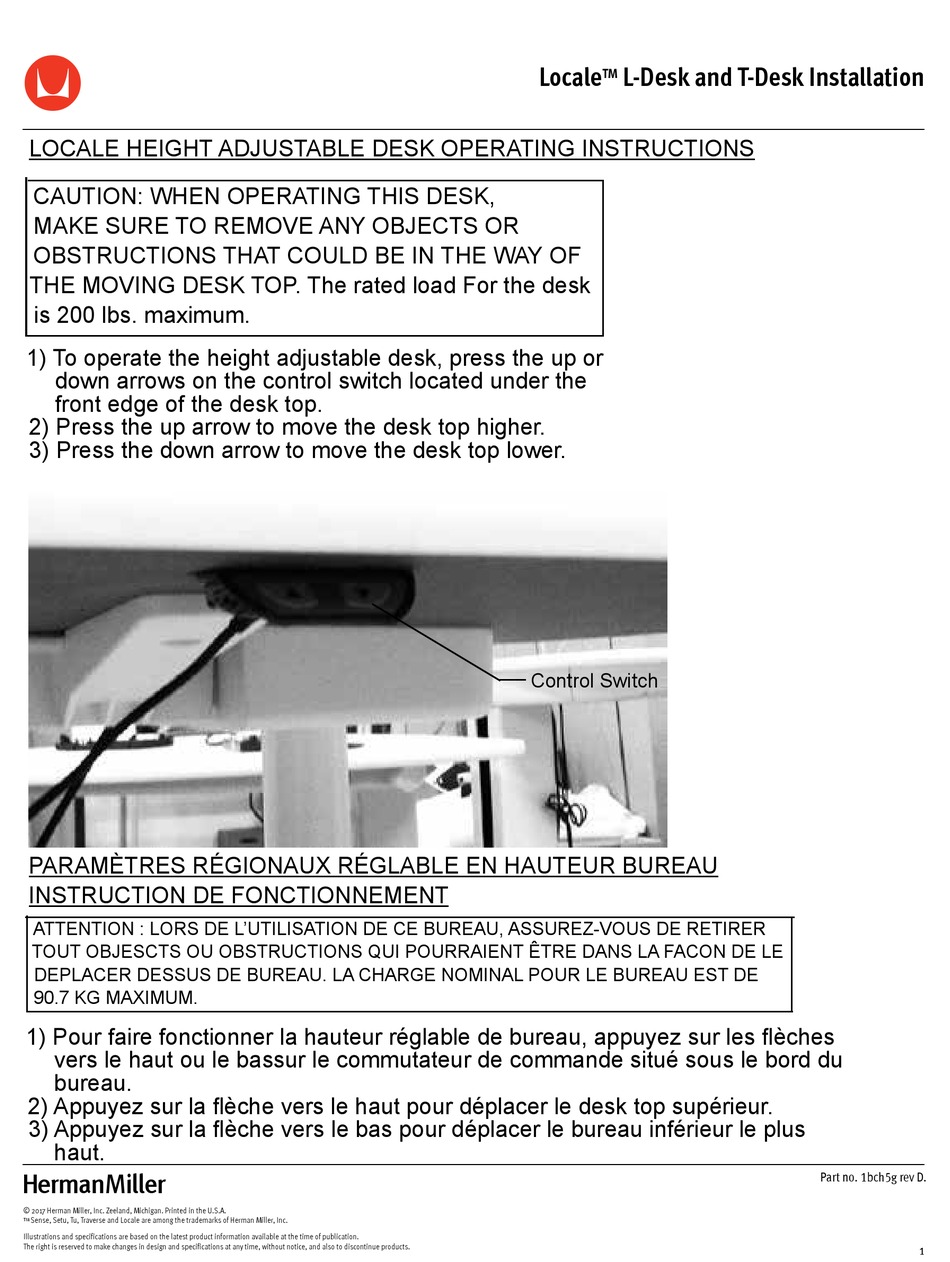

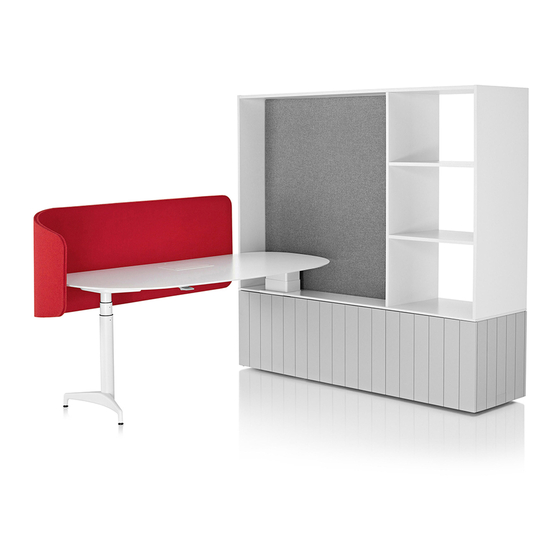

LOCALE HEIGHT ADJUSTABLE DESK OPERATING INSTRUCTIONS
CAUTION: WHEN OPERATING THIS DESK,
MAKE SURE TO REMOVE ANY OBJECTS OR
OBSTRUCTIONS THAT COULD BE IN THE WAY OF
THE MOVING DESK TOP. The rated load For the desk
is 200 lbs. maximum.
1) To operate the height adjustable desk, press the up or
down arrows on the control switch located under the
front edge of the desk top.
2) Press the up arrow to move the desk top higher.
3) Press the down arrow to move the desk top lower.
PARAMÈTRES RÉGIONAUX RÉGLABLE EN HAUTEUR BUREAU
INSTRUCTION DE FONCTIONNEMENT
ATTENTION : LORS DE L'UTILISATION DE CE BUREAU, ASSUREZ-VOUS DE RETIRER
TOUT OBJESCTS OU OBSTRUCTIONS QUI POURRAIENT ÊTRE DANS LA FACON DE LE
DEPLACER DESSUS DE BUREAU. LA CHARGE NOMINAL POUR LE BUREAU EST DE
90.7 KG MAXIMUM.
1) Pour faire fonctionner la hauteur réglable de bureau, appuyez sur les flèches
vers le haut ou le bassur le commutateur de commande situé sous le bord du
bureau.
2) Appuyez sur la flèche vers le haut pour déplacer le desk top supérieur.
3) Appuyez sur la flèche vers le bas pour déplacer le bureau inférieur le plus
haut.
Z
© 2017 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Sense, Setu, Tu, Traverse and Locale are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Locale
L-Desk and T-Desk Installation
TM
Control Switch
Part no. 1bch5g rev D.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Locale T-Desk and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HermanMiller Locale T-Desk

Summary of Contents for HermanMiller Locale T-Desk

  • Page 1 Locale L-Desk and T-Desk Installation LOCALE HEIGHT ADJUSTABLE DESK OPERATING INSTRUCTIONS CAUTION: WHEN OPERATING THIS DESK, MAKE SURE TO REMOVE ANY OBJECTS OR OBSTRUCTIONS THAT COULD BE IN THE WAY OF THE MOVING DESK TOP. The rated load For the desk is 200 lbs.
  • Page 2 L-Desk (Shown throughout instructions) T-Desk Part no. 1bch5g rev D. © 2017 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Sense, Setu, Tu, Traverse and Locale are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication. The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.

  • Page 3: Parts Included

    Parts Included: Base Assembly Upper Case M8 x 16 Hex Socket Head Machine Screw (4) Column Base Top M6 x 20 Socket Flange Head Screw(8) Column Shroud Wire Guide End Column M8 x 30 Socket Flat Head Work Surface Machine Screw(12) Control Switch Support Rail...
  • Page 4 Motor Cable Power Cable Cable Clamp Service Chain Control Box M5 x 12 Socket Button Head Cap Screw(4) Work Surface Mushroom Fastener(6) M5 x 12 Socket Button Flange Head Machine Screw(22) M5 x 16 Socket Button Head Flange Screw(6) Cable Tray Shelf Pins(8) Shelf(2) Wire Tray...

  • Page 5: Tools Needed

    M5 x 10 Flange Head Dowel Pin Screw(3) Column Leg Leg Glide M8 x 25 Hex Socket Head Machine Screw (4) Tools Needed: 3mm Metric 4mm Metric 5mm Metric 6mm Metric #2 Phillips Bit Power Driver Level Hex Bit Hex Bit Hex Bit Hex Bit Door...
  • Page 6 Outside Glide Inside Glide Bottom Shelf 4. Remove Bottom Shelves from Base. 5. Level base by adjusting Outside Glides first. Then adjust Inside Glides down to touch floor. (Note: View shown with top panel removed for clarity.) 6. If More than one unit are to be installeded in a run;...
  • Page 7 Access Cover 9. Remove Access Covers from Base End Panels. 10. Install Electrical Harnesses to Base. Break Out 11. Break out opening in Access Covers if required. 12. Return Access covers to Base. Part no. 1bch5g rev D. © 2017 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Sense, Setu, Tu, Traverse and Locale are among the trademarks of Herman Miller, Inc.
  • Page 8 13. Position Base Top (C) or Upper Case(B) onto Base. Secure to Base with 8 Pan Head Machine Screws (F). L-Desk, LH L-Desk, RH T-Desk 14. Turn Glides (AM) into Column Leg (AL). 15. Attach Column Leg to End Column (J) with 4 Hex Socket Head Machine Screws (AN) with the torque 130 inch lbs or 15 Nm force.
  • Page 9 Level Top Screws Bottom Screws 16. Assemble Column(s) (D) to Base with 4 Socket Head Machine Screws (E). 17. Fully Tighten Top Screws. Loosely tighten Bottom Screws. 18. Move lower end end of column until Level on top casting shows true. 19.
  • Page 10 21. Place End Column (J) bottom side up. 22. Set Rails (K) onto Column (J). 23. Position Work Surface Support (L) onto Rail. 24. Secure all together with 6 Flat Head Machine Screws (M). 25. Place the assembly onto the Column. 26.
  • Page 11 28. Level outboard round column by placing level on top of casting. 68.5” (1739mm) 29. Adjust Positioning of Outboard Leg on L-desk by measuring from edge of workbase to front glide of column. 56” (1425mm) 30. Adjust Positioning of Outboard Leg on T-desk by measuring from edge of workbase to front glide of column.
  • Page 12 31. For connecting to building power, refer to BRE01. and BRE02. installation instructions. 32. Connect lift wiring to Control Box (W). 33. Run cycle test on column. Raise column to full height. Part no. 1bch5g rev D. © 2017 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Sense, Setu, Tu, Traverse and Locale are among the trademarks of Herman Miller, Inc.
  • Page 13 34. Position Shroud (G) around top of Column. Press down onto Base Top. 35. Secure Shroud in place with 2 Shroud Clamps (AE) and Pan Head Screw (AF). 36. Insert Wire Guide (H) into Column. Press down to snap into Shroud and steel bracket.
  • Page 14 38. Fully raise the column before installing chain and cords. Feed your cords from the front all the way through the column and out the back side. 39. Place your cords into the chain, either end of the chain can be the top side. Then close all but the top 3 or 4 links open for ease of attaching brackets later.
  • Page 15 40. Feed energy chain through the grommet which is even with the work base top and then through the top of the plate on the leg column making sure the snap open side is facing towards the desk side of the leg. (Make sure the plastic grommet is installed before you feed the chain through) 41.
  • Page 16 42. After the chain is through the grommet and inside the work base install the bottom bracket to the chain. Part no. 1bch5g rev D. © 2017 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Sense, Setu, Tu, Traverse and Locale are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.
  • Page 17 BOLT BRACKET LEG BRACKET WASHER 43. Install the bottom bracket to the upper inner framework hardware that attaches the leg to the upper part of the work base. The bolt goes through bracket, then the triangular opening of the leg attachment bracket, with the washer and nut on the other side.
  • Page 18 44. At the top of the leg feed the cords into the trough area and close the top clasps that remained open on both ends of the chain. 45. Push the chain as far forward as possible while keeping the top bracket flush on the top plate.
  • Page 19 46. Screw bracket down to the top plate using the self-drilling screws. (NOTE: On L and T desks, only one side of the bracket will screw onto the top plate) Part no. 1bch5g rev D. © 2017 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Sense, Setu, Tu, Traverse and Locale are among the trademarks of Herman Miller, Inc.
  • Page 20 Pulled Taught Cable Loop 47. Wrap Control Switch Cable underneath z rails so it is trapped in gap between two castings. 48. Press Control Switch cable firmly into cable retaining guides in Work Surface Supports. Make loop in cable to take up slack in cable. CARE Point - cable needs to be taught to aid retention.
  • Page 21 51. Place Work Surface (V) bottom side up on clean, dry, padded surface. 52. Mount Control Box (W) onto Work Surface with Button head Screws (X). 53. Install 4 Mushroom Fasteners (Y) onto Work Surface with 4 Button Head Flange Screws (AJ). 54.
  • Page 22 58. Make all cable connections. 59. Pull Control Switch into position. Secure Switch to Work Surface with 2 Button Head Machine Screws (X). 60. Before installing Wire Cover (AA): Ensure Hinges are pushed furthest back and rotated as far up as possible. Z-Rail Slot 61a.
  • Page 23 62b. Alternatively, slide Left Hinge into Z-Rail then align Right Hinge. (Left Hand Desk shown) 63. Slide Right Hinge into Z-Rail. Right screw hole will align with Right Hand Desk. Left screw hole will align with Left Hand Desk. Part no. 1bch5g rev D. ©...
  • Page 24 Hook Slot 64. Lift and pull assembly to engage both hooks into slots in Z-Rail. 65. Install Button Head Flange Screw (Z). Repeat for other Hinge. 66. Place Wire Tray (AB) into Cable Cover. Part no. 1bch5g rev D. © 2017 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Sense, Setu, Tu, Traverse and Locale are among the trademarks of Herman Miller, Inc.
  • Page 25 67. Slide edge of Wire Tray Under 2 Tabs in Cable Cover. Mushroom Fastener Hook 68. Press in on middle of Wire Tray until lip fits under single bracket on Cable Cover. 69. Close cover by engaging Hooks on Cable Cover onto Mushroom Fasteners. Bottom Shelf 70.
  • Page 26 72. Return Access Panels and Doors, if removed, to Base. Disassembly and Recycling: Materials Identification and Segregation: Where possible, plastic components are marked with ASTM recycling codes. Use these codes to identify material type for recycling. Non-marked components should be treated as mixed plastic. Ferrous metals can be identified using a small magnet for recycling.
  • Page 27 Hinge Door Door 1. Disengage the hinge from the base and 2. Using a phillips head screw driver uninstall remove the door. the screws and remove hinge from door. Repeat step 1 and 2 to remove other side door. Back Panel Access Panel 3.
  • Page 28 Shelves End Panel Shelves 4. Using a straight head screw driver remove end panel. Remove the dowel pins and spreading bolt - minifix. 5. Remove the shelves from the base. Thin Top 6. Using the phillips head screw driver remove 8 screws under the inner top.
  • Page 29 Stretcher 8. Using a phillips head screw driver remove screws from stretcher and remove the stretcher from the inner side panel. Divider 9. Using a phillips head screw driver loosen the screw bolts from the front RH divider and LH divider. Remove the both dividers from back dividers. Part no.
  • Page 30 Hinge Clip Divider 10. Using a phillips head screw driver loosen the screws and remove the screws and hinge clips from the panel. 11. Using a phillips head screw driver loosen the screws from hot box weldment lower and upper and remove the screws and panels. Part no.
  • Page 31 12. Using a phillips head screw driver loosen the screws and separate the panels. Part no. 1bch5g rev D. © 2017 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. Sense, Setu, Tu, Traverse and Locale are among the trademarks of Herman Miller, Inc. Illustrations and specifications are based on the latest product information available at the time of publication.
