FT292.MLN:

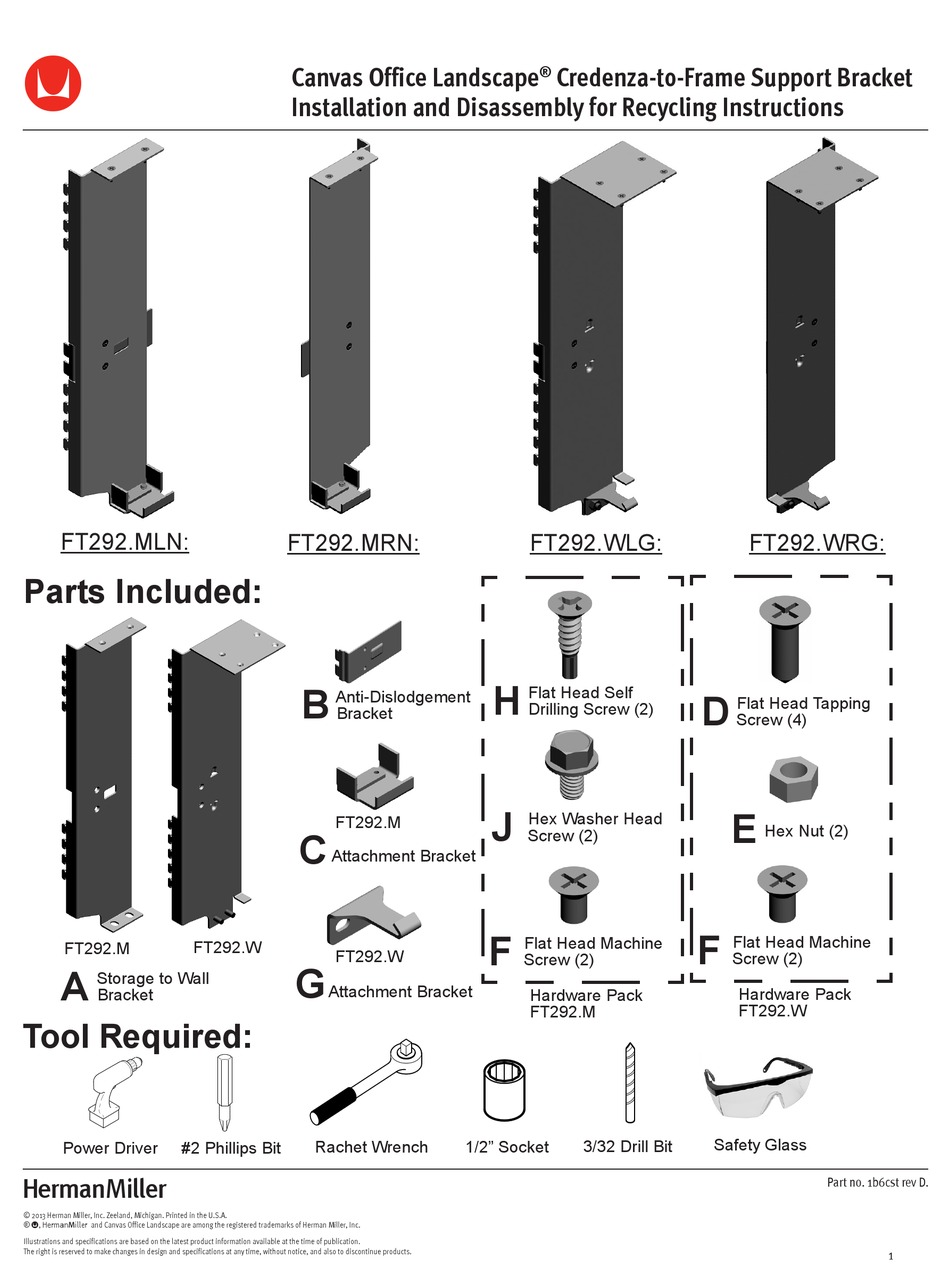

Parts Included:
FT292.W
FT292.M
A
Storage to Wall
Bracket
Tool Required:
Power Driver
#2 Phillips Bit
Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z and Canvas Office Landscape are among the registered trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
Canvas Office Landscape
Installation and Disassembly for Recycling Instructions
FT292.MRN:
B
Anti-Dislodgement
Bracket
FT292.M
C
Attachment Bracket
FT292.W
G
Attachment Bracket
Rachet Wrench
1/2" Socket
Credenza-to-Frame Support Bracket
®
FT292.WLG:
H
Flat Head Self
Drilling Screw (2)
J
Hex Washer Head
Screw (2)
F
Flat Head Machine
Screw (2)
Hardware Pack
FT292.M
3/32 Drill Bit
FT292.WRG:
D
Flat Head Tapping
Screw (4)
E
Hex Nut (2)
F
Flat Head Machine
Screw (2)
Hardware Pack
FT292.W
Safety Glass
Part no. 1b6cst rev D.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HermanMiller Canvas Office Landscape FT292.MLN
Summary of Contents for HermanMiller Canvas Office Landscape FT292.MLN
- Page 1 Canvas Office Landscape Credenza-to-Frame Support Bracket ® Installation and Disassembly for Recycling Instructions FT292.MLN: FT292.MRN: FT292.WLG: FT292.WRG: Parts Included: Flat Head Self Anti-Dislodgement Flat Head Tapping Drilling Screw (2) Bracket Screw (4) Hex Washer Head FT292.M Hex Nut (2) Screw (2) Attachment Bracket Flat Head Machine Flat Head Machine...
- Page 2 Assembly Instructions: Slots Teeth Studs 1. Insert teeth of Wall Bracket(A) into slots in frame at desired height. 2. Lift up on Wall Bracket(A). Rotate Bracket outward. 3. Insert Anti-dislodgement Bracket(B) behind Wall Bracket and into frame. 4. Install 2 Flat Head Machine Screws(F). 5 Remove Top from Storage Unit.
- Page 3 Dual Lock Fastener Pilot Holes Inner Top FT292.W Shown 6. Place Storage Unit under Wall Bracket. Align side to side to desired position. 7. Dual Lock Fastener may need to be repositioned on Storage Unit and Top for Wall Bracket attachment. 8.
- Page 4 FT292.M: 13. From under Storage Unit, position Attachment Bracket(C) onto bottom edge of storage unit . Slide Attachment Bracket onto Lip on Support Bracket. 14. Install 2 Hex Washer Head Screws. 15. Return Top to Storage Unit. Part no. 1b6cst rev D. ©...
- Page 5 Leveling: Wall Bracket Teeth Frame Teeth Rear Foot Front Foot Center Glide Frame Glide 16. Make sure Wall Bracket Teeth are fully engaged into Wall Frame. 17. Adjust Frame and Front Foot of credenza while Rear Foot of credenza should be elevated until unit is leveled. Then lower Rear Foot until touching floor.
