HermanMiller
Canvas Channel Beam Atteched
Laminate Screen (FW419) Installation and
Disassembly for Recycling Instructions

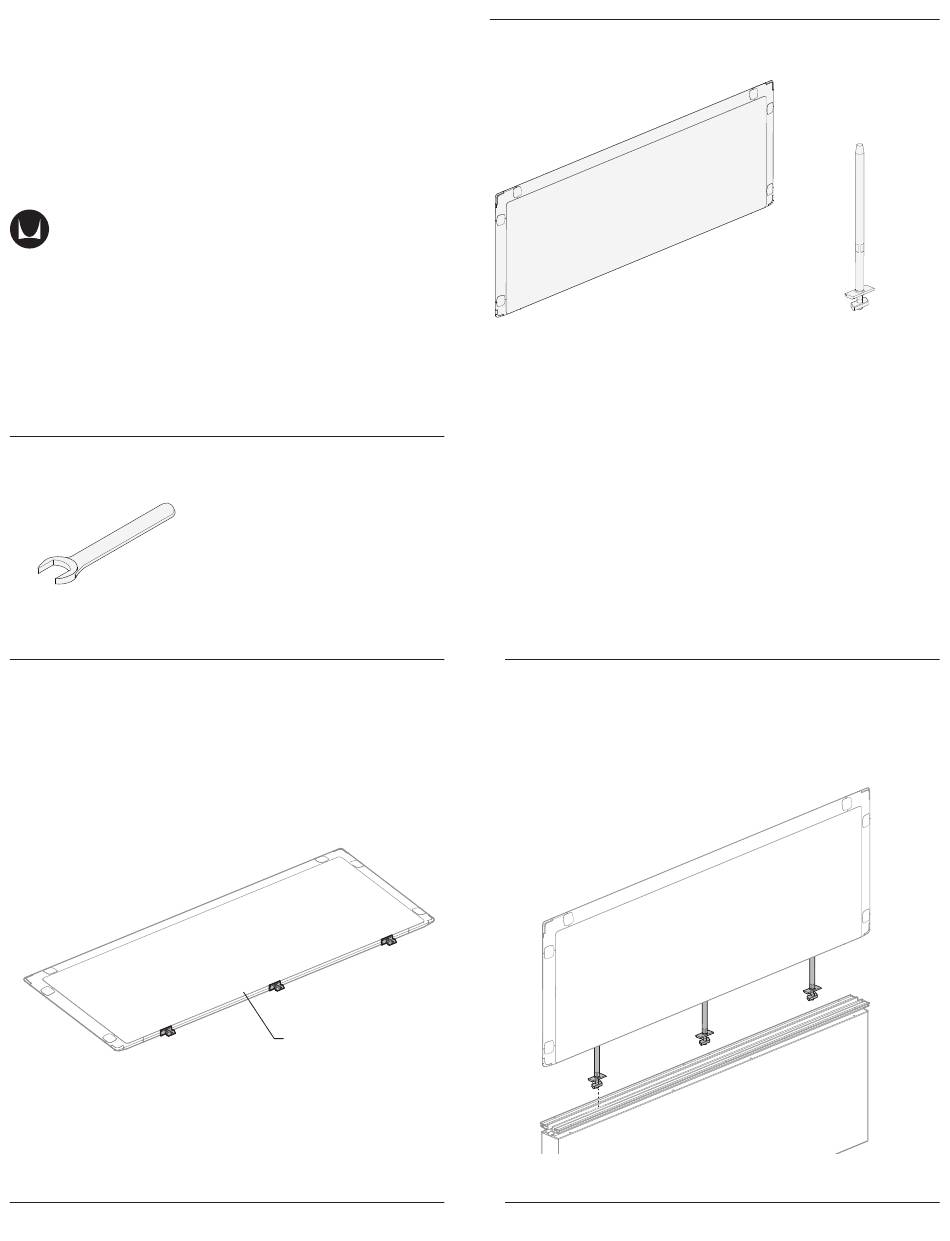

How to assemble your Beam Attached
Laminate Screen
Tools Required
7/16" Open End Wrench
Assembly Instructions:
Step 1
1.1 Align T-Nuts on ends of Bayonets with sides of screen.
HermanMiller
Screen
Parts Included
Screen
1.2 Place end of bayonets into center groove of beam.
1.3 Adjust bayonets along grove until all line up with holes in bottom of screen.
1.4 Push screen part way down bayonets.
1
1BM5WL rev A
Bayonet
Assembly Instructions
Advertisement
Related Manuals for HermanMiller FW419
Summary of Contents for HermanMiller FW419
- Page 1 HermanMiller Parts Included Canvas Channel Beam Atteched Laminate Screen (FW419) Installation and Disassembly for Recycling Instructions Screen Bayonet How to assemble your Beam Attached Laminate Screen Tools Required 7/16” Open End Wrench Assembly Instructions: 1.2 Place end of bayonets into center groove of beam.
- Page 2 To disassemble product, reverse steps 6 through 1. For more information about our products and services please visit us at hermanmiller.com or call (800) 851 1196. ©2017 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1BM5WL – A...
