HermanMiller
Fuld Disassembly for Recycling Instructions
How to Disassemble your Fuld chair
Tools Required
Flat head screwdriver
T-25 Torx head
screwdriver
T-40 Torx
T-27 Torx
driver
driver
Chair Disassembly

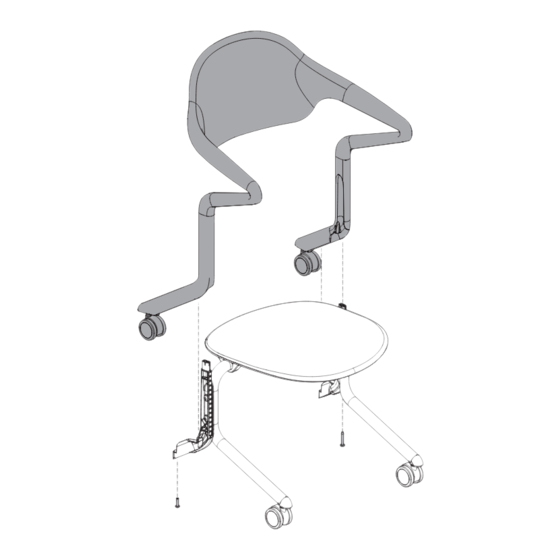

1.1 Remove bolts from underside of rear legs.
1.2 Remove backrest from remaining chair.
HermanMiller Fuld chair
Hammer
Torque Wrench
2.1 Remove bolts from LH-Leg insert and RH-leg insert.
2.2 Remove LH-Leg insert and RH-leg insert from Bent Tube.
1
1BWJ6Hrev A
Installation Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HermanMiller Fuld
Summary of Contents for HermanMiller Fuld
- Page 1 HermanMiller Fuld Disassembly for Recycling Instructions How to Disassemble your Fuld chair Tools Required Flat head screwdriver T-25 Torx head Hammer Torque Wrench screwdriver T-40 Torx T-27 Torx driver driver Chair Disassembly Step 2 Step 1 2.1 Remove bolts from LH-Leg insert and RH-leg insert.
- Page 2 Step 5 Step 6 5.1 Use flat head screwdriver to remove Clip Cover Retain for later. 6.1 Use T25 screwdriver to remove bolts. 6.2 Remove U-clip. Retain for later. HermanMiller Fuld chair 1BWJ6Hrev A Installation Instructions...
- Page 3 2.1 Remove bolts from LH-Leg insert and RH-leg insert. 1.1 Remove bolts from underside of rear legs. 2.2 Remove LH-Leg insert and RH-leg insert from Bent Tube. 1.2 Remove backrest from remaining chair. HermanMiller Fuld chair 1BWJ6Hrev A Installation Instructions...
- Page 4 Assembly until it comes free from leg tube. Step 5 Step 6 5.1 Use flat head screwdriver to remove Clip Cover Retain for later. 6.1 Use T25 screwdriver to remove bolts. 6.2 Remove U-clip. Retain for later. HermanMiller Fuld chair 1BWJ6Hrev A Installation Instructions...
- Page 5 8.1 Remove dampener from Seat. Retain for later. For more information about our products and services please visit us at hermanmiller.com or call (800) 851 1196. ©2023 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1BWJ6H- A HermanMiller Fuld chair...
