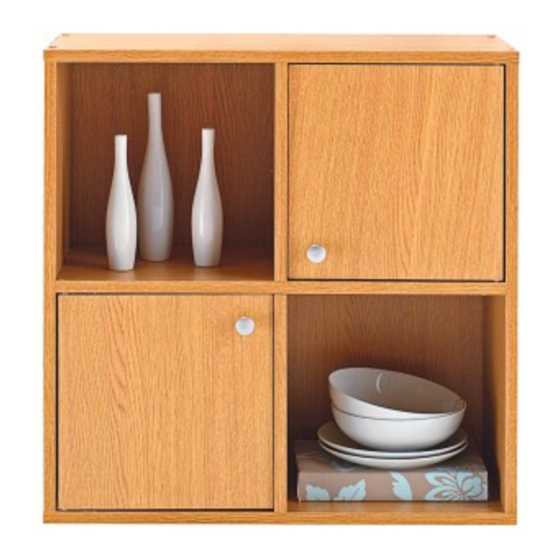

Boston Basic Modular 2 Half Door
Assembly Instructions
Dimensions
Width - 60cm
Depth - 30cm
Height - 60cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
- Please keep for future reference
609/0069
609/2610
610/8937
413/6815
414/1941
Version 3 Date: 19/03/15
Advertisement
Related Manuals for Argos Boston Basic Modular 2 609/0069
Summary of Contents for Argos Boston Basic Modular 2 609/0069
- Page 1 Width - 60cm Depth - 30cm Height - 60cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Version 3 Date: 19/03/15...
-
Page 2: Care And Maintenance
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • To reduce components and tools listed on or put weight on the product, the likelihood of the following pages. - Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Pilot holes for guidance only Vertical support x 2 Top/Bottom panel x 2 (60 x 29.5cm)
- Page 4 Components - Fittings Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required. 25mm Screw x 2 Handle x 2 Metal plate x 2 Door hinge x 4 40mm Screw x 8 Nail x 20 Door stopper x 2...
- Page 5 Assembly Instructions Step 1 Attaching door stoppers Door stoppers onto the Vertical supports Finished front edge Step 2 Attaching metal plates & door hinges Metal plates onto the Door panels Insert the Door hinges into the Door panels...
- Page 6 Assembly Instructions Step 3 Attaching the side panels Finished front edge Insert Dowels into the Shelf and Vertical supports supports onto Finished front edge the Shelf Fix the onto the Shelf Finished front edge...
- Page 7 Assembly Instructions Step 4 Attaching the door panels Carefully locate the Door panel onto the unit, Finished aligning the Door hinges front edge with the corresponding holes. Bottom panel onto the unit. Note: Ensure the Door hinges are aligned with the corresponding holes.
- Page 8 Assembly Instructions Step 5 back surface Fixing back panel Attach Back panels onto the unit using Nails Important: The unit MUST be ‘square’ when back is attached. back edge Step 6 Attaching the handles Handles onto the Door panels...
- Page 9 Note: It would be useful to ask someone to help you at the stage. With help, place the unit in the intended position. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
