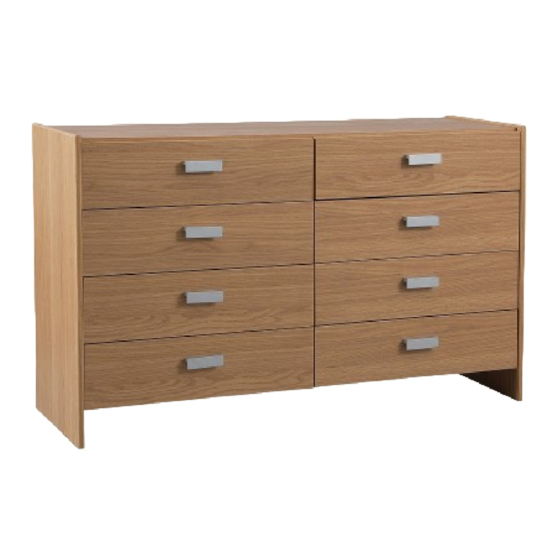

Capella - 4 + 4 Drawer Chest
Assembly Instructions -
Dimensions
Width -123.5cm
Depth - 39cm
Height - 74.4cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
249/6674
268/2433
247/6058
246/7081
MADE IN
BRITAIN
Issue 6 - 28/03/14
Advertisement
Related Manuals for Argos Capella 249/6674
Summary of Contents for Argos Capella 249/6674
- Page 1 Capella - 4 + 4 Drawer Chest Assembly Instructions - 249/6674 Please keep for future reference 268/2433 247/6058 246/7081 Dimensions Width -123.5cm Depth - 39cm MADE IN Height - 74.4cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 6 - 28/03/14...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 41kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below 3 Top (D1042A) Left Side (D1039A) Right Side (D1040A) (1205 x 369mm) (744 x 390mm) (744 x 390mm) Rail...
-
Page 4: Tools Required
If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. - Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 4 left Note: The right drawer hand drawer fronts front has a shallow and 4 right hand identification mark.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer fronts Step 5 Fit the drawer back Fit the drawer back . between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the left side Place 4 runners the left side . Slide back the top of the Profiled front edge runner and use the 1st hole from the front to fit the 1st screw Slide the runner back Profiled the other way and use front edge...
- Page 8 Assembly Instructions Step 9 Prepare the right side Place 4 runners the right side . Slide back the top of the runner and use the 1st hole from the front to fit the 1st screw Profiled front edge Slide the runner back the other way and use the 3rd hole from the back to fit the 2nd screw...
- Page 9 Assembly Instructions Step 10 Prepare the upright Place 4 runners the upright . Slide back the top of the Finished front edge runner and use the 1st hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into the corresponding hole...
- Page 10 Assembly Instructions Step 11 Prepare the top Tap 4 wooden dowels into the top shown. 10mm Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. Finished Insert 4 large locking front edge nuts into the top...
- Page 11 Assembly Instructions Step 13 Join the right side and Push the top onto the right side shown. Profiled front edge Use a screwdriver to tighten the 2 large locking nuts fitted to the top Note: To make it easier to fit the Note: Turn the large side panels, place polystyrene locking nuts...
- Page 12 Assembly Instructions Step 15 Fit a rail Push one of the rails onto the right side Use a screwdriver to tighten the large locking fitted to the rail Fix the rail to the bottom edge of the upright using screw Step 16 Fit the other rail Push the other rail...
- Page 13 Assembly Instructions Step 17 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 4 large locking nuts fitted to the top and rails Step 18 Fit the support Fit the support to the rail at the back of the unit using 2 screws...
- Page 14 Assembly Instructions Step 19 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
- Page 15 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 16 ALR2994...
