T H R O U G
R E A D
S TA R T I N
B E F O R E
I N S 1 1111 P o
I T c o N T A
N I N G S c o
A N D WA R
Y A N D u s
A S S E M B L

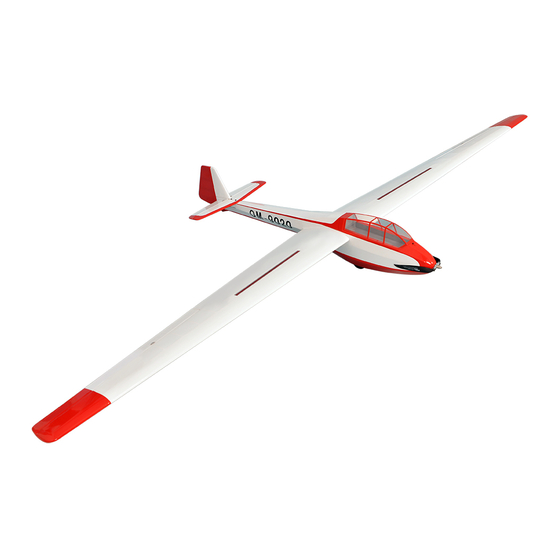

SPECIFICATION
- Wingspan: 3300mm (130 in)
- Length: 1590mm (62,6 in)
- Flying weight: 3400gr - 3600gr
- Wing area: 71 dm2
- Wing loading: 55g/dm2
- Wing type: HQ airfoils
- Covering type: Genuine ORACOVER®
- Radio: 4 channel - 4 mini hi-torque servo :
2 aileron; 1 elevator; 1 rudder (not included)
- Recommended receiver battery:
4,8- 6.0V 1000/1 S00mAh NiMH (not included)
- Flap: 2 electric flaps 440mm (not included)
- Spinner size: Aluminum H hub propeller holder,
shaft 6mm (not included)
- Motor: brushless outrunner 1200W,
800 KV (not included)
- Gravity CG: 16mm (0.62 in) Back from
the leading edge of the wing, at the fuselage
M A N UA L
H T H I S
R U C T I O N
G c o N S T
S T R U C T I
ffT A N T I N
G T H E
N C E R N I N
1111 0 D E L -
E O F TH I S
,
O N S
- Control throw Ailerons: Low: 9mm up/down,
10% expo; High: 12mm up/down, 10% expo
- Control throw Elevators: Low: 9mm up/down,
12% expo; High: 12mm up/down, 12% expo
- Control throw Rudder: Low: 30mm right/left,
15% expo; High: 45mm right/left, 15% expo
- Experience level: Intermediate
- Plane type: Glider
RECOMMENDED MOTOR AND BATTERY SET UP
- Motor: RIMFIRE .32 (not included)
- Lipo cell: 4cells (not included)
- Esc: 40-60A (not included)
� UNDER SAFETY PRECAUTIONS
This radio control model is not a toy!
e
II is highly recommended that first-time builders seek advice of
experienced modelers before beginning assembly.
• Assemble this kit only in places out of children's reach!
• Take enough safety precautions prior to operating this model.
You are responsible for this model's assembly and safe operation!
• Always keep this instruction manual ready at hand for quick
reference, even after completing the assembly.
EP
version
,. �
�
.... .
®
PHOENIX MODEL
Advertisement
Table of Contents
Related Manuals for Phoenix Model BERGFALKE
Summary of Contents for Phoenix Model BERGFALKE
- Page 1 T H R O U G R E A D R U C T I O N ® PHOENIX MODEL G c o N S T O N S S TA R T I N S T R U C T I...
-
Page 2: Table Of Contents
Thank you for purchasing Phoenix Model products. With over 20 years experience in production and fly testing, Phoenix Model is committed to bring the best quality products and good service to customers. Along with a team of creative engineers and skilled workers, we will always accompany with customers by our great experiences, fully enthusiasm ... -
Page 3: Warranty
Vacuum the parts and the work area to assemble and use this. thoroughly after working with fiberglass parts. In that Phoenix Model has no control over the final assembly or material used for final assembly, Phoenix SUGGESTION Model is not responsible for loss of use , or other incidental or consequential damages. -
Page 4: Flight Warnings
BERG FALKE INSTRUCTION MANUAL FLIGHT WARNINGS ADHESIVES AND REQUIRED TOOLS • When ready to fly, first extend the transmitter aerial. • Thin CA • Switch on the transmitter. • 30-minute epoxy • Switch on the receiver. • 6-minute epoxy • Check that the wings are correctly fitted to the •... - Page 5 BERG FALKE INSTRUCTION MANUAL • Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within the Team AMA Program Document. (AMA Document #718.) U) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A.) 3.
-
Page 6: Preparations
BERG FALKE INSTRUCTION MANUAL PREPARATIONS INSTALLING THE AILERONS Use a covering iron with a covering sock on 1. Test fit the ailerons to the wing with the hinges. high heat to tighten the covering if necessary. If the hinges don't remain centered, stick a pin Apply pressure over... -
Page 7: Installing The Ailerons Servos
BERG FALKE INSTRUCTION MANUAL INSTALLING THE AILERON SERVOS 4. Using the thread as a guide and using masking tape, tape the servo lead to the end of the 1. Install the rubber grommets and brass eyelets thread: carefully pull the thread out. When you onto the aileron servo. -
Page 8: Installing The Control Horns
BERG FALKE INSTRUCTION MANUAL 2 x 10mm TP Screw 2 x10mm '� ....8 Aileron < Bottom view > ► Set all scerws securely. If they come off during flight you will lose control of your aircraft! Tie the string. Pull out servo cord with string. -
Page 9: Installing The Aileron Linkages
BERG FALKE INSTRUCTION MANUAL INSTALLING THE AILERON LINKAGES 8. Insert the 90 degree bend down through the hole in the servo arm. Install one nylon snap keeper over the wire to secure it to the arm. Install the servo 1. Working with the aileron linkage for now, thread arm retaining screw and remove the masking tape one nylon clevis at least 14 turns onto one of the from the aileron. -
Page 10: Installing The Electric Air Brakes
BERG FALKE INSTRUCTION MANUAL INSTALLING THE ELECTRIC AIR BRAKES (NOT INCLUDED WITH THE Kill 1. Remove the covering from the top of the wing. 2. Install the air brake into the bay. Cut away film only. here Tie the string. ©... - Page 11 BERG FALKE INSTRUCTION MANUAL Assemble left and right Must be purchased separately! � sides the same way...
-
Page 12: Installing The Main Wheel
BERG FALKE INSTRUCTION MANUAL INSTALLING THE MAIN WHEEL 1. Secure the collars. 2. Glue the wooden plate to the fuselage. Wood 75mm Wheel Collars Wood Collars liilil l:tJ Apply epoxy glue... -
Page 13: Secure The Wing To The Fuselage
BERG FALKE INSTRUCTION MANUAL Wood Wood < Left view > < Bottom view > IAlil � Apply epoxy glue SECURE THE WING TD THE FUSELAGE Attach the wings to the fuselage and secure the 2. Slide the wings into the fuselage. Once flush adjust wing panels. -
Page 14: Horizontal Stabilizer Installation
BERG FALKE INSTRUCTION MANUAL HORIZONTAL STABILIZER INSTALLATION When you are sure that everything is aligned correctly, mix up a generous amount of 30 minute 1. Using a modeling knife, cut away the covering epoxy. Apply a thin layer to the top and bottom of from the fuselage for the stabilizer and remove it. -
Page 15: Installing The Vertical Stabilizer
BERG FALKE INSTRUCTION MANUAL Cut off shaded portion lfl Apply epoxy glue � - - - - - - - - - - - - - - - - A = A' ----------------------------------- INSTALLING THE VERTICAL STABILIZER 90 Deg ree =�... - Page 16 BERG FALKE INSTRUCTION MANUAL © - -c - - - - - - - JE--- - r;,;i Apply instant glue (CA glue, super glue). Secure nylon hinges with instant glue, being careful tail wing and elevator. © Align the center line of vertical fin with rudder.
-
Page 17: Installing The Rudder Pushrod
BERG FALKE INSTRUCTION MANUAL INSTALLING THE RUDDER PUSHROD 1. Locate the pushrod exit slot on the left side of the 11. With the rudder and rudder servo centered, fuselage. carefully place a mark on the rudder pushrod wire where it crosses the hole in the servo arm. 2. - Page 18 BERG FALKE INSTRUCTION MANUAL approx. 13mm □ □ □ Rudder Servo Rudder Rod Neutral Cut away film only. here. © Use this hole Pay close attention Cut off shaded portion Cut off excess. Must be purchased separately! Drill holes with the 11111 �...
-
Page 19: Installing The Elevator Push Rod
BERG FALKE INSTRUCTION MANUAL INSTALLING THE ELEVATOR PUSHRDD Locate one nylon servo arm, and using wire cutters, remove all but one of the arms. Using a 2mm drill bit, enlarge the third hole out from the 1. Locate the pushrod exit slot on the right side center to accommodate the elevator pushrod and left side of the fuselage. - Page 20 BERG FALKE INSTRUCTION MANUAL < Right side view. > Elevator Rod ► Neutral approx. 13mm Elevator Rod Set all screws securely. If they come off during flight you will lose control of your aircraft! Elevator Servo □ □ □ Must be purchased separately! ri;l Cut off shaded portion...
-
Page 21: Installing The Towing Line
BERG FALKE INSTRUCTION MANUAL INSTALLING THE TOWING LINE In this case, your glider can be towed by another plane. approx. 13mm Towing Servo Wood � Must be purchased separately! Pay close attention here! Assemble left and right � � sides the same way Drill holes with the 11111 �... -
Page 22: Installing The Receiver And Battery
BERG FALKE INSTRUCTION MANUAL INSTALLING THE SWITCH INSTALLING THE RECEIVER AND BATTERY 1. Plug the servo leads and the switch lead into the 1. The switch should be mounted on the fuselage side, opposite the muffler, close enough to the receiver. - Page 23 BERG FALKE INSTRUCTION MANUAL When rotating clock wise, change the connectio n of 2 wires. � Must be purchased separately!
-
Page 24: Balancing
BERG FALKE INSTRUCTION MANUAL M ust be purchased separately! BALANCING If the nose of the plane falls, the plane is nose heavy. To correct this first move the battery pack 1. It is critical that your airplane be balanced correctly. further back in the fuselage. - Page 25 BERG FALKE INSTRUCTION MANUAL 6mm Plastic Screw 9P1 1 1 1 1 1 1 1 1 1 1 1 111 1 1 1 1 1 1 1 1 1 1 1 1 1 1 111 111 1 ----------2 1 2 x 2 10mm Aluminum l----=========i:;;;:}...-.i 1 6mm 1Yx 1 2 00...
-
Page 26: Lateral Balance
BERG FALKE INSTRUCTION MANUAL ► In order to obtain the CG specified, reposition the receiver and other equipment. ► If not obtain the CG specified, add a weight and ► Do not fly before confirming the adjust. correct location of the CG. If the CG is incorrect, you lose control of your airplane which leads to accidents. -
Page 27: Flight Preparation Pre Flight Check
BERG FALKE INSTRUCTION MANUAL Aileron Control ' , .,. .,..,...""' -----,- ( ..,. , , ../ > � ' <)< - - - - - " .,. " ' � ) ----'- Elevator Control ... ' , .,. -- ,, ,... -
Page 28: For Your Radio Installation
BERG FALKE INSTRUCTION MANUAL FOR YOU R RADIO INSTALLATION BASIC CONN ECTION FOR AIRPLAN E AN D ADJ USTM ENT OF SERVOS Example of connection • For more information, refer to radio system instruction manual. • Follow instruction manual of Engine and Battery. ■... -
Page 29: Decoration
BERG FALKE INSTRUCTION MANUAL DECORATION < Top view > < Side view > < Side view > ORACCOVER #023 - Ferrari Red #01 0 - White... -
Page 30: Exploded View
EXPLODED VI EW � 2x10mm(TP) 4x 2 0mm Mount Nut li y y � � t 2x2omm � "' ..- r m ' \;I � � r-\ � © � � 3x4mm... - Page 31 1/C FLIGHT WARN I NGS Always operate in open areas, away Keep all onlookers (especially small from factories, hospitals, schools, THE PROPELLER IS DANGEROUS children and animals) well back from buildings and houses etc. NEVER fly Keep fingers, clothing (ties, shirt the area of operation.
