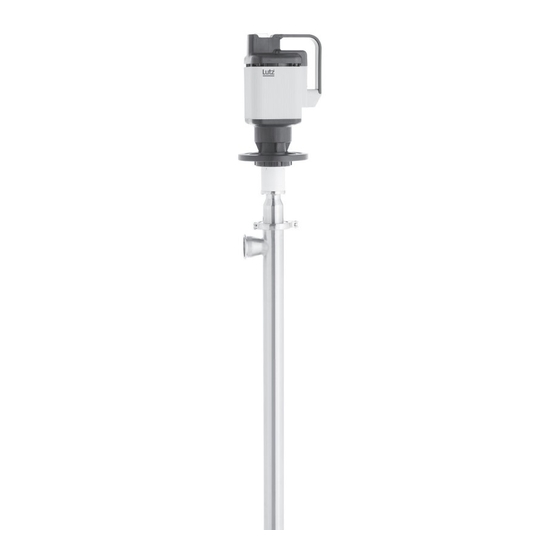

- Page 1 Translation of the original instructions ECCENTRIC SCREW DRUM PUMPS Type B70V-H-D SanitaryPlus B70V-H-SR SanitaryPlus B70V-H-D SanitaryPlus Ex B70V-H-SR SanitaryPlus Ex EC 1935/2004 Read this operating instructions before start up! To be retained for future reference.
- Page 3 Fig. 3 Fig. 1 Fig. 2 Fig. 6 Fig. 4 Fig. 5...
- Page 4 Fig. 9 Fig. 7 Fig. 8 Fig. 12 Fig. 10 Fig. 11...
- Page 5 Fig. 15 Fig. 13 Fig. 14 Fig. 18 Fig. 16 Fig. 17...
- Page 6 Fig. 20 Fig. 19 Fig. 21...
- Page 7 Fig. 24 Fig. 25 Fig. 26 Fig. 28...
-
Page 8: Table Of Contents
3. Configuration and function ........................18 3.1 Identification ............................. 18 3.2 Configuration ............................ 19 3.2.1 Drive units for type B70V-H-D SanitaryPlus ................19 3.2.2 Drive units for type B70V-H-SR SanitaryPlus ................. 19 4. Transport and storage ..........................20 4.1 Transport ............................20 4.2 Storage............................. - Page 9 6. Operation ..............................23 6.1 Dry running............................23 6.2 Suction funnel ..........................23 6.3 Operation with closed discharge ...................... 23 6.4 Malfunction ............................23 6.5 Taking out of operation ........................24 7. Manual cleaning ............................24 7.1 Dismantling of the outer tube ......................25 7.2 Dismantling of the shaft........................
-
Page 10: Concerning This Manual
1. Concerning this manual This manual • is part of this product • is valid for all mentioned series • describes the safe and proper use in all operating stages 1.1 Terms User: Single person or organisation who is using the products e.g. customer, user, assistant 1.2 Target groups Target group Task... -
Page 11: Warnings And Symbols
What to do → Cross reference Requirement Tab. 4: Symbols and meaning 1.5 Latest state Please find the latest state of this operating instruction under www.lutz-pumpen.de. 1.6 Copyright The content of this operating instruction and the images contained in them are subject to the copyright protection of Lutz Pumpen GmbH. -
Page 12: Safety
2. Safety The manufacturer will not be held responsible for any damages resulting from non-compliance of the overall documentation, in particular for damages in case of non-compliance of the operating instructions. 2.1 General safety information Observe following regulations before accomplishing all activities. Product safety The pump is constructed in conformity with the state of the art and approved safety-related standards. - Page 13 Personnel qualification • The operating personnel is required to be at least 14 years old. • Ensure that personnel tasked with work on the pump have read and understood these instructions and all associated applicable documents, particularly safety, maintenance and servicing information, before they start work. • Clarify responsibilities, competencies and monitoring of the personnel. • Ensure that all work is carried out by technical qualified personnel only: - Assembly, servicing, maintenance work - Work on the electrics...
-
Page 14: Proper Use
2.2 Proper use Each Lutz eccentric screw drum pump of series B70V-H SanitaryPlus comprises a universal, a 3-phase or a compressed air motor and a pump tube. The flow rate and delivery head depend on the selected pump size. This means that the most appropriate pump can be chosen for each individual application. The pump is specifically designed for the transfer of liquids in the food and beverage industry. The apparatus is provided for commercial use only. -
Page 15: Technical Data
Only use drum pumps with ATEX approval in explosion hazardous areas. Only use explosion proof drive motors as well. - B70V-H-D SanitaryPlus: The drive motors (electrical or with compressed air drives) must be chosen according to the respective size with a power of up to 2 kW and a maximum speed of 900 rpm. - Page 16 • The maximum ambient temperature must not be exceeded. In case of marking II 1/2 G Ex h IIB T4 Ga/Gb: -20 up to +40°C In case of marking II 1/2 G Ex h IIB T3 Ga/Gb: -20 up to +60°C •...
-
Page 17: Specific Danger
Legend: (1) Equipotential bonding cable (2a) Conductive substrate or connection of an equipotential bonding cable to each of the two drums (2b) Galvanic connection (low contact resistance towards earth) (3) Conductive hose (4) Conductive connection between hose and hose connector (5) Pump tube category 1/2 (6) Explosion proof motor Fig. -
Page 18: Configuration And Function
3. Confi guration and function 3.1 Identifi cation Rating plate Rating plate pump tube (example) Pump type Serial number of the pump Year of construction of the pump (last two digits of the serial number e.g. -17 for 2017) CE-Identifi cation Rating plate pump tube for explosion hazard areas (example) Pump type Serial number of the pump... -
Page 19: Configuration
3.2 Configuration Each Lutz eccentric screw drum pump of series B70V-H SanitaryPlus comprises a universal, a 3-phase or a compressed air motor and a pump tube. The flow rate and delivery head depend on the selected pump size. This means that the most appropriate pump can be chosen for each individual application. 3.2.1 Drive units for type B70V-H-D SanitaryPlus... -
Page 20: Transport And Storage
4. Transport and storage 4.1 Transport Unpacking and check of condition on delivery ► Unpack the pump tube on receipt and check for transport damages. ► Report transport damage to the manufacturer immediately. ► Check that the consignment is complete as ordered. WARNING Danger of injury by falling objects! ► For each transport, the clamping connection has to be checked for strength. Otherwise, the tube may release from the pump tube and fall on people nearby. ►When transporting with lifting equipment, ensure the proper use of the lifting equipment. Observe the operating instructions of the lifting equipment. 4.2 Storage WARNING Danger of injury and intoxication when handling hazardous liquids! ►Always wear protective equipment when working on the pump. -
Page 21: Installation Of B70V-H-D Sanitaryplus
5.1 Installation of B70V-H-D SanitaryPlus 3 Motor is switched off The three-phase drives are connected with the pump by means of a quick fastener. Two stop pins (→ Fig. 2, Item 1) and two locking screws (→ Fig. 2, Item 2) are pre-assembled in the fastening screw threads of the motors. ► Before assembly the jaw-type coupling must be adjusted at the motor and pump side (→ Fig. 2 - Item 3). ► Attach the motor onto the pump tube. The both locking screws here must be in accordance with the large bores at the flange of the pump tube (→ Fig. 2 - Item 4). ► After a turning of the motor at block position (→ Fig. 3 - Item 1) the both locking screws can be tightened (→ Fig. 3 - Item 2). 5.2 Installation of B70V-H-SR SanitaryPlus 3 Motor is switched off ► Attach the pump motor onto the pump tube (→ Fig. 4). The motor must be turned slightly to ensure that the driver engages correctly in the coupling of the pump tube. Connect the motor and the pump tube with the hand wheel (right-hand thread). -
Page 22: Operating A Three-Phase Motor With Attached Frequency Converter
5.5 Operating a three-phase motor with attached frequency converter Default setting: "Start" button starts the pump "Stop" button stops the pump button (reverse rotating direction) without function Button I activates mode I: "Pumping" Button II activates mode II: "Emptying" "Reset" button resets the pump in the case of malfunction Speed controller (Potentiometer) for manual speed adjustment... -
Page 23: Operation
6. Operation 3 All connections and fittings are properly tightened. WARNING If connections are not properly or not at all tightened: - it can come to splashing medium. - it can come to flying parts. - the pump may start to move uncoordinatedly. WARNING Danger of injury and intoxication when handling hazardous liquids! ►Always wear protective equipment when working on the pump. -
Page 24: Taking Out Of Operation
6.5 Taking out of operation WARNING Danger of injury and intoxication when handling hazardous liquids! ► Always wear protective equipment when working on the pump. ► Collect any residual liquid issuing from the pump safely and dispose of it in an environmentally friendly fashion. NOTICE Damage to property with horizontal storage of a pump tube wetted with fluid! ► Remove the pump tube from the container carefully and allow the remaining liquid to flow back into the container. ►The pump must be flushed and cleaned with an appropriate detergent after pumping process. 7. Manual cleaning The pump tube is designed for a manual cleaning. ► The pump must be cleaned after each operation. -
Page 25: Dismantling Of The Outer Tube
(on the side of the circumference) during cleaning. 7.2 Dismantling of the shaft For a particularly intensive cleaning, the drive shaft can be detached from the bearing unit. 7.2.1 Version with flexible shaft ► Put the pump tube into the disassemby position B70V-H-D SanitaryPlus: ► Turn the B70V-H-D upside down for the disassembly of the flexible shaft (→ Fig. 13, Item 1). For pumps in long special lengths, release the 4 cylinder head screws and pull the flange off the bearing unit (→ Fig. 14). Place the pump tube horizontally on the table (→ Fig. 15). B70V-H-SR SanitaryPlus: ► Slide the retaining ring out of the hand wheel with a screwdriver (→ Fig. 16) and remove the hand wheel... -
Page 26: Reassembly
CAUTION The flexible shaft may jump out! Due to the spring of the mechanical seal, this connection is under bias. Make sure that nobody can be injured by jumping out of the flexible shaft. b) Now pull the flexible shaft out of the bearing unit (→ Fig. 20). c) The mechanical seal can now also be easily pulled off (→ Fig. 21). d) Inspect the mechanical seal for damage and contamination. 7.3 Reassembly a) Again insert the stator into the suction opening. - Page 27 l) Now again push the outer tube over the flexible shaft. ► The pump outlet can be mounted in four different positions (each offset by 90°) to the bearing unit. ► Make sure that the square of the anti-twist device is correctly positioned. ► If the flange of the outer tube and the flange of the bearing unit are flush with each other, the square is correctly mounted in one of the four possible positions. m) Now close the locking clip again. Tighten them with hand force. A firm connection is required as pressure builds up in the pipe during operation. WARNING If connections are not properly or not at all tightened: - it can come to splashing medium. - it can come to flying parts.
-
Page 28: Maintenance And Servicing
8.1 Lubrication No parts of the Lutz eccentric screw pump need to be lubricated at short intervals. For assembly works and lubricant addition of the lip seals in the bearing unit a foodstuff compatible lubricant must be used. We recommend type PARALIQ GTE 703. -
Page 29: Sending The Pump To The Manufacturer
WARNING Danger of poisoning and environmental damage from liquid or oil! ► Always wear protective equipment when working on the pump. ► Before disposing of the pump: - Leaking liquid and oil must be contained and separately disposed according to the locally applicable regulations. - Residues of liquid in the pump must be neutralized. ► Remove the non-metallic parts and dispose them according to the locally applicable regulations. ► Dispose of the pump according to the locally applicable regulations. 11. Traceability Products for potentially explosive atmospheres are identified by an individual serial number. Lutz Pumpen ensures the traceability of this device up to the initial point of delivery according to ATEX Directive. All persons who redeliver the device are obliged to guarantee its traceability to enable subsequent recall actions. -
Page 31: Declaration Of Conformity
The notified body Physikalisch-Technische Bundesanstalt 0102, Bundesallee 100, 38116 Braunschweig, has tested for type examination and issued the certificates specified above. Person authorised to compile the technical file: Lutz Pumpen GmbH, Erlenstraße 5-7, D-97877 Wertheim Wertheim, 15.09.2017 Heinz Lutz, CEO... - Page 32 Lutz Pumpen GmbH Erlenstraße 5-7 D-97877 Wertheim Tel. (+49 93 42) 8 79-0 Fax (+49 93 42) 87 94 04 e-mail: info@lutz-pumpen.de http://www.lutz-pumpen.de Subject to technical changes. 01/18 Order No. 0698-551 Printed in Germany / Dru.
