Sunjoy L-GZ937PST-C Assembly Instructions Manual

Sunjoy L-GZ937PST-C Assembly Instructions Manual

10x12 wicker gazebo with netting
Hide thumbs
Table of Contents

Advertisement

Quick Links

Assembly Instructions

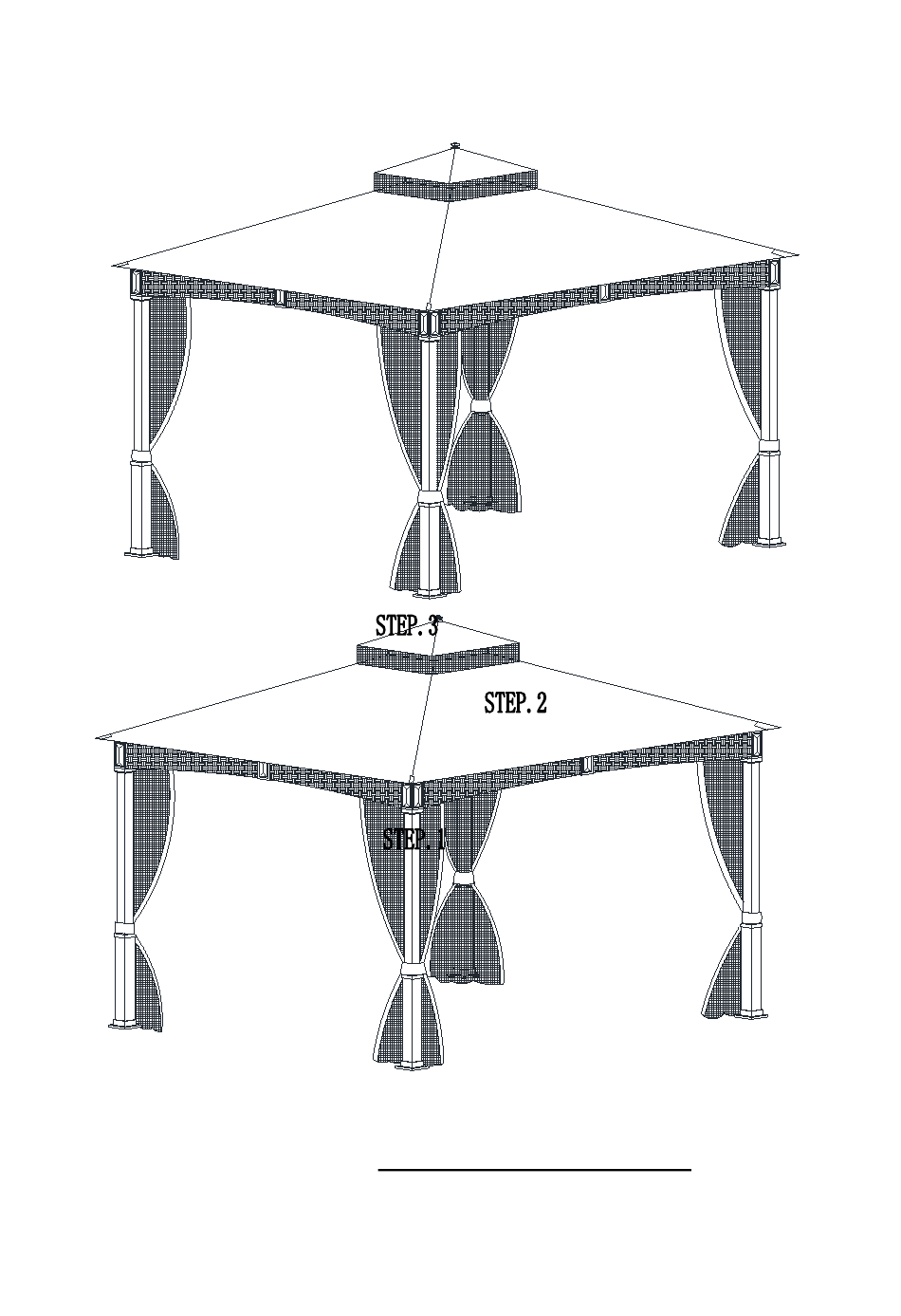

10X12 wicker gazebo with netting
L-GZ937PST-C
Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor furniture purchase.
Our clear, easy to follow, step by step instructions will guide you through the project from start to finish.
Please do not return this product to the store. For technical assistance or replacement parts, please call Sunjoy
customer.care@sunjoygroup.com
Group at 1 (866) 578-6569 anytime or email to
Production Number：xxxxxxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-GZ937PST-C and is the answer not in the manual?

Questions and answers

Related Manuals for Sunjoy L-GZ937PST-C

Summary of Contents for Sunjoy L-GZ937PST-C

  • Page 1 10X12 wicker gazebo with netting L-GZ937PST-C Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor furniture purchase. Our clear, easy to follow, step by step instructions will guide you through the project from start to finish.

  • Page 2: Safety Information

    Safety information •Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the production construction. •This package contains small items and plastic bags that should be kept away from children. •Keep assembly area at least 6 ft.

  • Page 3: Parts List

    Parts List Label Part Description Image Stake cover P11504A01105 Finial P10003A01105 Stake Plate P11604A01105 Post P11106A01105 Short screen1 P11012A01105 Short screen 2 P11011A01105 Long screen 1 P11014A01105 Long screen 2 P11013A01105 Middle P10803A01100 connector Cant beam P10701A01105 connector Protect plate P11302A01105 Long netting P12105A01105...
  • Page 4 Description Label Part Quantity Image Small top P10108A01105 connector Small top cant P10204A01105 beam Big top P10109A01105 connector Hook P12604A01105 Big canopy P00109B07007 Small canopy P00108B07007 Netting P00306B02901 Hardware Pack 1 M6*20 Bolt H02020C11 M6 Washer H19001C11 M6 Nut H14001C11 M6 Wrench H00001C12...
  • Page 5 Fig.1: Put the stake cover (A) into the post Fig.2: Attach the short screen 1 （E1） to the (D), then fasten the stake plate (C) on the short screen 2（E2）,then attached long post by using (AA), washer(BB) screen1 （F1） to long screen 2 （F2） , by using bolt (AA),washer(BB) and nut（EE）.

  • Page 6: Hardware Pack

    Hardware Pack 2 M6 Washer H19001C11 M6*35 Bolt H02035C11 M6 Nut H14001C11...
  • Page 7 Fig.8: Insert cant beam (M1) into the big Fig.7: Insert Cant Beam end (M1) top connector (S). By using bolt (DD)、 into cant beam bottom tube（M2）. washer (BB) and nut (EE) fix cant bottom tube (M2) to cant connector(H). Fig.10: Insert long middle beam(N1/N2)into big Fig.9: Insert long middle beam (N1) into long top connector(S).then fix the hook（T）to the middle beam bottom tube（N2）, then...
  • Page 8 Hardware Pack 3 Ф8*180 stake P12401A01001 Ring P90701A07007...
  • Page 9 Fig.15: Fix the big canopy (U) to big Fig.14: Cover the small canopy （V） top and tighten four corner of the cant on small top, then attach the finial beam bottom(M2). （B） on top。 Fig.17: Fasten the netting (W) Velcro and tie netting Fig.16: By using ring (HH) hang (W) on the post.

  • Page 10: Care And Maintenance

    Care & Maintenance •Before using, clean the product completely with a soft, dry towel. When not in use, wipe free of any dirty or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. •Do not use strong detergent or abrasive cleaners.
