SAFETY INFORMATION:
Please read and understand this entire manual before attempting to assemble or install the product.
When installing and assembling the item, it is recommended two or more adults are involved.
This product is intended for outdoor use only and should be placed on flat, horizontal ground.
Ensure enough clearance around the product.
Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightning.
Do not climb on top of the item. Falling off it can result in serious injury, possibly even death.
Never barbecue under this item or use lanterns that contain open flames.
This package contains small items and plastic bags that should be kept away from children.
Ensure all connectors and poles are firmly secured in position. It is important to do so before use to avoid
collapsing or damage to the item, which could also result in injury.
Center hook's maximum weight capacity is 26 lbs.
WARNING:
Keep all flame and heat sources away from the tent fabric. This tent is made with fabric that meets CPAI-84
specifications for flame resistance. It is not fire proof. The fabric will burn if left in continuous contact with any
flame source. The application of any foreign substance to the tent fabric may render the flame-resistant
properties ineffective. Remove the roof during severe weather conditions such as sustained strong winds,
hurricanes, tropical downpours and snow. The manufacturer or retailer is not liable for any loss of the product
or other items due to the failure to take down the item during any inclement weather.
ITEM# L-GZ778PST-A
SKU# 036805
10' X 10' ELSWORTH GAZEBO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy L-GZ778PST-A
Summary of Contents for Sunjoy L-GZ778PST-A

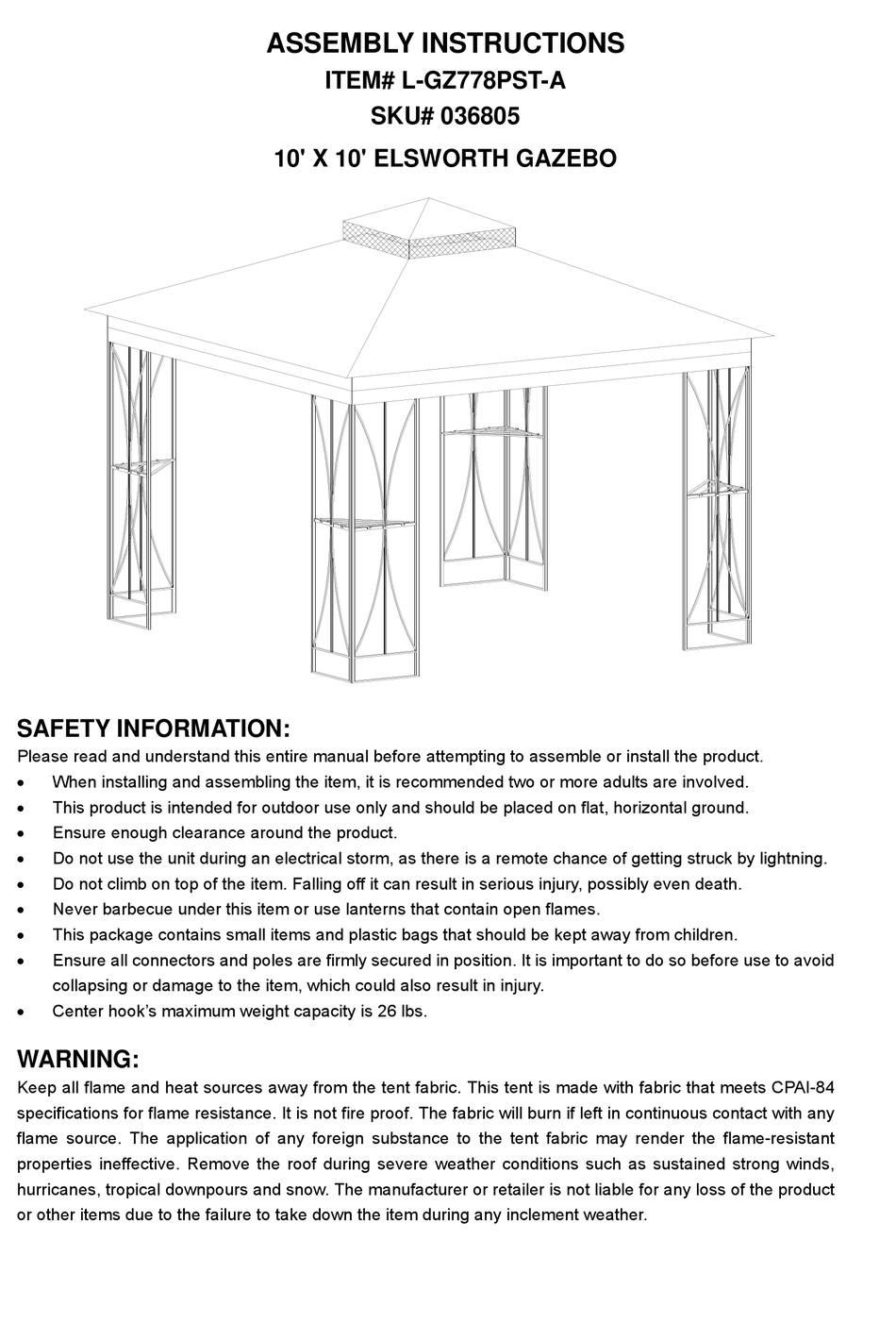

- Page 1 ASSEMBLY INSTRUCTIONS ITEM# L-GZ778PST-A SKU# 036805 10' X 10' ELSWORTH GAZEBO SAFETY INFORMATION: Please read and understand this entire manual before attempting to assemble or install the product. When installing and assembling the item, it is recommended two or more adults are involved.
- Page 2 CARE AND MAINTENANCE: This item is intended for decorative and sunshade purposes only, and is not designed to withstand severe weather, including high winds, sustained tropical downpours, and snow. In order to avoid damage in such instances, remove any accumulated water and the roof immediately. Disassemble the item in the reverse order of the assembly steps if necessary prior to a severe storm.
- Page 3 Parts List Corner Panels Cross Beam Corner Shelf Middle Bar Connector Slanting Bar Connector Upper Slanting Bar Lower Slanting Bar Middle Bar Top Connector Slanting Bar Connector Base Hook Small Canopy Large Canopy Bolt Hardware Pack Φ6x180MM Stake 16 PCS...
- Page 4 ASSEMBLY INSTRUCTIONS: Fig.1: Unfold corner panels (A), then insert the cross beam (B) into the groove of the corner panels (A) and secure the cross beam with bolt (N).
- Page 5 Fig.2: Insert the slanting bar connector base (J) into the respective slots on the top of each corner panels (A). Fig.3: Insert the slanting bar connector (E) into the slanting bar connector base (J), and secure slanting bar connector using bolt (N). Please do not tighten the bolt here. Fig.4: Insert the middle bar connector (D) into the cross beam (B), and secure middle bar connector using bolt (N).
- Page 6 Fig.10: Attach the small canopy (L) to the top along the upper slanting bar (F), aligning the corners and stretching it to fit. Fig.11: Spread the large canopy (M) to the roof along the lower slanting bar (G), aligning the corners and stretching it to fit.
