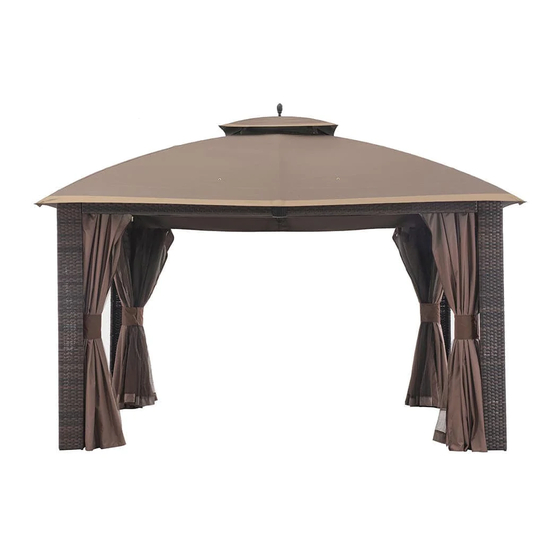

Sunjoy L-GZ815PST Sonoma Wicker Gazebo
Owner's Manual
IMPORTANT
Thank you very much for choosing Sunjoy Group.
Please take time to read these instructions thoroughly and follow each step carefully for safe and easy
operation. Keep this manual for future reference.
We would like to hear from you with any comments or suggestions. You can call us toll-free at
1-866-578-6569
from 8:00 a.m. EST to 8:00 p.m. PST. You can also send the email to
customer.care@sunjoygroup.com
or visit
www.sunjoyonline.com
to get tech. assistance or to place
your replacement part order form.
Production Number:xxxxxx
