Installation Diagrams - Humminbird HELIX Series Installation Diagrams

BOW UNIT
HELIX 10
1
2
5
CONSOLE UNITS
HELIX 12
1
2
8
Battery

INSTALLATION DIAGRAMS

4

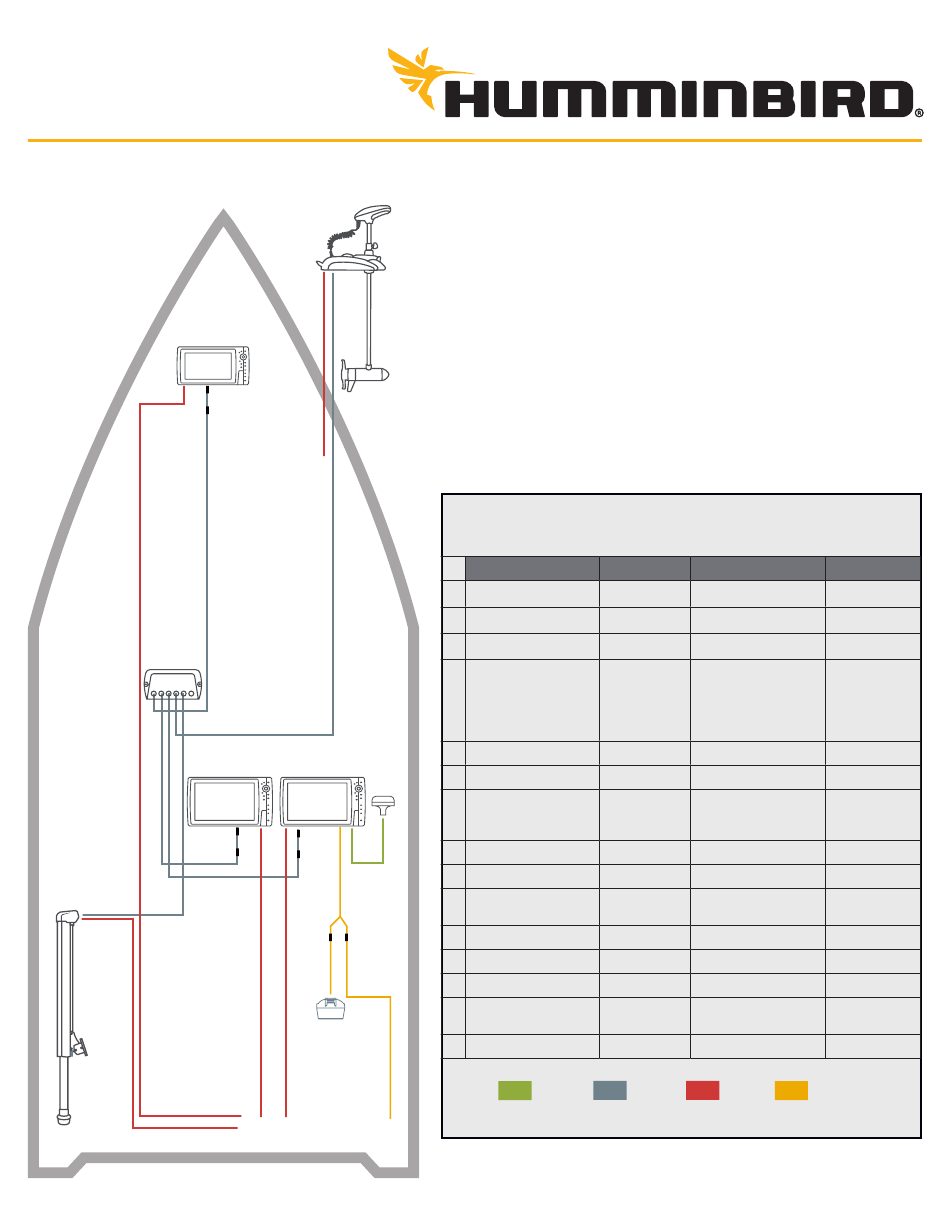

Two Console Mount and One Bow Mount
Humminbird Units, a Minn Kota Trolling Motor, an
In-Hull Transducer and Transom Mount 360 Imaging
The following schematic outlines the necessary
accessories/cables needed to add an in-hull
transducer and a transom mount 360 Imaging
accessory to a multi-unit network of three
Humminbird units and a Minn Kota trolling motor.
Installation is shown with an optional heading sensor.
Battery
1
Ethernet Adapter Cable
720074-1
2
Ethernet Cable
720073-6
720073-2
720073-5
720073-3
720073-4
3 Heading Sensor
3
408400-1
Minn Kota® Trolling
HELIX 12
4 Motor with
i-Pilot® Link™ **
1
5 5-Port Ethernet Switch
408450-1
6
Transducer Splitter
6
Cable
720101-1
7
In-Hull 2D Transducer
710164-1
7
Transom Mount 360
8
Imaging
408310-1
Transducer supplied with
main console unit
* The accessories and part numbers listed above are valid as of Oct. 2017. Installations shown
are for networking HELIX Series or SOLIX Series models, and Minn Kota trolling motors with
i-Pilot Link.
** One (1) AS EC 30E 30' ethernet cable included with trolling motor
Compatible Accessories
HELIX Series
AS EC QDE
AS EC 5E (5')
AS EC 10E (10')
AS EC 15E (15')
AS EC 20E (20')
AS EC 30E (30')
AS GPS
AS ETH PSXG
9 M SIB Y
XP 9 20
AS 360SSI
RS422 Data Ethernet
SOLIX Series
Ethernet Adapter Cable
NA
Ethernet Cable
720073-6 AS EC 5E (5')
720073-2 AS EC 10E (10')
720073-5 AS EC 15E (15')
720073-3 AS EC 20E (20')
720073-4 AS EC 30E (30')
Heading Sensor
408400-1 AS GPS
Minn Kota® Trolling
Motor with
i-Pilot® Link™ **
5-Port Ethernet Switch
408450-1 AS ETH PSXG
Transducer Splitter
Cable
720103-1 14 M SIDB Y
In-Hull 2D Transducer
710249-1 XP 14 20
Transom Mount 360
Imaging
408310-1 AS 360SSI
DC Power Transducer Cable
