Humminbird HELIX Series Installation Diagrams page 3

3
Battery
CONSOLE UNIT
HELIX 12
1
Battery
INSTALLATION DIAGRAMS
Console Mount Humminbird Unit and
Minn Kota Trolling Motor

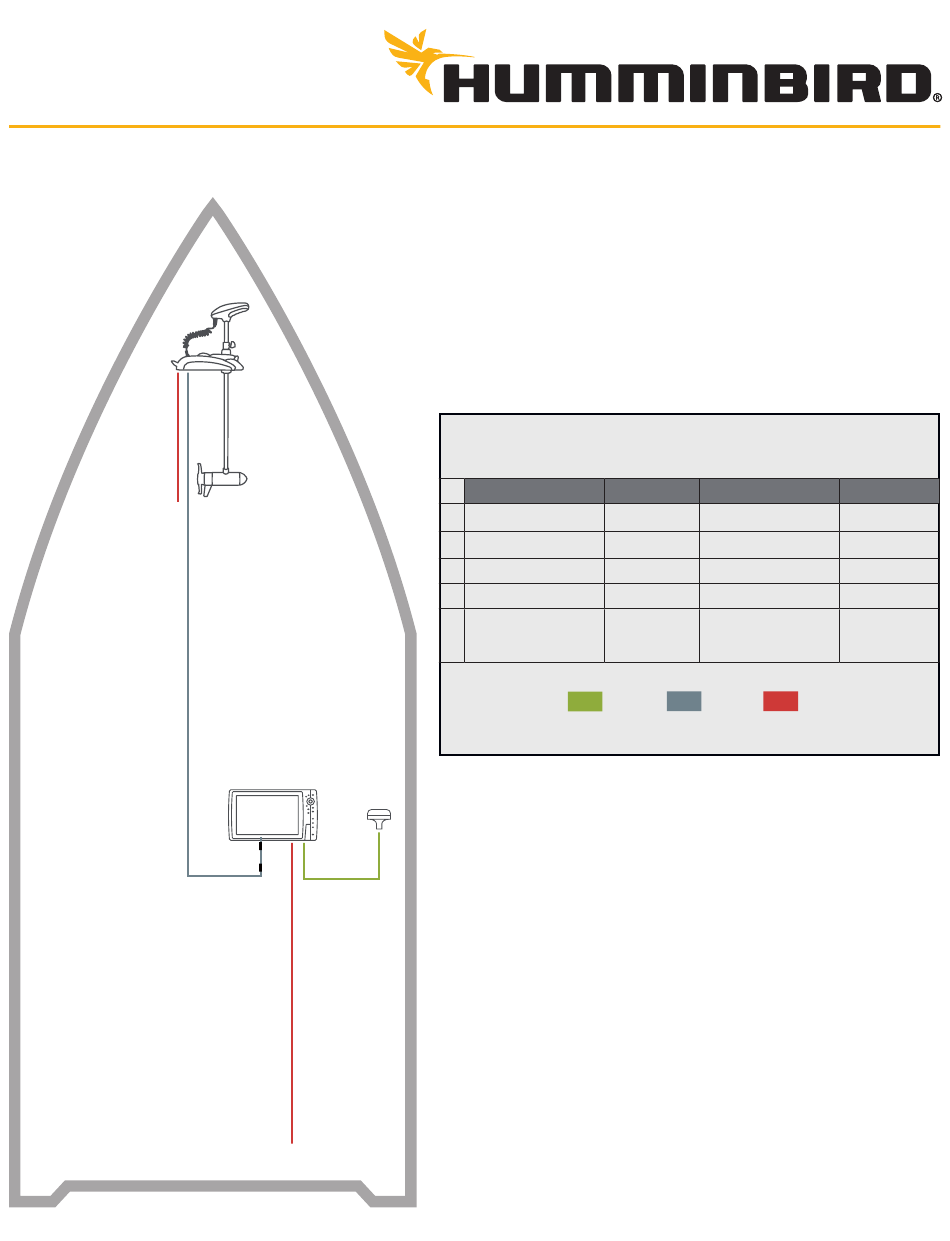

The following schematic outlines the necessary
accessories/cables needed to connect one
Humminbird unit and a Minn Kota trolling motor.
Installation is shown with an optional heading sensor.
HELIX Series
1
Ethernet Adapter Cable
720074-1
2 Heading Sensor
408400-1
Minn Kota® Trolling
3 Motor with
i-Pilot® Link™ **
* The accessories and part numbers listed above are valid as of Oct. 2017. Installations shown
are for networking HELIX Series or SOLIX Series models, and Minn Kota trolling motors with
i-Pilot Link.
2
** One (1) AS EC 30E 30' ethernet cable included with trolling motor
Compatible Accessories
SOLIX Series
Ethernet Adapter Cable
AS EC QDE NA
Heading Sensor
AS GPS 408400-1
Minn Kota® Trolling
Motor with
i-Pilot® Link™ **
RS422 Data Ethernet
AS GPS
DC Power
