Humminbird HELIX Series Installation Diagrams page 4

4
BOW UNIT
HELIX 10
1
Battery
2
5
CONSOLE UNITS
HELIX 12 HELIX 12
1 1
2
7
Battery Transducer supplied with
main console unit
INSTALLATION DIAGRAMS
Two Console Mount and One Bow Mount
Humminbird Units, a Minn Kota Trolling Motor
and an In-Hull Transducer

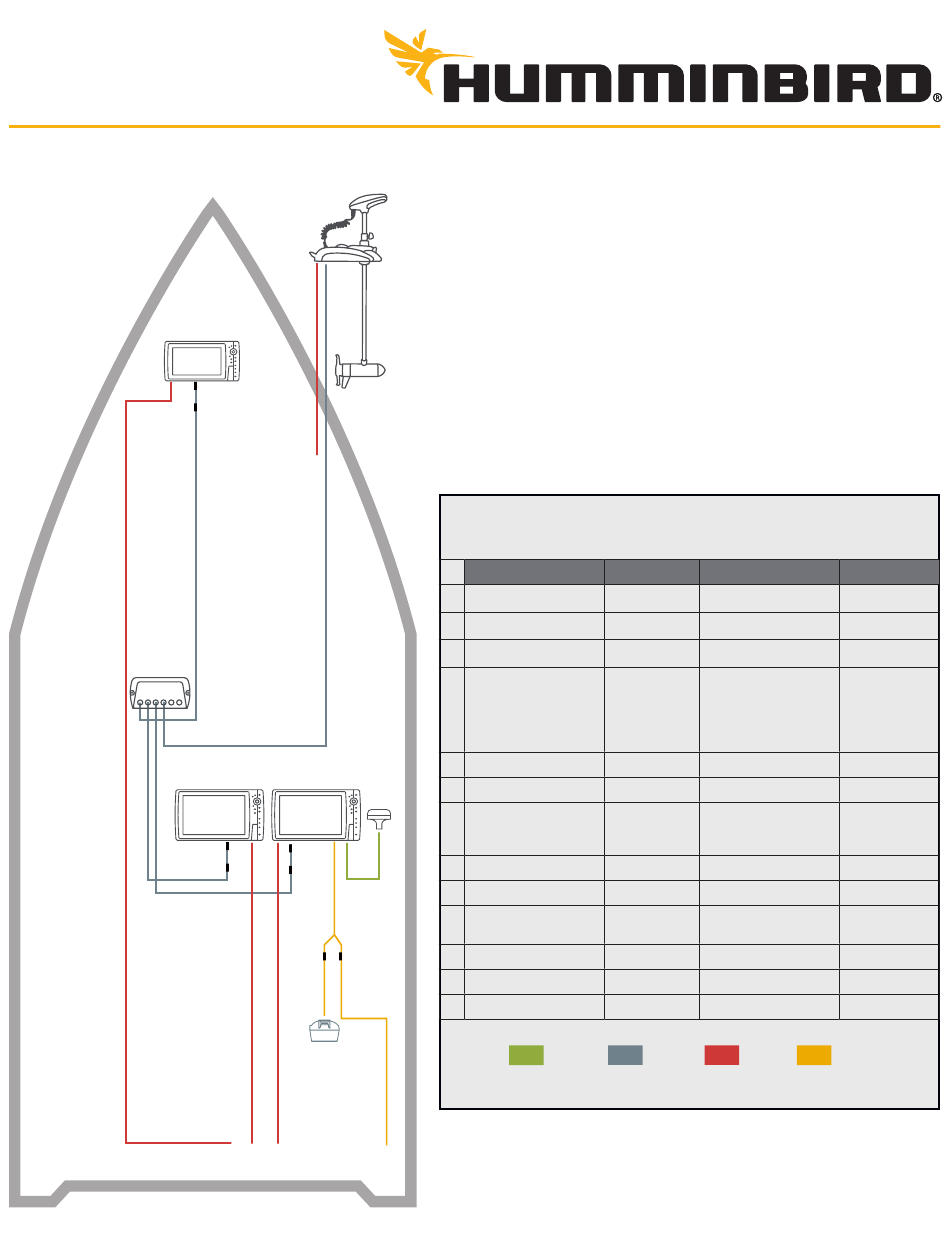

The following schematic outlines the necessary
accessories/cables needed to add an in-hull
transducer and splitter cable to a multi-unit network
of three Humminbird units and a Minn Kota trolling
motor. Installation is shown with an optional
heading sensor.
HELIX Series
1
Ethernet Adapter Cable
720074-1
2
Ethernet Cable
720073-6
720073-2
720073-5
720073-3
720073-4
3 Heading Sensor
3
408400-1
Minn Kota® Trolling
4
Motor with
i-Pilot® Link™ **
5 5-Port Ethernet Switch
408450-1
6
Transducer Splitter
6
Cable
720101-1
7 In-Hull 2D Transducer
710164-1
RS422 Data
* The accessories and part numbers listed above are valid as of Oct. 2017. Installations shown
are for networking HELIX Series or SOLIX Series models, and Minn Kota trolling motors with
i-Pilot Link.
** One (1) AS EC 30E 30' ethernet cable included with trolling motor
Compatible Accessories
SOLIX Series
Ethernet Adapter Cable
AS EC QDE NA
Ethernet Cable
AS EC 5E (5') 720073-6
AS EC 10E (10') 720073-2
AS EC 15E (15') 720073-5
AS EC 20E (20') 720073-3
AS EC 30E (30') 720073-4
Heading Sensor
AS GPS 408400-1
Minn Kota® Trolling
Motor with
i-Pilot® Link™ **
5-Port Ethernet Switch
AS ETH PSXG 408450-1
Transducer Splitter
Cable
9 M SIB Y 720103-1
In-Hull 2D Transducer
XP 9 20 710249-1
Ethernet DC Power
AS EC 5E (5')
AS EC 10E (10')
AS EC 15E (15')
AS EC 20E (20')
AS EC 30E (30')
AS GPS
AS ETH PSXG
14 M SIDB Y
XP 14 20
Transducer Cable
