Reassembling The Actuator - Flowserve Valtek VL-C User Instructions

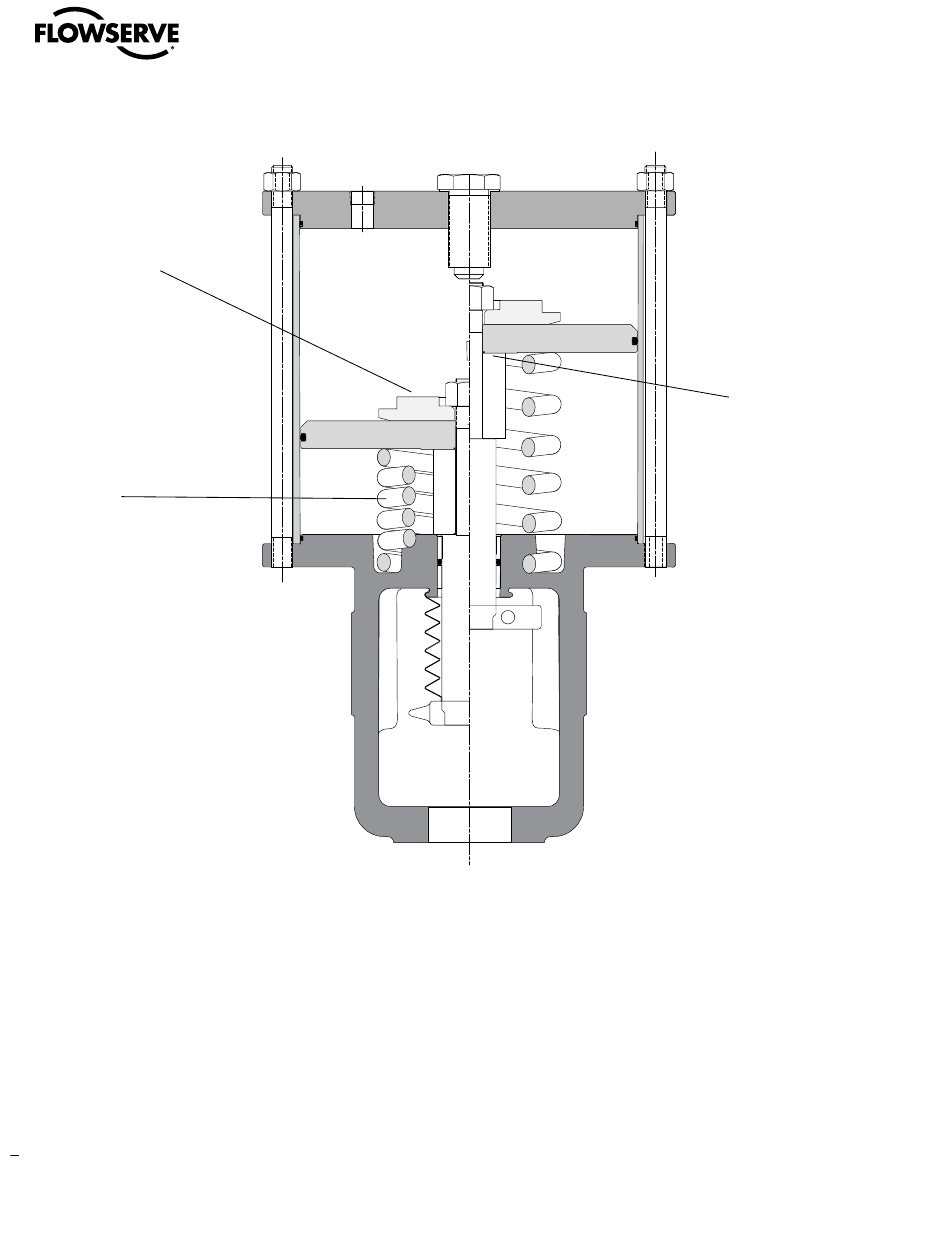

Figure 2: Air-to-extend Cylinder Actuator
Spring Button
(Item No. 227)
Spring
(Item No. 229)
NOTE: Item numbers correspond directly to actuator's bill of material. Refer to it for specific part numbers.

Reassembling the Actuator

To reassemble the cylinder actuator, refer to Figures 1 through 4:
1. All O-rings and the quad-seal should be replaced and lubricated
with a calcium complex grease (DuBois MPG-2 or equivalent).
Silicone O-rings must be lubricated with Magnalube-G lubricant or
equivalent.
6
2. Thoroughly clean all internal parts before beginning assembly.
Check the cylinder bore for scratches, pitting or worn areas.
Lubricate cylinder wall and all internal surfaces with the appropriate
lubricant.
Valtek VL-C Spring Cylinder Linear Actuators FCD VLAIM054-01 – 06/13
Parts listed change location upon reversing air action. No new parts are required.
NOTE: Applying a light coating of lubricant to the entire cylinder
bore, end cap and both sides of the piston enables smooth
operation and can help reduce corrosion.
3. Lubricate the outside of the replacement bushing if the stem
bushing has been removed. Press a new lower stem bushing into
the actuator stem bore in the yoke until it bottoms out. Press the
upper stem bushing into the bore until it is flush with the top of the
yoke (refer to Figures 1 or 2).
4. Replace the actuator stem O-ring and yoke O-ring.
Stem Spacer
(Item No. 228)
