Flowserve Valtek VL-C User Instructions page 9

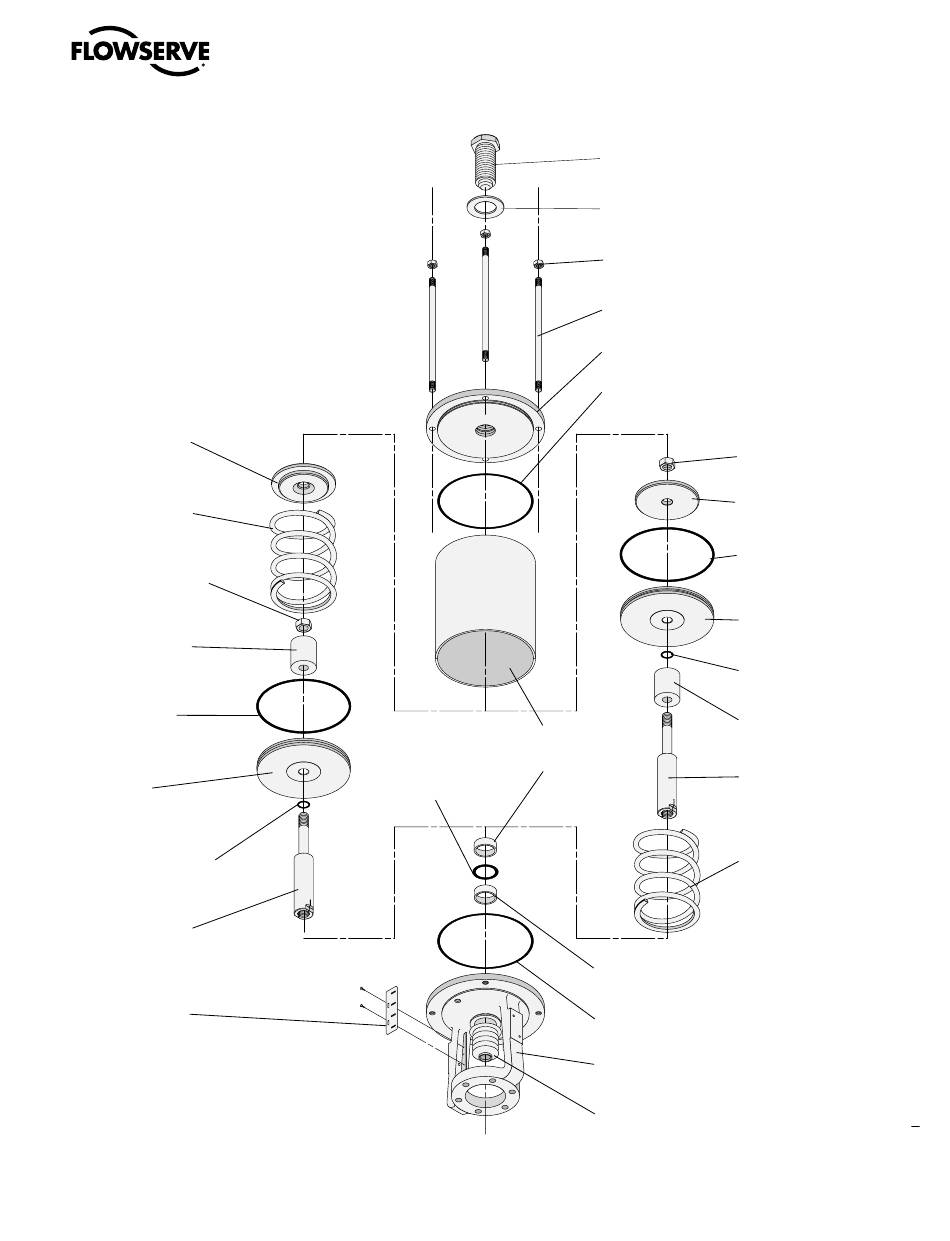

Figure 4: Exploded View, Spring Cylinder Actuator
AIR-TO-RETRACT
Spring Button
(Item No. 227)
Spring
(Item No. 229)
Actuator Stem Nut
(Item No. 348)
Stem Spacer
(Item No. 228)
Quad-seal
(Item No. 271)
Piston
(Item No. 225)
Piston Stem O-ring
(Item No. 272)
Actuator Stem
(Item No. 211)
Stroke Plate
(Item No. 213)
NOTE: Item numbers correspond directly to actuator's bill of material. Refer to it for specific part numbers.
Valtek VL-C Spring Cylinder Linear Actuators FCD VLAIM054-01 – 06/13
Actuator Stem O-ring
(Item No. 275)
Adjusting Screw
(Item No. 210)
Adjusting Screw Gasket
(Item No. 248)
Tie Rod Nut (4)
(Item No. 205)
Tie Rod (4)
(Item No. 206)
End Cap
(Item No. 207)
End Cap O-ring
(Item No. 208)
Cylinder
(Item No. 202)
Upper Stem Bushing
(Item No. 253)
Lower Stem Bushing
(Item No. 253)
Yoke O-ring
(Item No. 274)
Yoke
(Item No. 201)
Stem Bellows
(Item No. 247)
AIR-TO-EXTEND
Actuator Stem Nut
(Item No. 348)
Spring Button
(Item No. 227)
Quad-seal
(Item No. 271)
Piston
(Item No. 225)
Piston Stem O-ring
(Item No. 272)
Stem Spacer
(Item No. 228)
Actuator Stem
(Item No. 211)
Spring
(Item No. 229)
