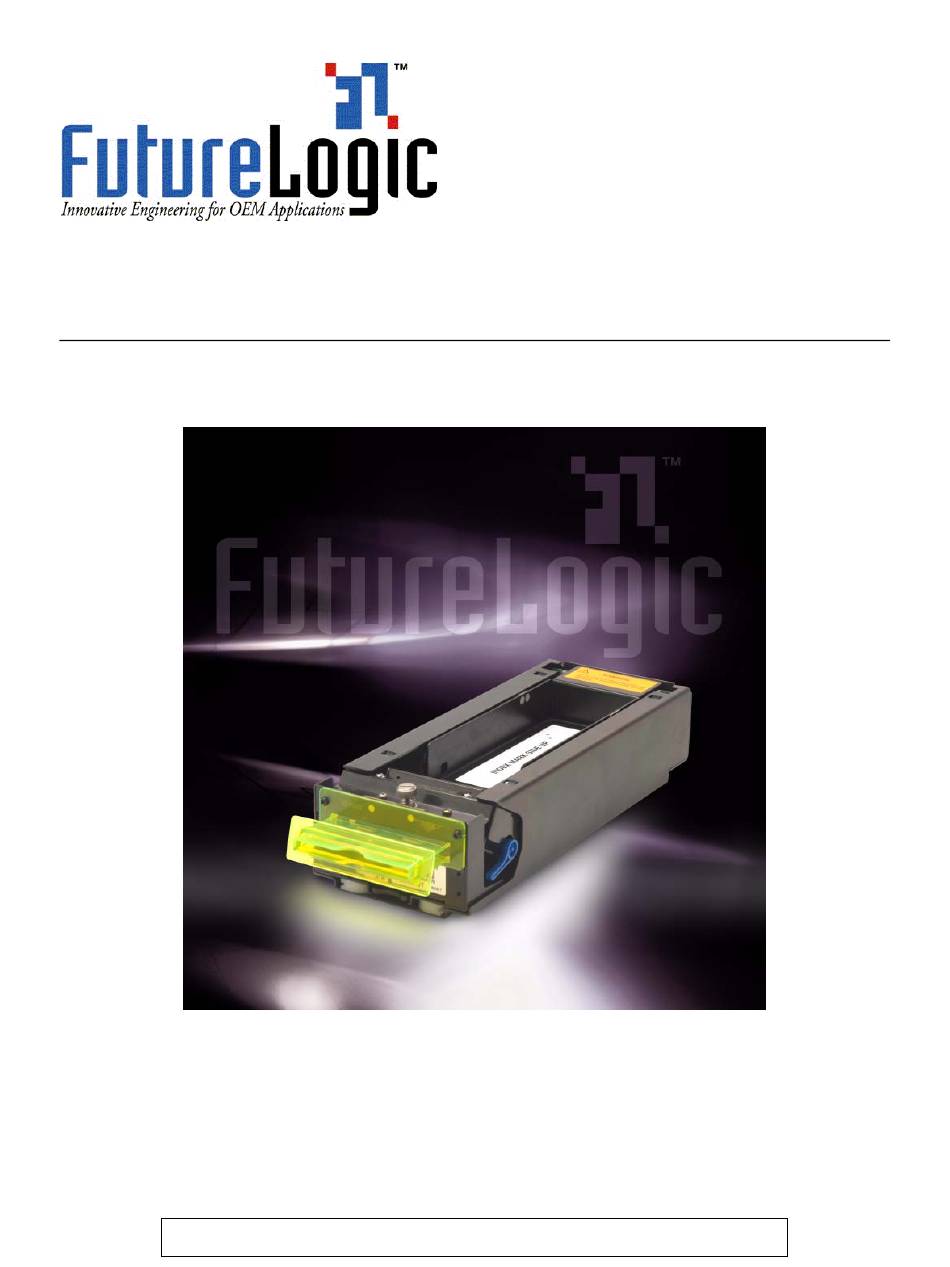

- Page 1 PSA-66-ST Firmware Download Utility Instructions PSA-66-ST PSA-66-ST (RS232 Interface) PSA-66-001N (Netplex Interface) This document is uncontrolled when printed.
- Page 2 These specifications are subject to change without notice and may not completely and correctly document the operation of this product. 11/30/2004 PUBN-000015 REV.A The PSA-66-ST (RS232 Interface) printer described in this manual is in compliance with all applied CE standards. FutureLogic, Inc. 425 East Colorado Street • Suite 100 Glendale, CA 91205 USA Phone 818.244.4700 •...
-
Page 3: Table Of Contents
Removing the Printer from the Machine ..............10 Using the PSA-66 4-Station Stand................12 Using the Download Utility..................13 3.3.1 Version Control and Verification ..............18 Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page i of 22 11/30/2004 PUBN-000015 REV.A... -
Page 4: Background
1 Background In recognition of the need for multiple versions of firmware both for different gaming applications and normal enhancements, FutureLogic, Inc. has developed a Download Utility to provide a secure yet simple means to reload printer firmware. This publication describes how to re-flash the printer firmware using the following: •... -
Page 5: Changing Firmware On One Or More Printers
To remove the printer from the machine: 1. Power down the printers to be downloaded. 2. Slide the unit open until it locks in the open position. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 2 of 22 11/30/2004 PUBN-000015 REV.A... - Page 6 5. Press in the Release Lever under the front of the Sliding Module to release the locking mechanism. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 3 of 22 11/30/2004 PUBN-000015 REV.A...
-
Page 7: Using The Download Utility
Module. Using the Download Utility Verify that you have installed the FutureLogic, Inc. Download Utility. You can acquire this software from the FutureLogic, Inc. Web site (http://www.futurelogic-inc.com) or CD-ROM. Note: The main window of the Download Utility displays a tab marked Auto Download. - Page 8 NOT active. Figure 2-6 Download Utility Toolbar 3. Connect the printer to the PC using the FutureLogic, Inc. Evaluation Cable (Part Number 150-00013) or other approved cabling. Note: If using a Nexplex printer, connect using the power supply. 4. Power up the printer.
- Page 9 The main window refreshes to display the download file name, firmware version, and (optionally) the ticket template(s). Tip: To view the selections for the printer, click the View Selections button. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 6 of 22 11/30/2004 PUBN-000015 REV.A...
- Page 10 10. (Optional) Click anywhere in the State area of the main window to view the status of the printer download. The Printer Status Dialog displays. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 7 of 22 11/30/2004 PUBN-000015 REV.A...
- Page 11 (step 9). Also, check the library inventory. There should be entries for Templates, Print Regions, and System Resources. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 8 of 22 11/30/2004...
-
Page 12: Version Control And Verification
The firmware version number will be printed on the ticket after the download is complete. Verify that this matches the firmware version displayed on the screen. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 9 of 22 11/30/2004... -
Page 13: Changing Firmware Using The Psa-66 4-Station Stand
This section describes how to remove a printer from a machine, use the PSA-66 4-Station Stand (Part Number 5005008) with PSA-66-ST or PSA-66-001N printers and the FutureLogic, Inc. Download Utility to re-flash the printer firmware on four printers at one time. CAUTION! ESD Sensitive Equipment! Electronic boards and their components are sensitive to static electricity. - Page 14 5. Press in the Release Lever under the front of the Sliding Module to release the locking mechanism. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 11 of 22 11/30/2004 PUBN-000015 REV.A...
-
Page 15: Using The Psa-66 4-Station Stand
7. Repeat steps 1 through 6 for each printer. Using the PSA-66 4-Station Stand Note: Before you can use the PSA-66 4-Station Stand, you must order and install a 4-port serial card on the PC. FutureLogic, Inc. recommends the Quatech 4-Port Serial Card (Part Number QSP-100-D9) with accompanying adapter cable. -
Page 16: Using The Download Utility
PSA-66 4-Station Stand – Rear View Using the Download Utility Verify that you have installed the FutureLogic, Inc. Download Utility. You can acquire this software from the FutureLogic, Inc. Web site (http://www.futurelogic-inc.com) or CD-ROM. Note: The main window of the Download Utility displays a tab marked Auto Download. - Page 17 Figure 3-10 Load Paper into Slot The paper will self feed and stop with the second ticket in place. 5. Tear off the extended ticket. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 14 of 22 11/30/2004 PUBN-000015 REV.A...
- Page 18 The main window refreshes to display the download file name, firmware version, and (optionally) the ticket template(s). Tip: To view the selections for the printer, click the View Selections button. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 15 of 22 11/30/2004 PUBN-000015 REV.A...
- Page 19 (Optional) Click anywhere in the State area of the main window to view the status of the printer download. The Printer Status Dialog displays. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 16 of 22 11/30/2004 PUBN-000015 REV.A...
- Page 20 (step 8). Also, check the library inventory. There should be entries for Templates, Print Regions, and System Resources. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 17 of 22 11/30/2004...
-
Page 21: Version Control And Verification
The firmware version number will be printed on the ticket after the download is complete. Verify that this matches the firmware version displayed on the screen. Copyright © 2004 FutureLogic, Inc. All Rights Reserved. PUBN Page 18 of 22 11/30/2004... - Page 22 FutureLogic, Inc. 425 East Colorado Street • Suite 100 Glendale, CA 91205 USA Phone 818.244.4700 • Fax 818.244.4764 www.futurelogic-inc.com...
