2.2

DATA STORING METHOD

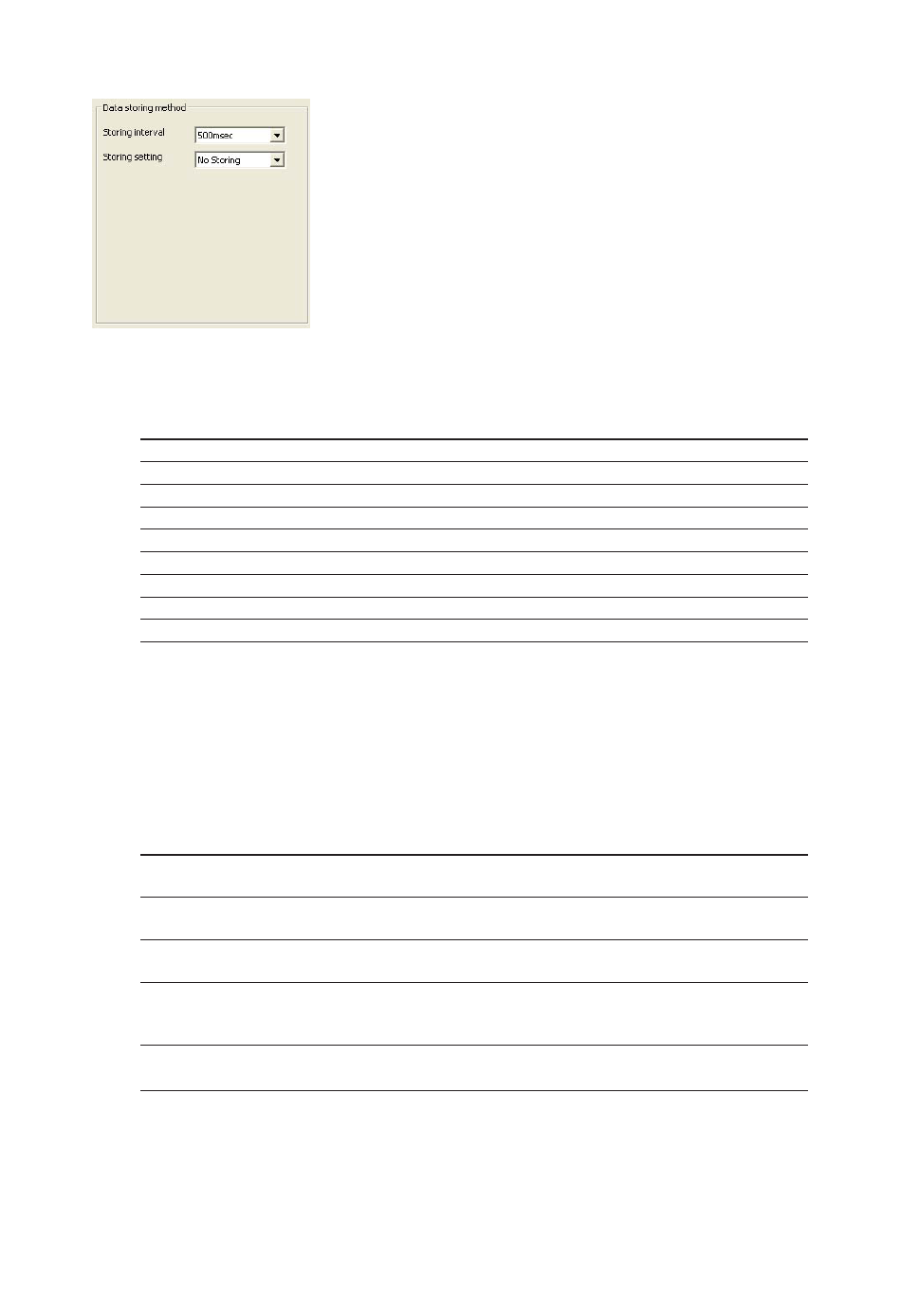

The Data storing method setting menu appears as below.
Figure 2.2. Data storing method.

2.2.1 STORING INTERVAL

The data is stored in time intervals preset as the Storing interval. Choose among the following options:
20msec
100msec
500msec
1sec
2sec
5sec
10sec
1min
10min
Total recording time in a CF Card depends upon the storing interval selection. Selecting greater storing interval allows
longer recording time, though the data are more thinned, which may jeopardize the data accuracy.
CAUTION !
When the storing interval setting is changed, previously stored data are overwritten with new data.

2.2.2 STORING SETTING

There Five (5) storing modes as explained below:
No storing
Normal
Remote trigger
Event recording Event recording mode
Time specified
20 milliseconds
100 milliseconds
500 milliseconds
1 second
2 seconds
5 seconds
10 seconds
1 minute
10 minutes
No recording Data is plotted on the chart or displayed on the digital meter
or bargraph, but no data is stored in the CF Card.
Normal storing mode Recording is manually initiated and stopped. Data is con-
tinuously stored while the recording is on.
Remote trigger recording Data is automatically recorded while the external trigger
mode condition (analog or discrete input) is true.
The 73VR3100 detects an external event by trigger signal,
and stores preset number of samples (max. 1200 respec-
tively) before and after the moment of event.
Store at defined time Recording is automatically initiated and stopped at a
mode predefined time.
73VR31BLD USERS MANUAL EM-7397-C Rev.4 9
