User Manual

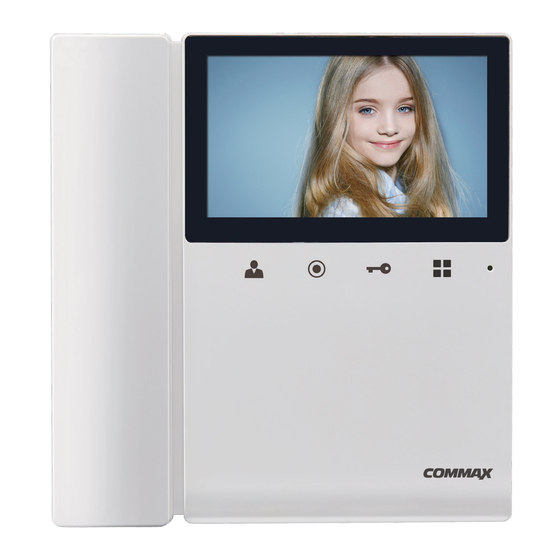

Color Video Door Phone CDV-43K
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax CDV-43K
Summary of Contents for Commax CDV-43K
- Page 1 User Manual Color Video Door Phone CDV-43K • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.
-
Page 2: Table Of Contents
Table of Contents 1. Warnings and Cautions................2 Part Names and Functions..............3 Contents ....................3 Wiring and Connection Instructions............4 Installation ....................Operation ......................5 Setting.....................6 Specifications..................7 1. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. -
Page 3: Part Names And Functions
Warning & Caution Please plug out the power Please don’t use several Please don’ t bend the power Please don’ t handle the power cable from the socket when products at the same time on cable excessively or it may cable with a wet hand. -
Page 4: Wiring And Connection Instructions
4. Wiring and Connection Instructions ▷ Polarity of interphone connector ▷ Polarity of the camera connector 1. Red: Talk (Audio) 1. Red: Talk (Audio) 2. Blue: GND 2. Blue: GND 3. Yellow: Power (+12V) 3. Yellow: Power (+14V) 4. White: Video 4. -
Page 5: Operation
6. Operation � Caution : Do not hold the handset at your ear when you press hook switch to switch call. 1. Calling of visitor The visitor Open the door The visitor’ s presses the image appears The door release function call button on A chime Dialog begins... -
Page 6: Setting
7. Settings •You can adjust DOOR VIDEO SET, UTILITY and check INFORMATION(model name &version) with (UP)△ / (DOWN)▽ button after pressing Menu button on the front of the product in video talk mode or stand-by monitoring. •Products settings need the following 4 buttons on the right of product. * Start Menu / Exit : MENU button * Select and in-put : SELECT (Interphonebutton) * Move up / Move right : △/▷(Open button) -
Page 7: Specifications
(2) SCREEN MODE : to set for screen ratio ① ZOOM: Zoon in(expansion) image maintaining actual ratio(4:3) is shown. (full of the screen) ② 4:3: Image of 4:3 ratio without expansion is shown.(This is actual ratio for camera) ③ WIDE: Full of the screen. Not actual ratio (4:3). Image is expanded according to LCD (WIDE LCD) ratio. - Page 8 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Web site : www.commax.com PM0743K00010 Printed In Korea / 2016.10.104...
