Congratulations on your purchase of the new JetForce!
The Robbe JetForce is a river jet boat with which the originals in America race breathtakingly on rivers. The en-
gines used are large-volume, turbocharged V8 engines or turbine drives. In order to be able to drive in extremely
shallow waters, a jet engine is used. This also ensures very high manoeuvrability.
The Robbe JetForce is equipped with a 25mm diameter jet drive driven by a 3515 brushless motor, which provides
the necessary power. A powerful 80A brushless controller is coupled to the receiver to form a 2-in-1 unit and the
ball-bearing steering servo is also built in. The JetForce is controlled by a 2-channel Colt remote control, which is
also included with the boat.
Please read this manual carefully before you start assembling the model.

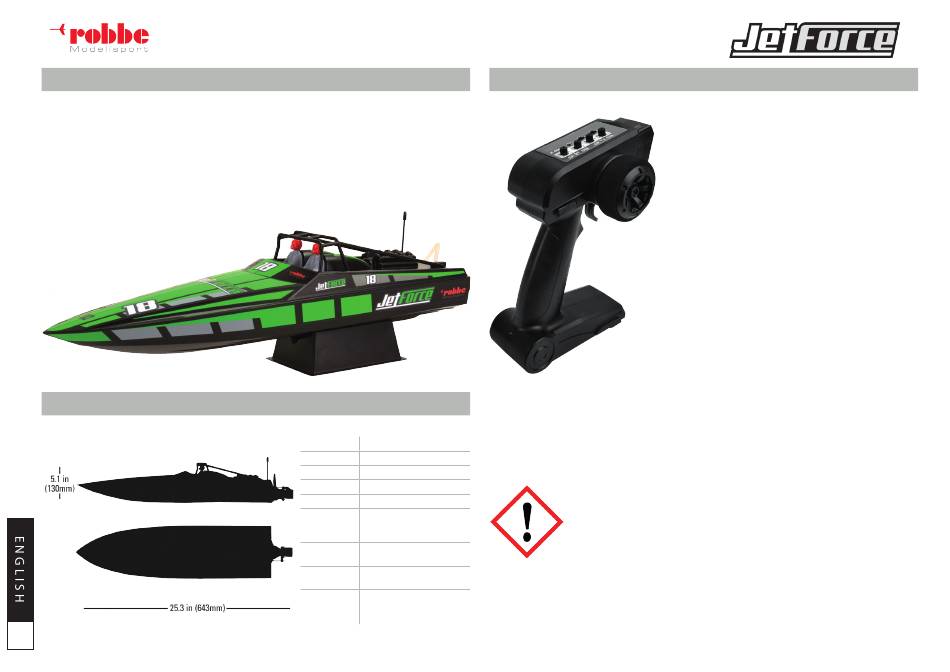

T E C H N I C A L D ATA / B O X C O N T E N T
4
Instructions and User Manual
P R E FA C E
Length 25 in (648mm)
Height 6.5 in (165mm)
Hull Material ABS
Transmitter 2,4GHZ (included)
Receiver 2,4GHZ (included)
2300Kv 14-Pole Brushless
Motor Outrunner Marine Motor,
33mm x 42mm (included)
80A Brushless Marine ESC
ESC
2-3S (included)
3KG, Plastic Gear Servo, WP,
Servo
23T (included)
4 AA batteries (sold separa-
Tip tely) are required to operate
the boat and transmitter
T R A N S M I T T E R C O N T R O L S
SI-2EE two-channel 2.4GHz two-in-one electronic ontrol set
Product introduction
SI-2EE is a versatile 2-in-1 2.4GHz electronic control kit for vehicle
models.Its receiver has built-in non-inductive brushless motor
governor and remote control receiver function, small size and high
integration.
Product specifications
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

The main function

•
2-channel transmitter with TRIM, DR and REV for TH and ST;
•
Receiver and electric adjustment, high integration and easy installation;
•
Integrated design, completely waterproof and dustproof, suitable for all kinds of climate;
•
Provides BEC output capability with an average 3A current;
•
Multiple protection measures such as low voltage protection and throttle signal loss protection.
CAUTION:
SI-2REE is a highly integrated and versatile automotive ESC with built-in non-inductive
brushless motor governor, BEC and 2-channel receiver functions. It needs to be used with
the matching motor if other types of motors are used. Be sure to follow the supply voltage,
maximum current and power mentioned in the manual. The unsuitable motor will cause
damage to the receiver.
The SI-2REE ESC has built-in BEC with a maximum of 3A, and its output voltage is 5.4V. When
the total current of the external servo or other electrical equipment exceeds the maximum
current, it will cause damage to the BEC.
It is forbidden to use a motor with a maximum current exceeding the maximum current of
the SI-2REE built-in ESC. It is forbidden to lock the motor for a long time, which may cause
damage to the motor or governor.
Transmitter model: SI-2TEE
Power supply range: 4.6V
Transmitting frequency: 2.4G (FHSS)
Transmit power: <100mW
Remote control distance: >120m
Power supply: 4 AA batteries
Adjustment method: knob adjustment
Weight: 205g (without battery)
Receiver model: SI-2REE
Forward: continuous current / peak current 80A/330A
Reverse: continuous current / peak current 80A/330A
Working voltage: 2-3S lithium battery
Mainly applicable model: ship model
Internal resistance (single bridge arm): Forward: 0.0009Ω,
Reverse: 0.0009Ω
Receiving frequency: 2.4G (FHSS)
Built-in BEC: 3A/5.4V (switching regulator mode)
Size and weight: 36/45/21mm / 40g
