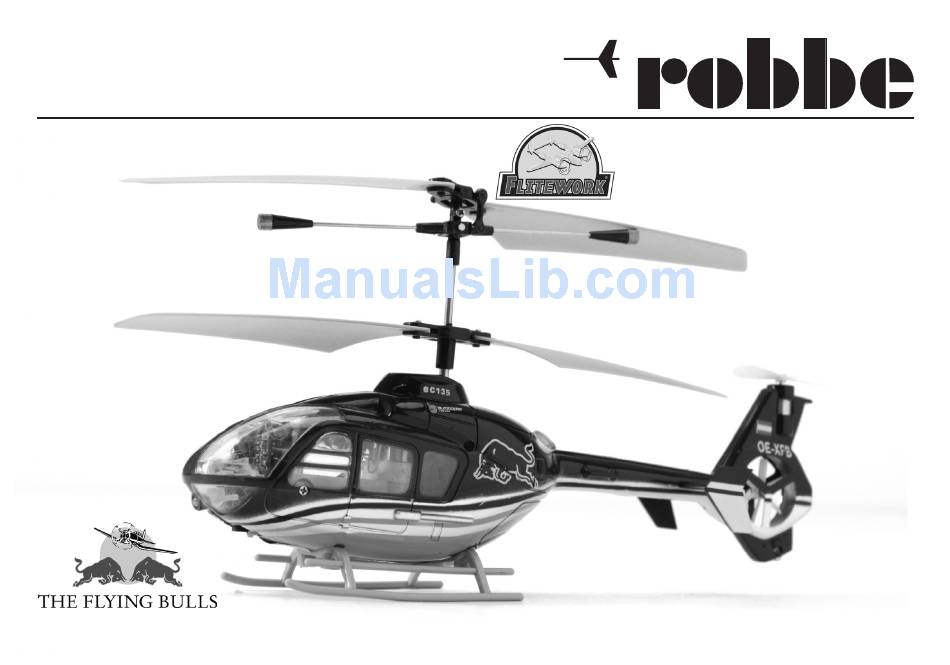

- Page 1 EC 135 Red Bull 2.4 GHz Operating Instructions FW001001...
-
Page 2: Table Of Contents
Building and Operating Instructions - EC135 Red Bull RTF 2.4 MHz No. FW001001 Explanation of specialist Contents Page terms: Explanation of specialist terms Contents Motor speed ("Throttle"): Introduction / Pre-flight checklist This controls the model's climb and descent. Safety Notes... -
Page 3: Introduction Pre-Flight Checklist
Helicopter of scale member of the FLYING BULLS fleet of fixed-wing aircraft and helicopters. appearance The robbe Flitework model of the EC135 enables you to make a start in the exciting world of Qualification: Beginner radio-controlled model helicopters, even if you have never previously flown such a model. Its... -
Page 4: Safety Notes
Either send the equipment to the robbe Service Department for checking, or replace the parts in Building and operating these models requires tech- Observe the instructions provided by question. - Page 5 No. FW001001 Operating the model Liability Exclusion • Never fly over or towards spectators or other pi- robbe Modellsport is unable to ensure that you ob- serve the assembly and operating instructions, or lots, and maintain a safe distance from them at all times. the conditions and methods used for installing, ope- • Never endanger people or animals.
- Page 6 Building and Operating Instructions - EC135 Red Bull RTF 2.4 MHz No. FW001001 Specification: Main rotor diameter: approx. 175 mm Tail rotor diameter: approx. 30 mm Length: approx. 195 mm Height: approx. 100 mm Weight: approx. 40 g Scale: 1:62...
- Page 7 Building and Operating Instructions - EC135 Red Bull RTF 2.4 MHz No. FW001001 Description of transmitter functions Inserting the dry cells This transmitter sends the control signals to the helicopter using the 2.4 GHz frequency band. Up to 75 different 2.4 GHz models can be in the air simultaneously without any interference occurring between them.
-
Page 8: Charging The Helicopter Battery
Building and Operating Instructions - EC135 Red Bull RTF 2.4 MHz No. FW001001 Charging the helicopter battery It is absolutely essential to give the flight battery a full charge before flying the helicopter for the first time. Two methods of charging are available: a) Charging using the USB lead (Fig. -
Page 9: Safety Notes Regarding Lipo Batteries
• The fluid electrolyte can also be removed from clothing and other objects by rinsing with copious amounts of water. LIABILITY EXCLUSION Since robbe Modellsport is not in a position to monitor the handling of these batteries, we expressly deny all liability and guarantee claims where the batteries have been incorrectly charged, discharged or handled. -
Page 10: Control Functions Of The Ec135 Red Bull Rtf
Building and Operating Instructions - EC135 Red Bull RTF 2.4 MHz No. FW001001 Control functions of the EC135 Red Bull RTF Climb and descent Forward and reverse Rotate left and right... -
Page 11: Preparations For The First Flight
Building and Operating Instructions - EC135 Red Bull RTF 2.4 MHz No. FW001001 Preparations for the first flight Ideally the first flight should take place in a large indoor space devoid of obstructions. If you have to fly the model in the open air, wait for a day with totally flat calm conditions. - Page 12 Modellsport Beteiligungs GmbH Gießen / HRB 5793 Managing Director: E. Dörr Errors and technical modifications reserved. - Copyright robbe-Modellsport 2013 Duplication and copying of the text, in whole or in part, is only permitted with the prior written approval of robbe-Modellsport GmbH & Co. KG...
