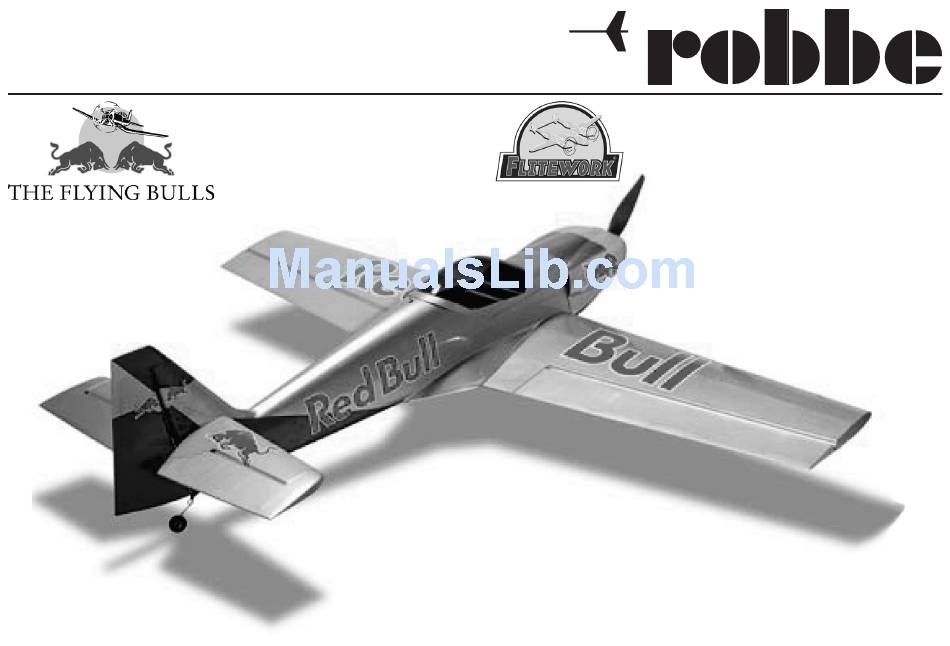

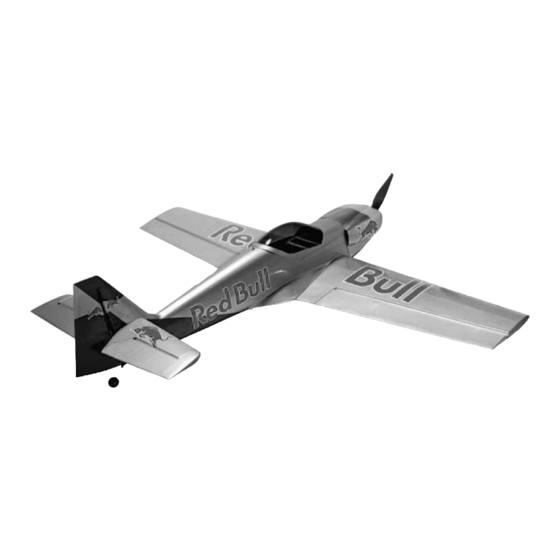

- Page 1 ZLIN 50 LX Red Bull 1600mm Building and Operating Instructions FW004004...
-
Page 2: Table Of Contents
Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 Contents Page Dear fellow-modeller, Congratulations on purchasing the robbe Flite- Contents work ZLIN 50LX Red Bull 1600 mm; this ver- Safety Notes 3, 4 sion is produced by one of the world's finest Important notes model manufacturers. -
Page 3: Safety Notes
Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 Be sure to read these Safety Notes before Aircraft propellers, and all moving Ensure that the equipment is protected from you assemble your model. Always keep to parts generally, constitute a constant dust, dirt and moisture. - Page 4 Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 Liability Exclusion Operating the model • Never fly over or towards spectators or other robbe Modellsport is unable to ensure that you pilots, and maintain a safe distance from them observe the assembly and operating instruc- at all times.
- Page 5 Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 Please check that your kit is complete before starting on assembly. Essential tools and adhesives: Models already part-assembled cannot be exchanged under gua- Cross-point screwdriver rantee. Twist drills: 1.5 mm, 2 mm and 4 mm ∅...
- Page 6 Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 RC functions: Elevator, rudder, aileron, throttle Essential accessories: T14SG-R7008SB 2.4 GHz FASSTest 1 x F8075 ® ROXXY POWER ZY ® 6S 4000 mAh 30C 1 x 6943...
- Page 7 Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 1. Installing the aileron Use a sharp balsa knife to remove the film cove- ring over the servo recess. Glue the hinges in the wing and aileron using cyano.
- Page 8 Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 3. Wing joiner Use Ropoxi 5-minute epoxy to glue the plywood Plywood wing joiner, 375 x 33 x 6 mm joiner in one wing panel. Allow the glue to set hard, then glue the two wing panels together, again using Ropoxi 5-minute epoxy.
-
Page 9: Installing The Tailwheel, Rudder And Elevators
Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 5. Installing the tailwheel, rudder and eleva- Glue the wire tailwheel unit (attached to the tail- wheel bracket) to the rudder using Ropoxi 5-mi- nute epoxy (see illustration). -
Page 10: Installing The Elevator Linkage
Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 7. Installing the elevator linkage Glue the horn in the elevator permanently using Ropoxi 5-minute epoxy. Slip the elevator pushrod through the opening in the fuselage, and install it as shown. - Page 11 Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 9. Installing the servos Elevator pushrod Install the two F1612 servos in the mounting 2 ∅ x 770 mm plate as shown in the illustration. Set the servos Elevator to centre (neutral) from the transmitter.
- Page 12 Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 11. Installing the motor Screw the motor mount to the fuselage, then fix the 4 I.D. x 10 mm O.D. motor assembly to the motor bulkhead as shown.
- Page 13 Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 13. Cowl and canopy Slide the canopy locating lugs into the corre- sponding slot in the motor bulkhead. The canopy is locked in place using the canopy latch instal- led in the fuselage turtle deck.
-
Page 14: Test-Flying, Flying Notes
Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 Test-flying, flying notes - Check that there are no loose objects, such as rags, tools or similar, in front of model, as they could be sucked into the propeller. -
Page 15: Replacement Parts List
Building and Operating Instructions - ZLIN 50LX Red Bull 1600mm ARF No. FW004004 Replacement Parts List - ZLIN 50 Red Bull 1600mm ARF Article description FW0040041 Cockpit FW004014 Cowl FW004024 Canopy FW004034 Undercarriage, complete FW004044 Wing set FW004054 Fuselage set... - Page 16 Modellsport Beteiligungs GmbH Gießen / HRB 5793 · Managing Director: E. Dörr Errors and technical modifications reserved. - Copyright robbe-Modellsport 2013 Duplication and copying of the text, in whole or in part, is only permitted with the prior written approval of robbe-Modellsport GmbH & Co. KG...
