CP Plus Cosmic User Manual page 89

Multiple cast IP:
235.8.8.36 Multiple cast
PORT: 3666.
After you logged in the Web, the Web can automatically get multiple cast address and add it
to the multiple cast groups. You can enable real-time monitor function to view the view.
Please note multiple cast function applies to special series only.
Register
2.14.1.10
This function allows the device to auto register to the proxy you specified. In this way, you
can use the client-end to access the DVR etc. via the proxy. Here the proxy has a switch
function. In the network service, device supports the server address of IPv4 or domain.
Please follow the steps listed below to use this function. Please set proxy server address,
port, and sub-device name at the device-end. Please enable the auto register function, the
device can auto register to the proxy server.

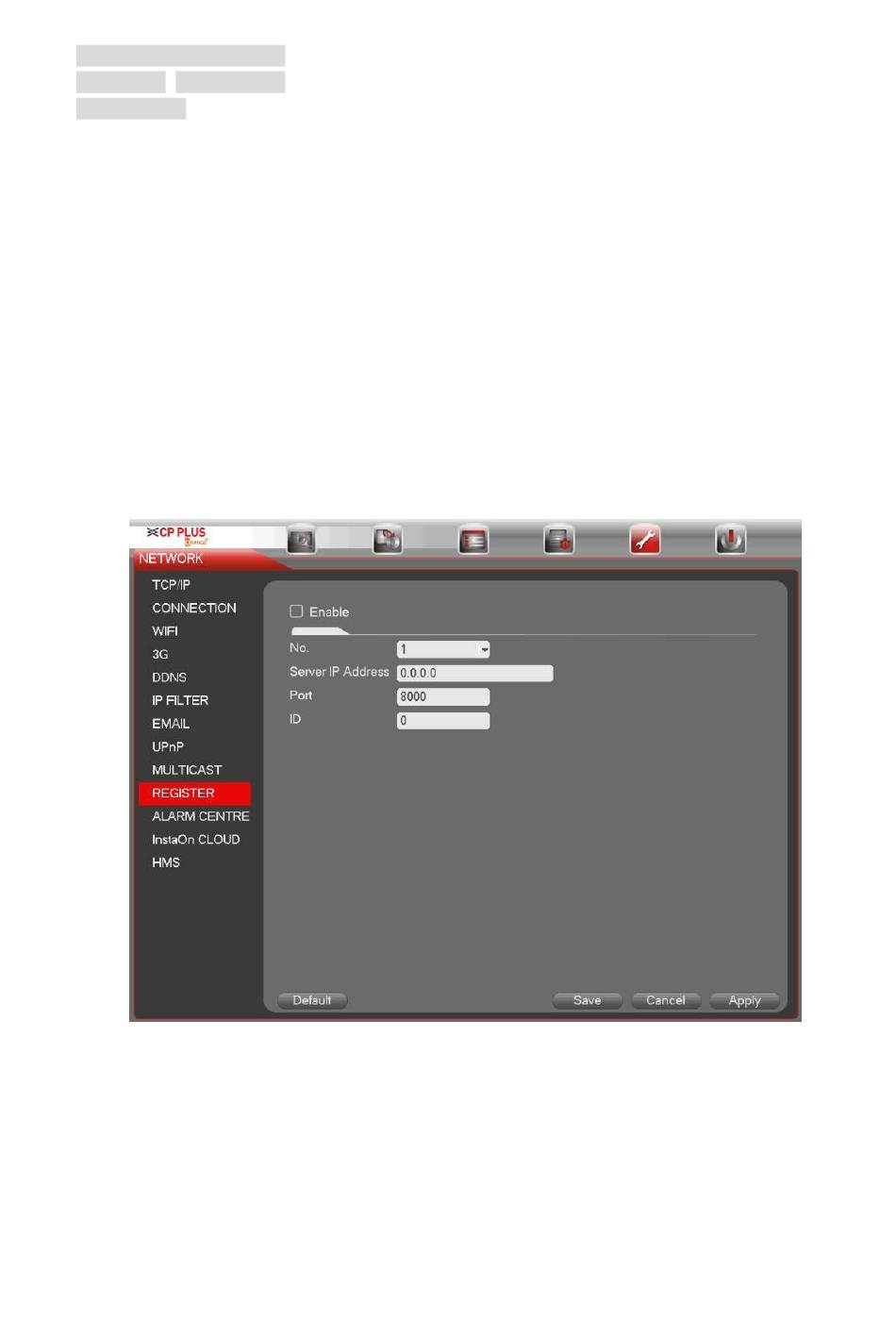

1) The setup interface is shown as in Figure
2-92. Important
Do not input network default port such as TCP port number.
Figure 2-92
2) The proxy server software developed from the SDK. Please open the software and input
the global setup. Please make sure the auto connection port here is the same as the port you
set in the previous step.
3) Now you can add device. Please do not input default port number such as the TCP port in
the mapping port number. The device ID here shall be the same with the ID you input in
Figure 2-92. Click Add button to complete the setup.
84
