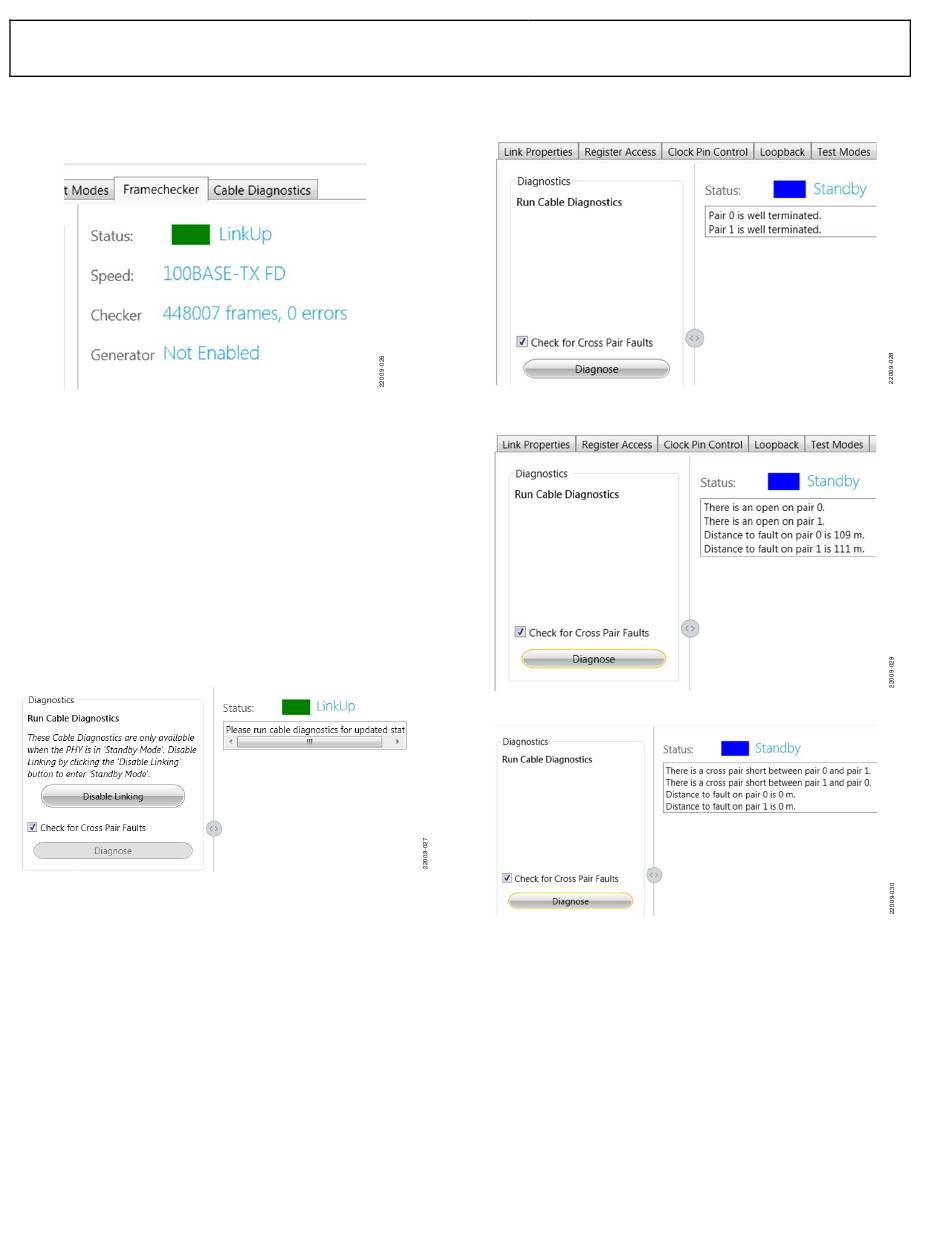

The frame checker information displayed on the screen
accumulates the number of frames sent and shows the number
of errors observed (see Figure 26).
Figure 26. Frame Generator Status and Frame Checker Result

CABLE DIAGNOSTICS TAB

The cable diagnostic feature allows the user to diagnose issues
with the link. Various features within the device are available
when the link is established, which measure the quality of the
link using features such as the mean squared error (MSE) level
and estimated cable length. These measurements are displayed
in the main Link Properties tab.
The features in the Cable Diagnostics tab, see Figure 27, are
available to run when the link is disabled, such as checking for
short circuits, checking for open circuits, and identifying the
distance to the first fault (see Figure 29). The LINK_EN bit
must be clear to run these checks.
Figure 27. Cable Diagnostics Configuration with Link Up
EVAL-ADIN1200FMCZ
Click the Disable Linking button to set the LINK_EN bit to 0
to allow diagnostics to be run (see Figure 28 through Figure 30).
Figure 28. Cable Diagnostics Configuration When Link Is Disabled with Cable
Figure 29. Cable Diagnostics Configuration with Cable Open
Figure 30. Cable Diagnostics Configuration with Cable Crossed
Rev. 0 | Page 14 of 29
User Guide
Connected to Remote PHY
